Canister Vent Valve: Testing and Inspection

CANISTER VENT (CV) SOLENOID VALVE INSPECTION [MZR 2.0, MZR 2.5]

Except for Mexico

Airflow inspection

1. Remove the battery cover. Removal and Replacement

2. Disconnect the negative battery cable. Removal and Replacement

3. Remove the CV solenoid valve. Service and Repair

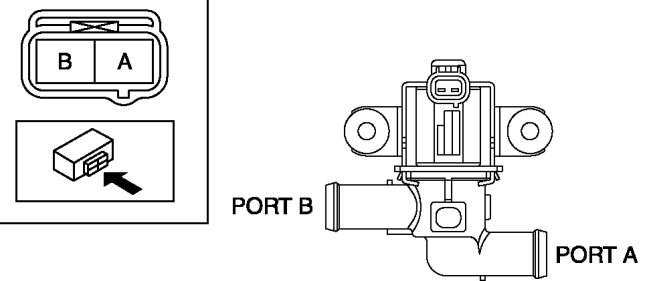

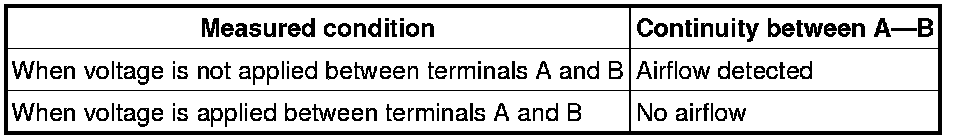

4. Inspect airflow between the ports under the following conditions.










- If not as specified, replace the CV solenoid valve. Service and Repair
