Emission System Diagram
Emission System Diagram
EMISSION SYSTEM DIAGRAM [MZR 2.0, MZR 2.5]

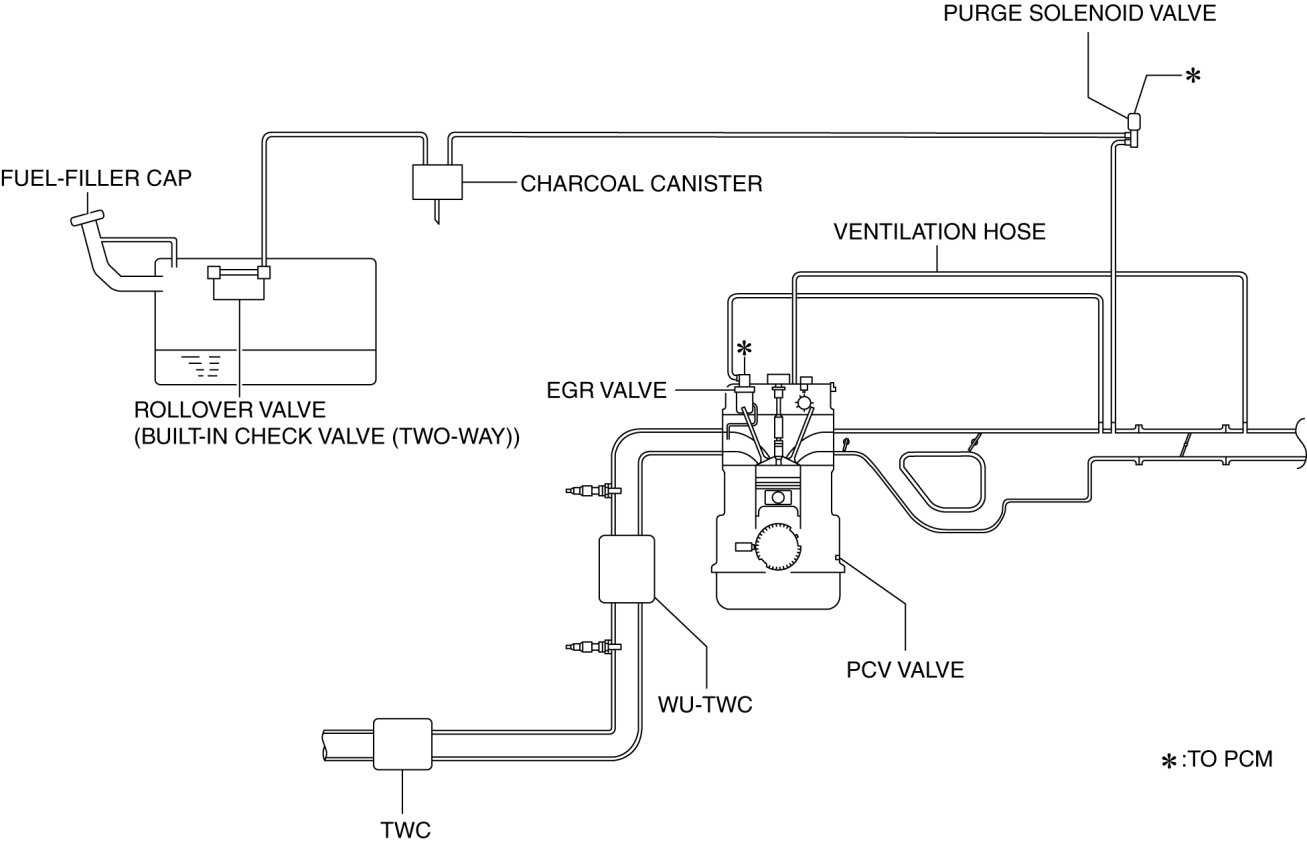

Except for Mexico

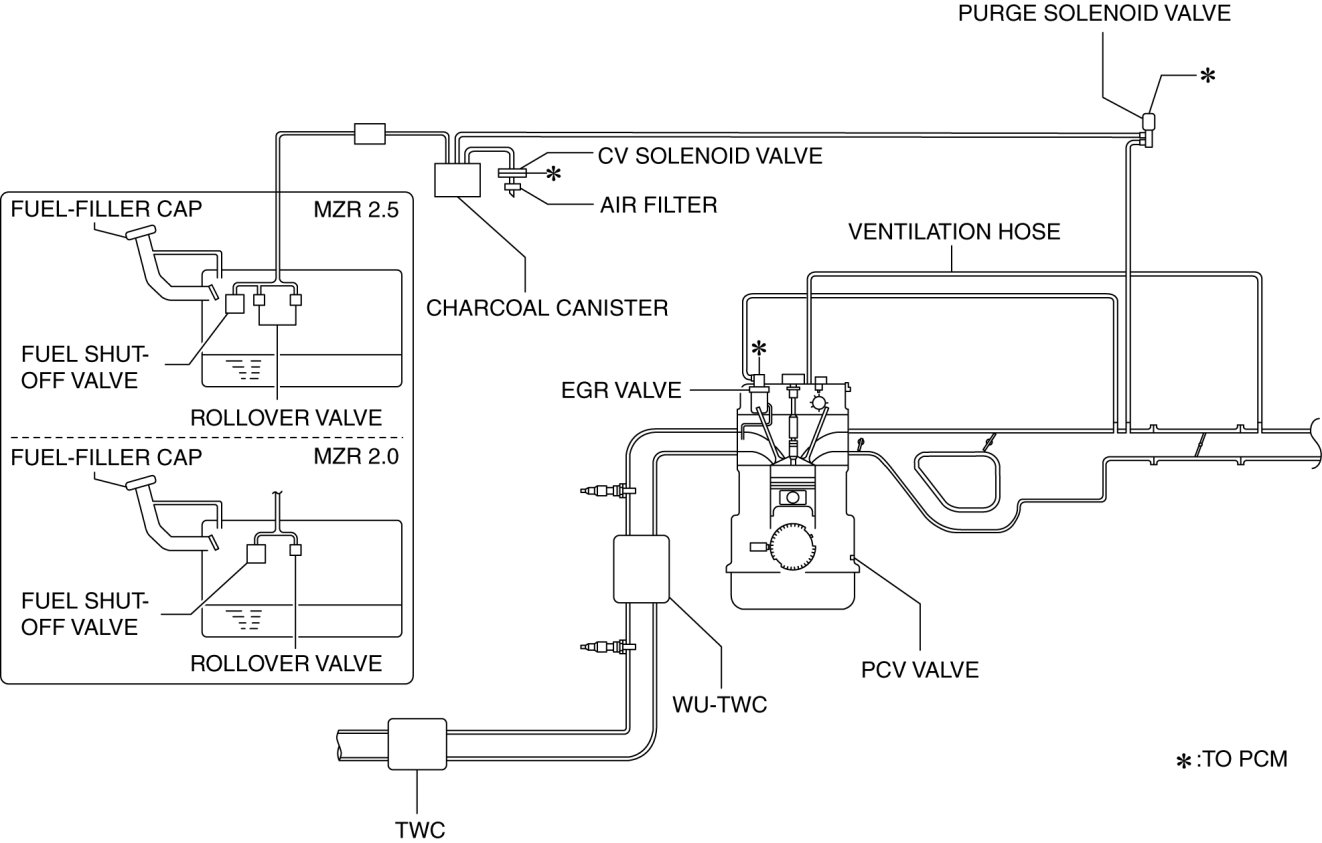

Mexico
