Air Temperature Sensor ( Ambient / Intake ): Testing and Inspection

INTAKE AIR TEMPERATURE (IAT) SENSOR INSPECTION [MZR 2.0, MZR 2.5]

Resistance Inspection

NOTE:
- Because the IAT sensor is integrated in the MAF sensor, replacing the IAT sensor includes replacement of the MAF/IAT sensor.

1. Remove the battery cover. Removal and Replacement

2. Disconnect the negative battery cable. Removal and Replacement

3. Disconnect the MAF/IAT sensor connector.

4. Measure the resistance between MAF/IAT sensor terminals D and E.






- If not as specified, replace the MAF/IAT sensor. Service and Repair

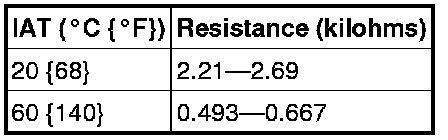

Specification
