Network Test [Multiplex Communication System]

NETWORK TEST [MULTIPLEX COMMUNICATION SYSTEM]

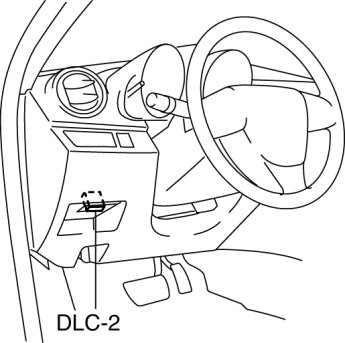

1. Connect the M-MDS (IDS) to the DLC-2.






2. After the vehicle is identified, select the "NETWORK TEST" from the initialization screen of the IDS.

3. Verify the unit with a communication error according to the directions on the screen.
