System Wiring Diagram





SYSTEM WIRING DIAGRAM

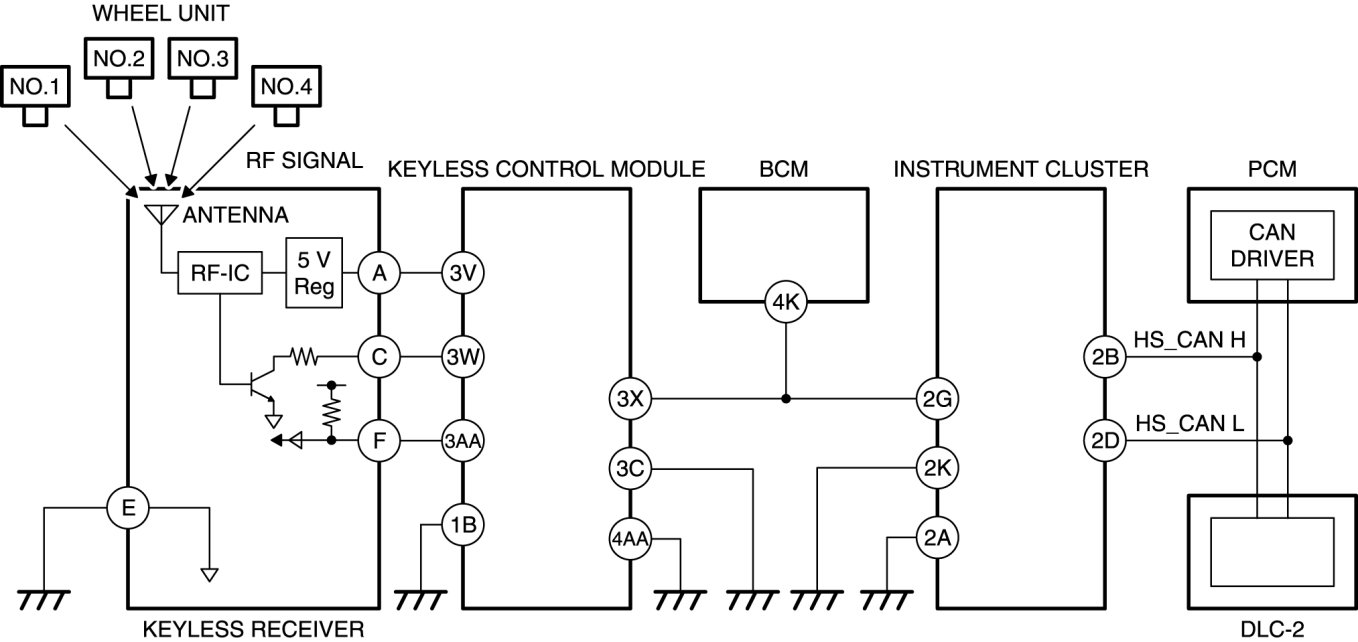

Vehicles Without Advanced Keyless Entry And Push Button Start System

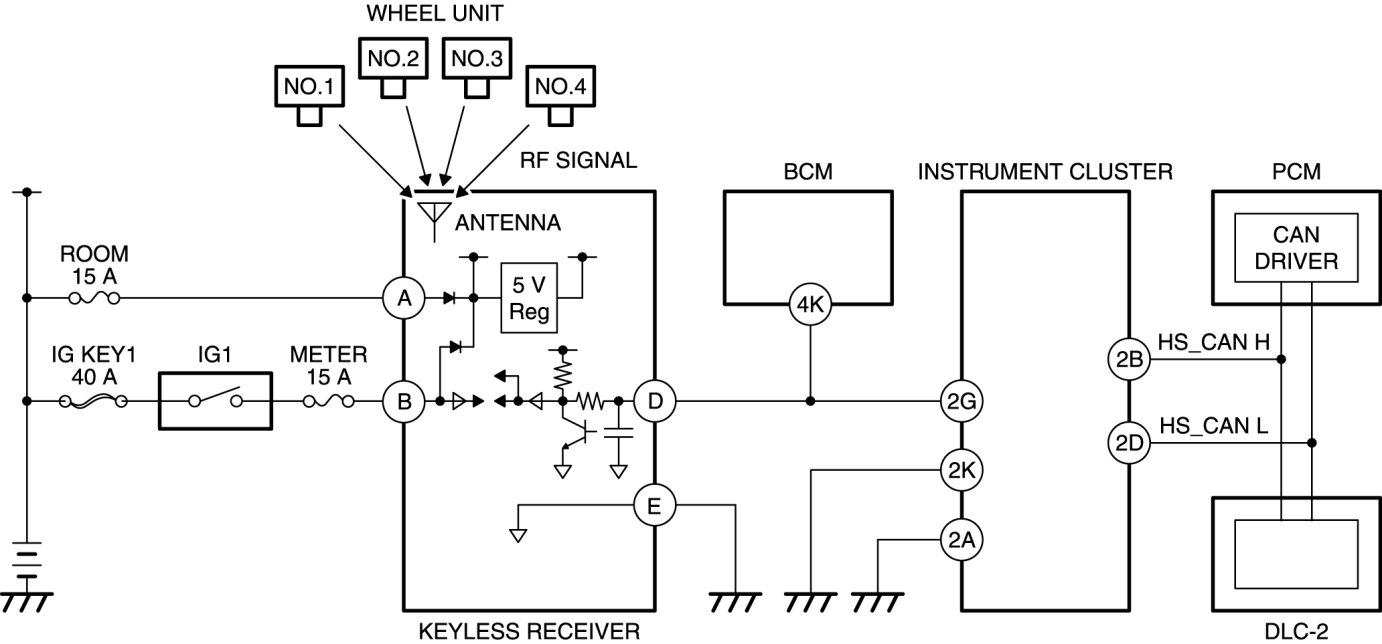

Vehicles With Advanced Keyless Entry And Push Button Start System
