Parking/Front Side Marker/Front Turn Light Bulb Removal/Installation

PARKING/FRONT SIDE MARKER/FRONT TURN LIGHT BULB REMOVAL/INSTALLATION

1. Disconnect the negative battery cable. Removal and Replacement Removal and Replacement Removal and Replacement

2. Slightly bend back the front mudguard. Service and Repair

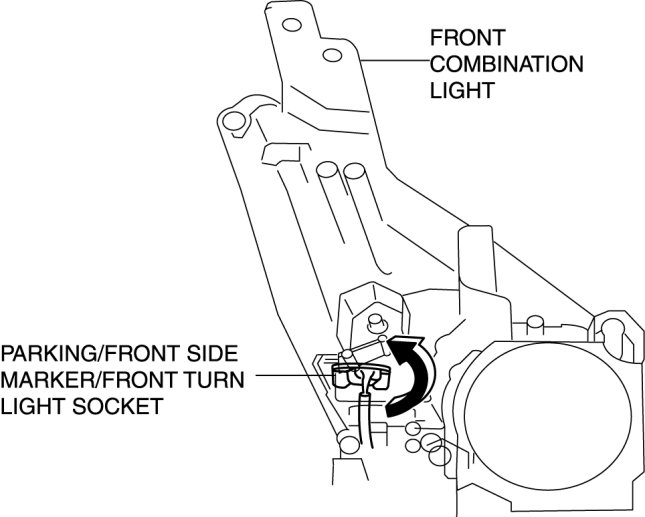

3. Rotate the parking/front side marker/front turn light socket in the direction of the arrow shown in the figure.

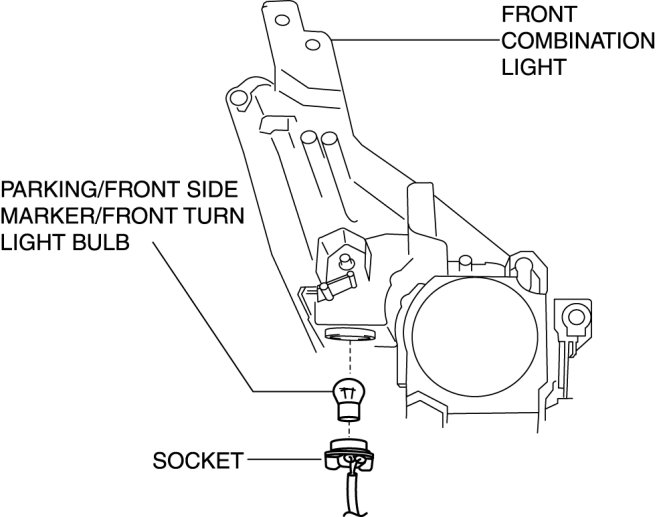

4. Remove the parking/front side marker/front turn light bulb.






5. Install in the reverse order of removal.
