No. 5 Auto Leveling Does Not Adjust Optical Axis Of The Headlights For Vehicle Posture

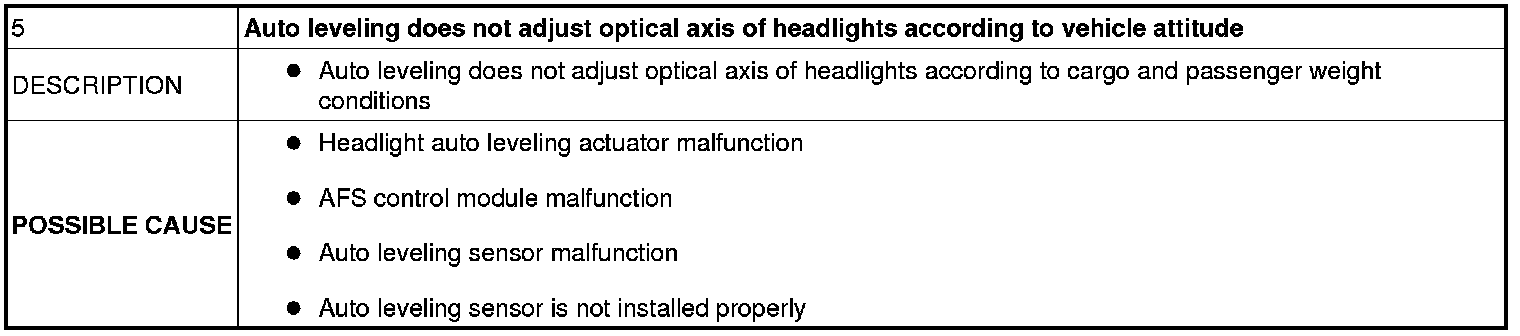

No.5 AUTO LEVELING DOES NOT ADJUST OPTICAL AXIS OF THE HEADLIGHTS FOR VEHICLE POSTURE [AFS (ADAPTIVE FRONT LIGHTING SYSTEM)]

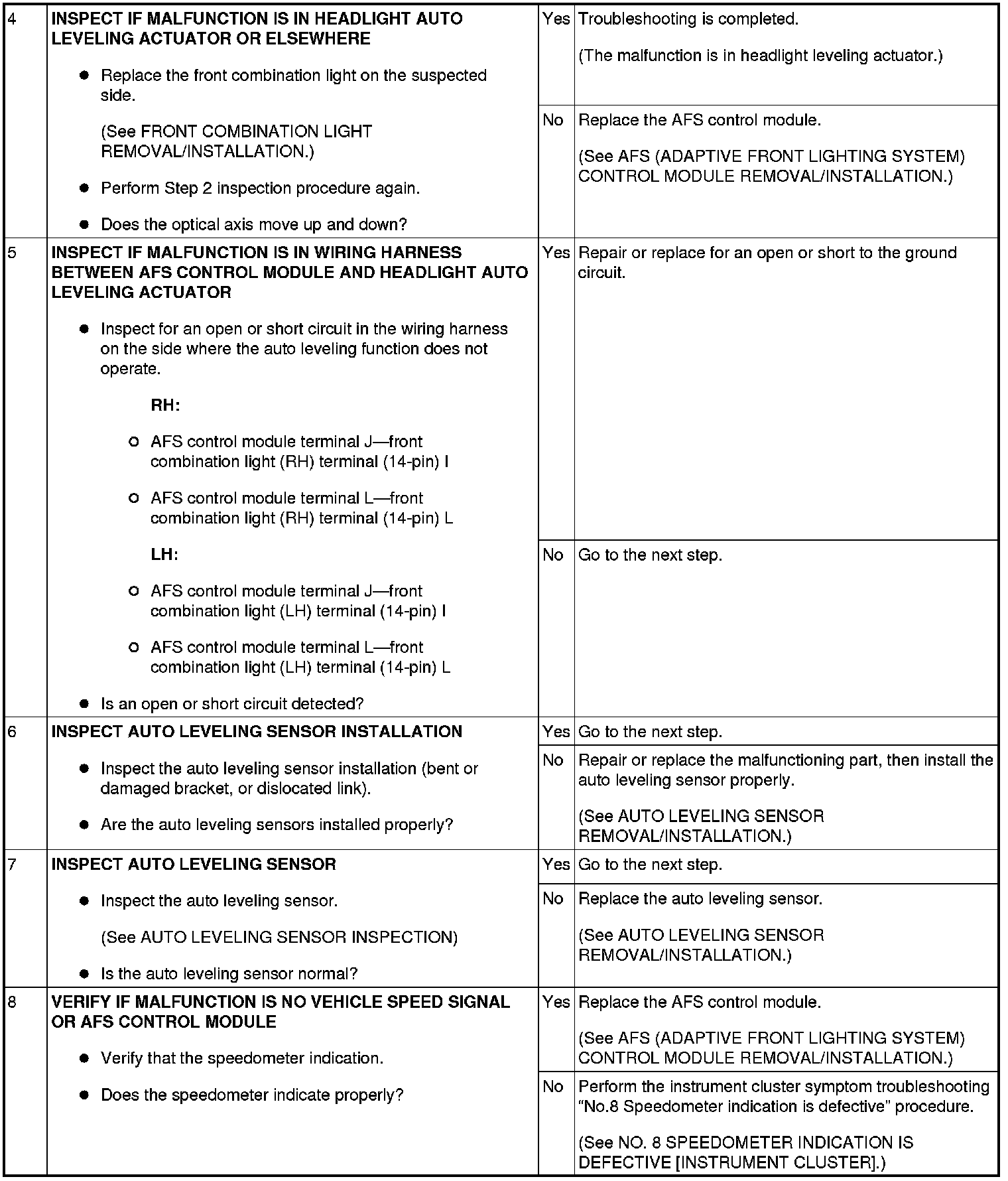

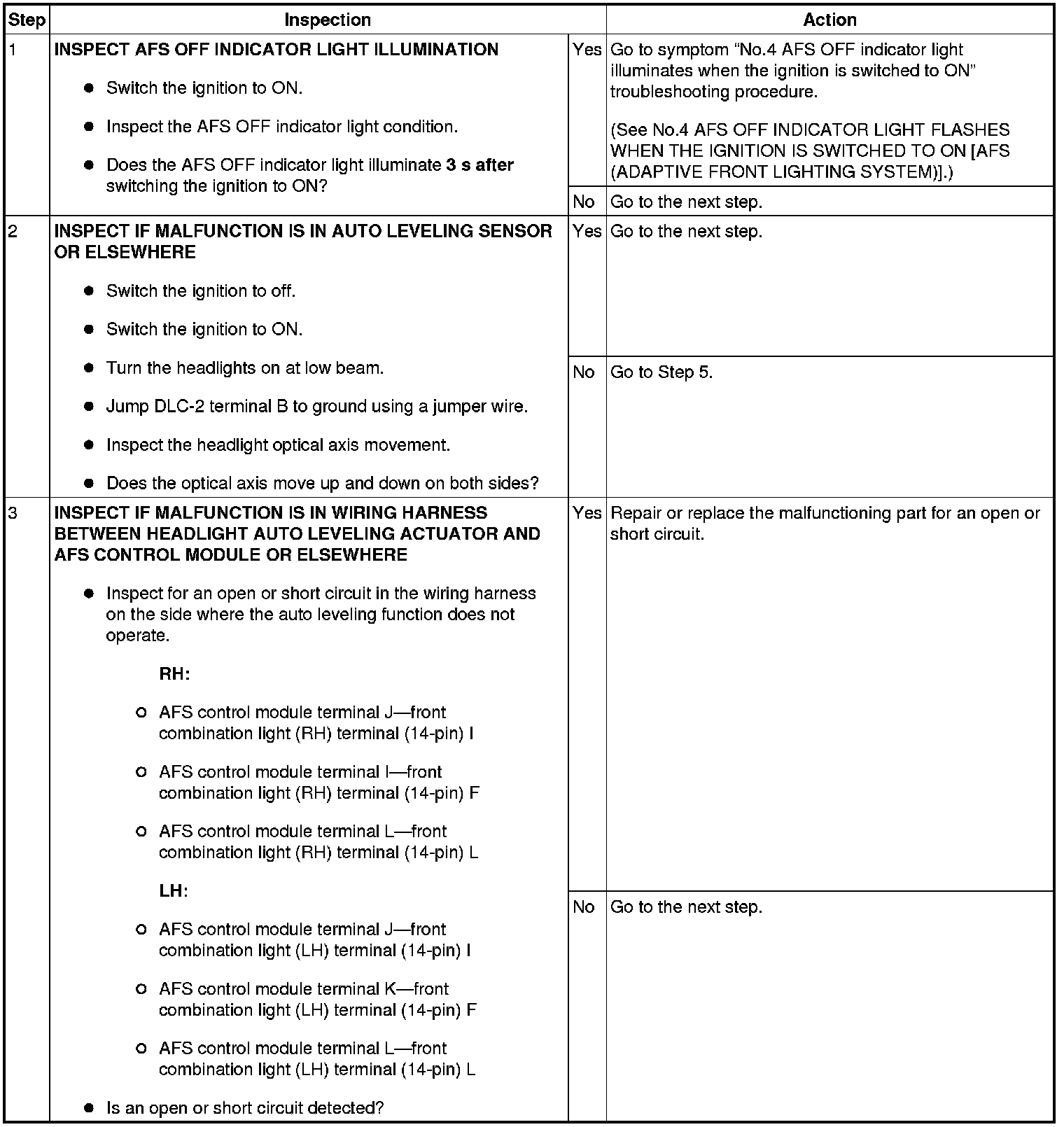

Diagnostic Procedure
