No. 4 AFS OFF Indicator Light Flashes When The Ignition Is Switched To ON

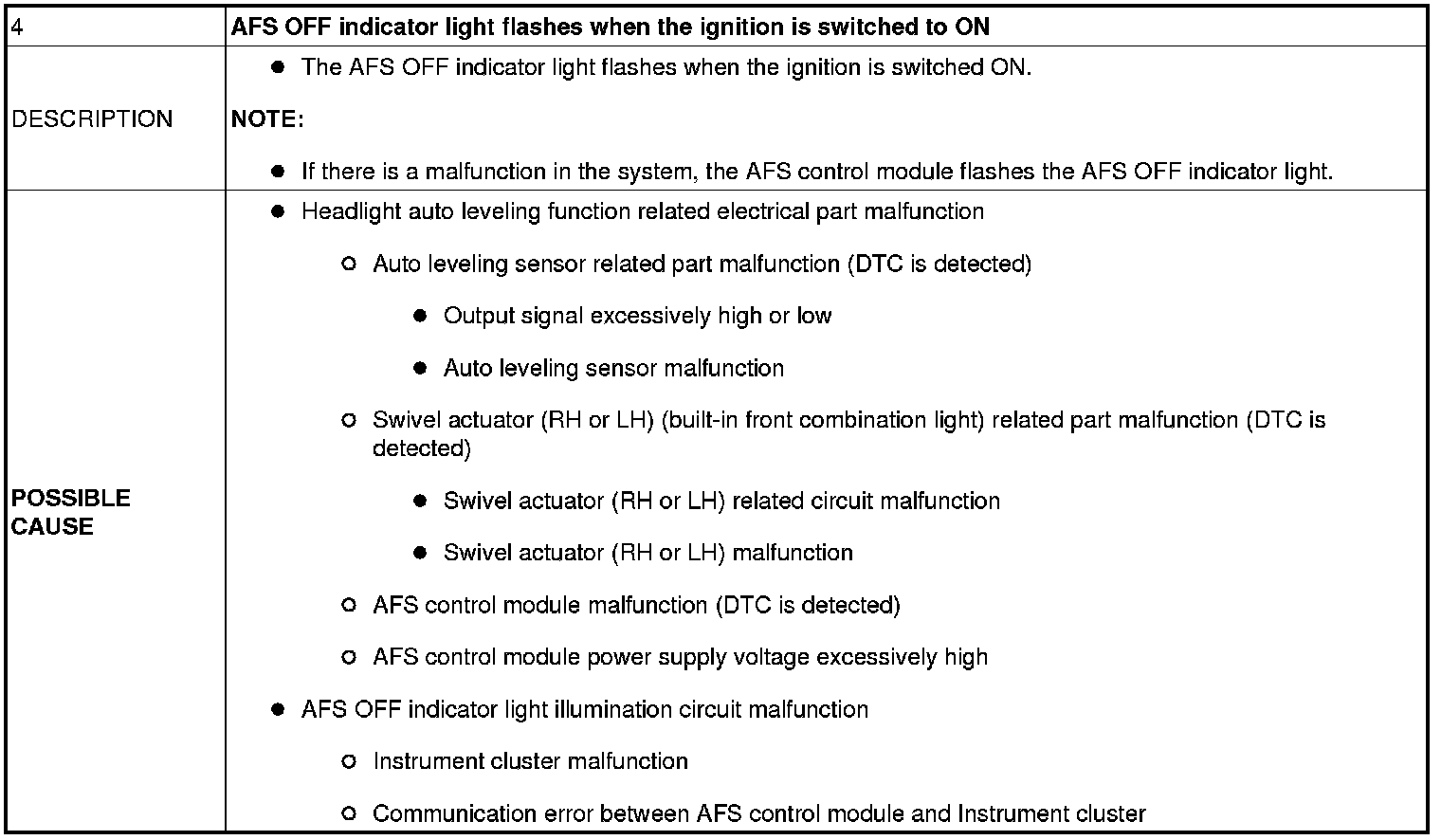

No.4 AFS OFF INDICATOR LIGHT FLASHES WHEN THE IGNITION IS SWITCHED TO ON [AFS (ADAPTIVE FRONT LIGHTING SYSTEM)]

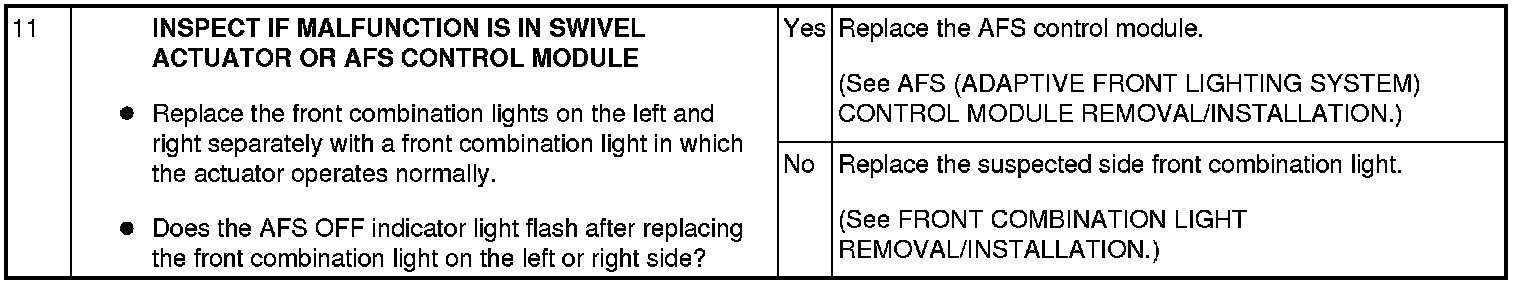

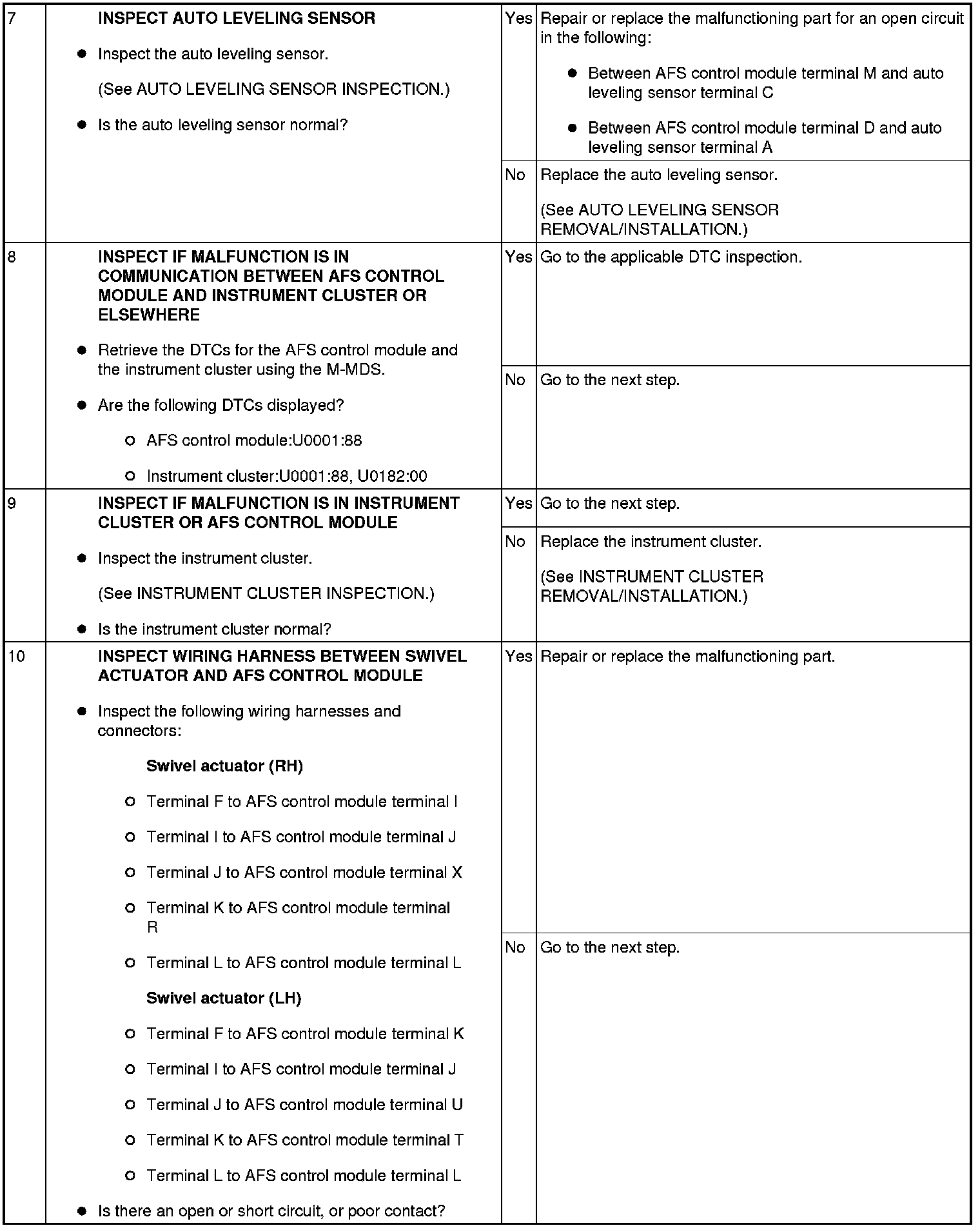

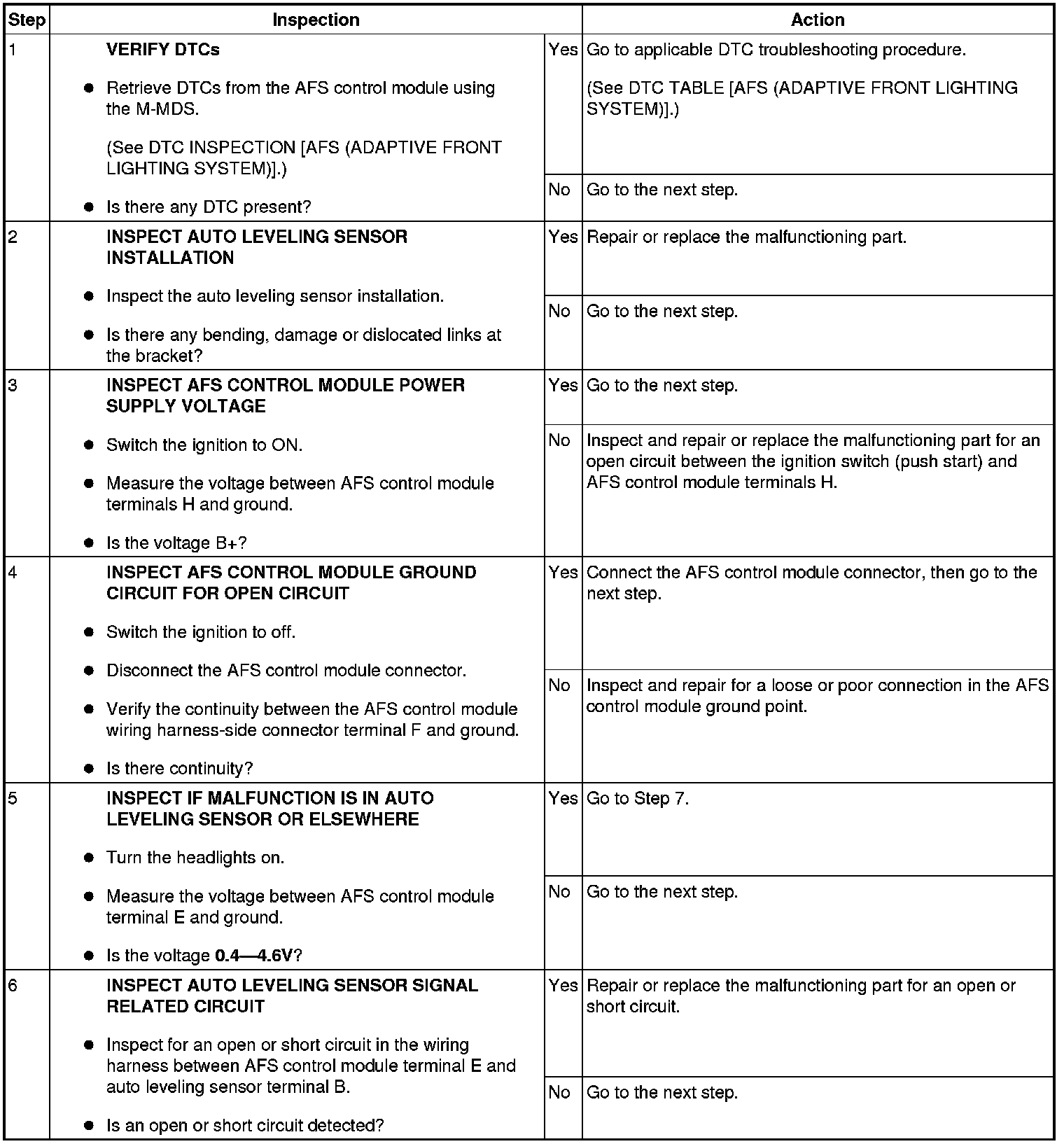

Diagnostic Procedure
