No. 3 AFS (Adaptive Front Lighting System) Operates When Operating AFS OFF Switch

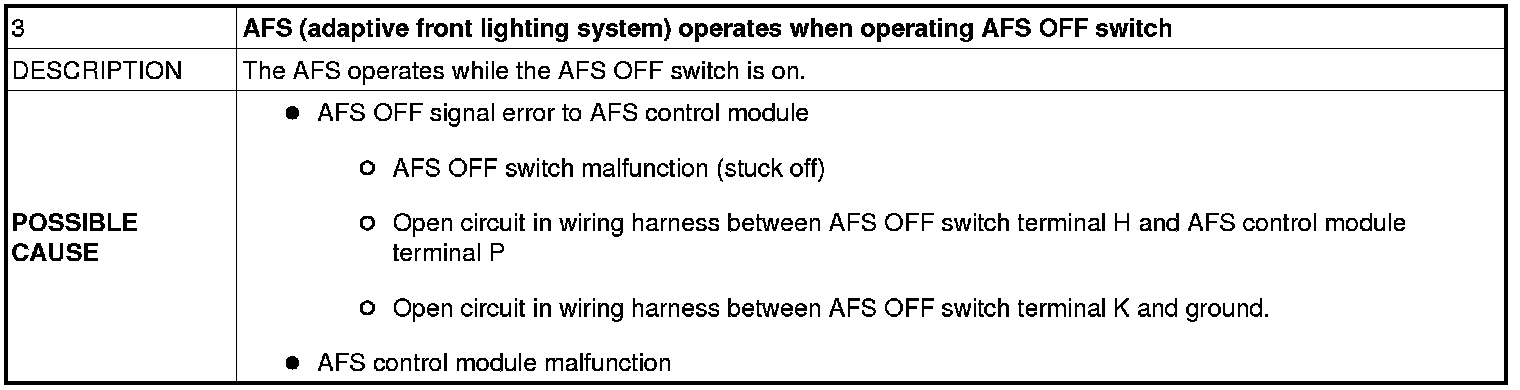

No.3 AFS (ADAPTIVE FRONT LIGHTING SYSTEM) OPERATES WHEN OPERATING AFS OFF SWITCH [AFS (ADAPTIVE FRONT LIGHTING SYSTEM)]

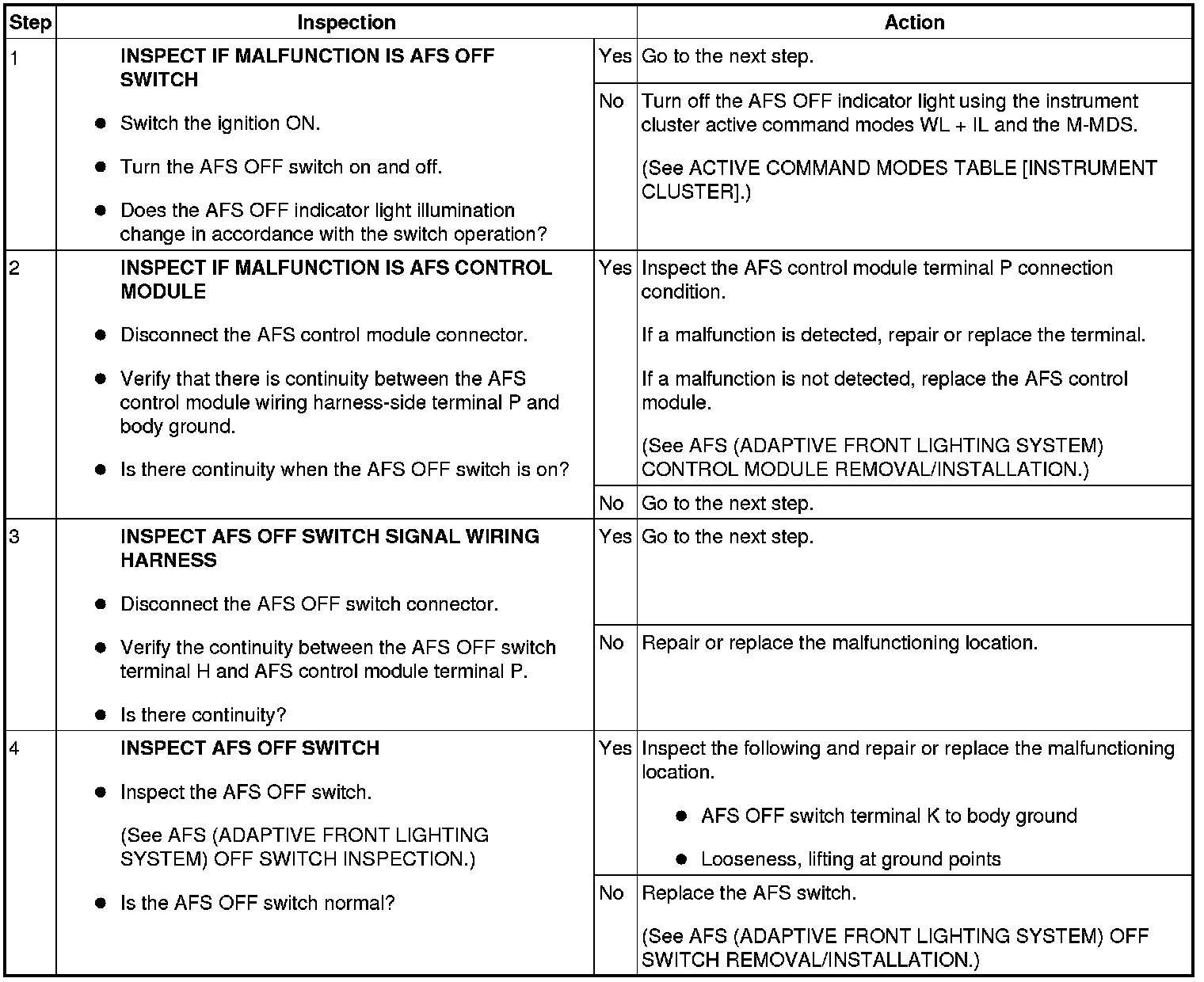

Diagnostic Procedure
