No. 2 AFS (Adaptive Front Lighting System) Does Not Operate In The Left And Right Directions

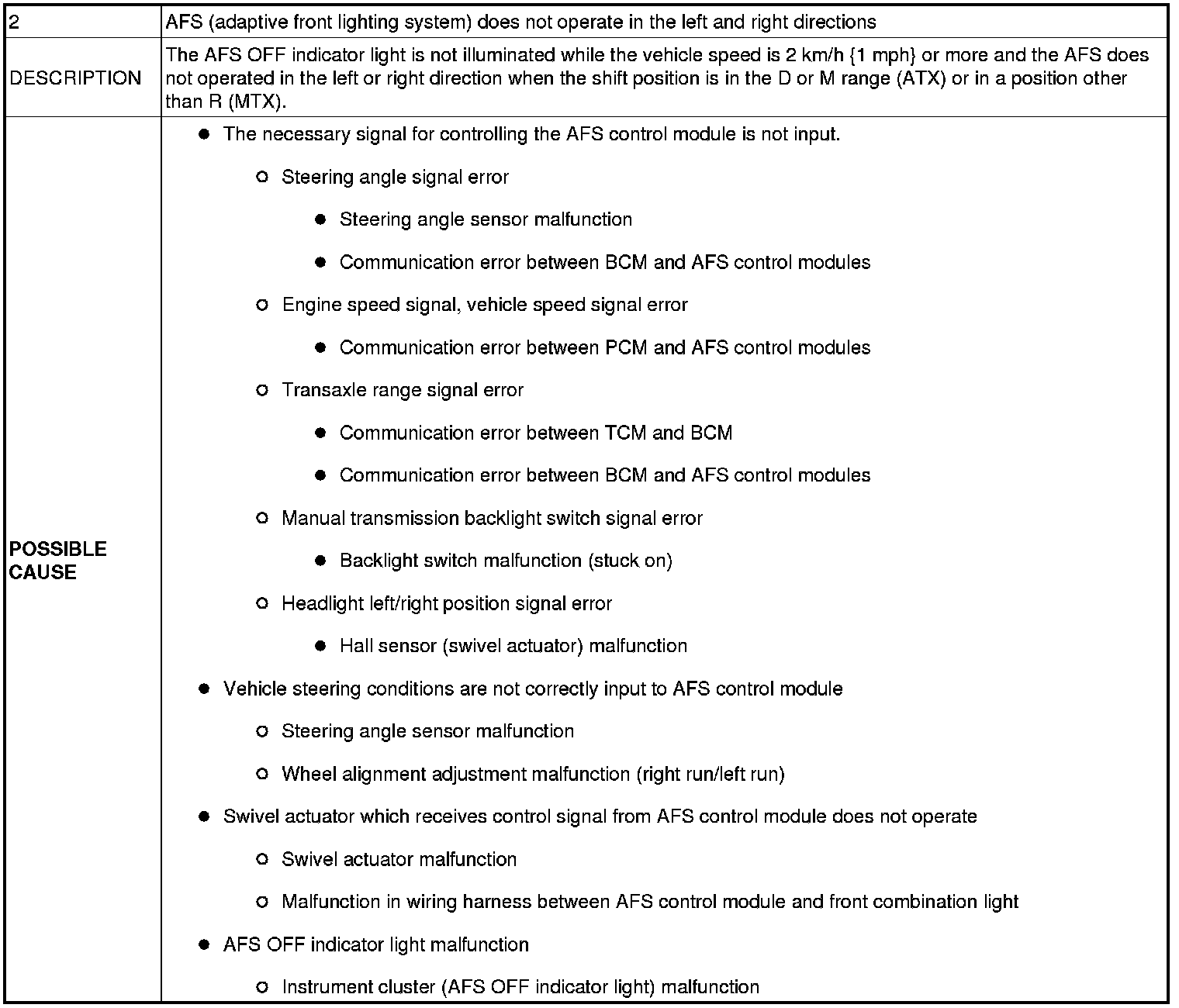

No.2 AFS (ADAPTIVE FRONT LIGHTING SYSTEM) DOES NOT OPERATE IN THE LEFT AND RIGHT DIRECTIONS [AFS (ADAPTIVE FRONT LIGHTING SYSTEM)]

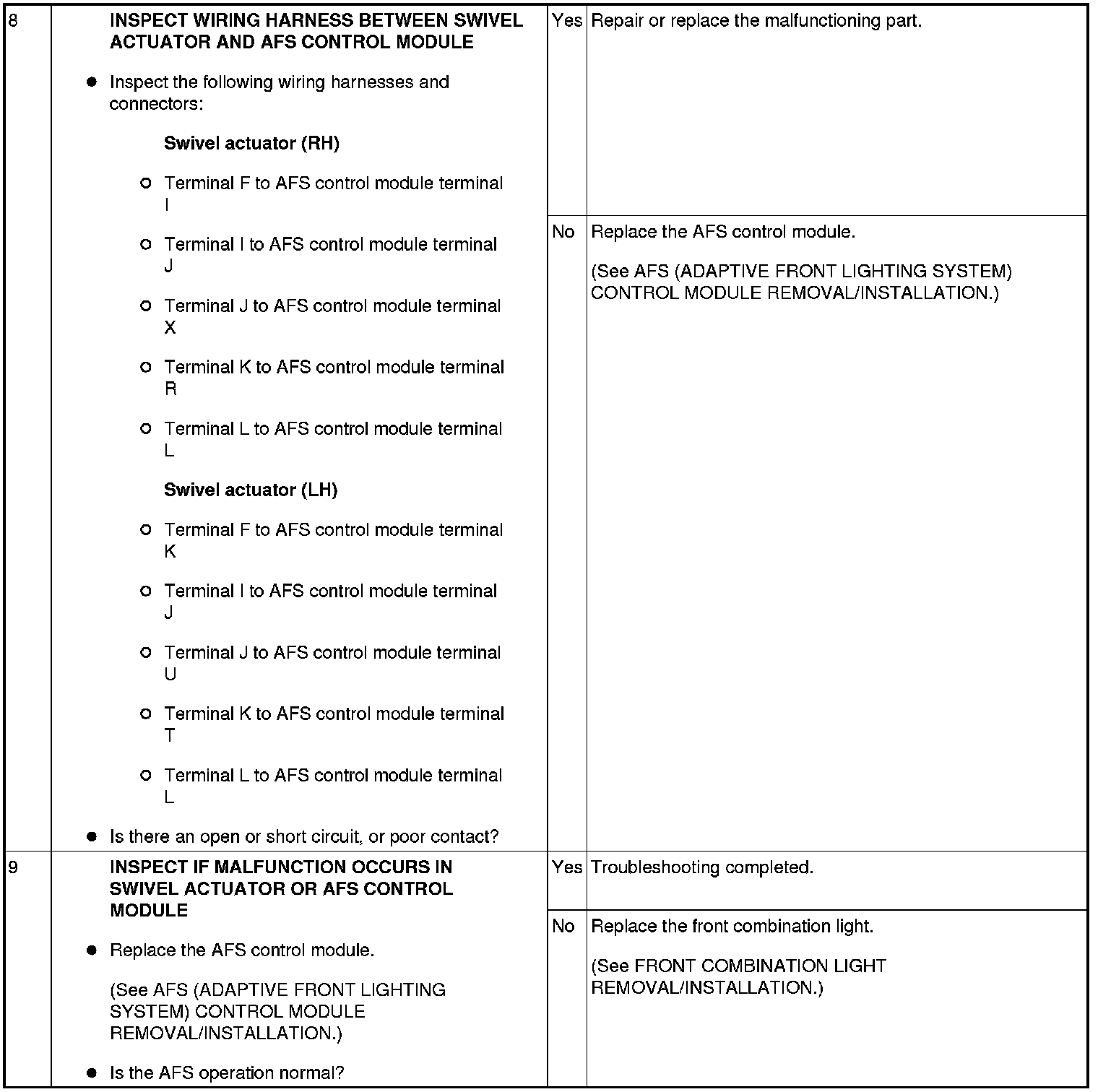

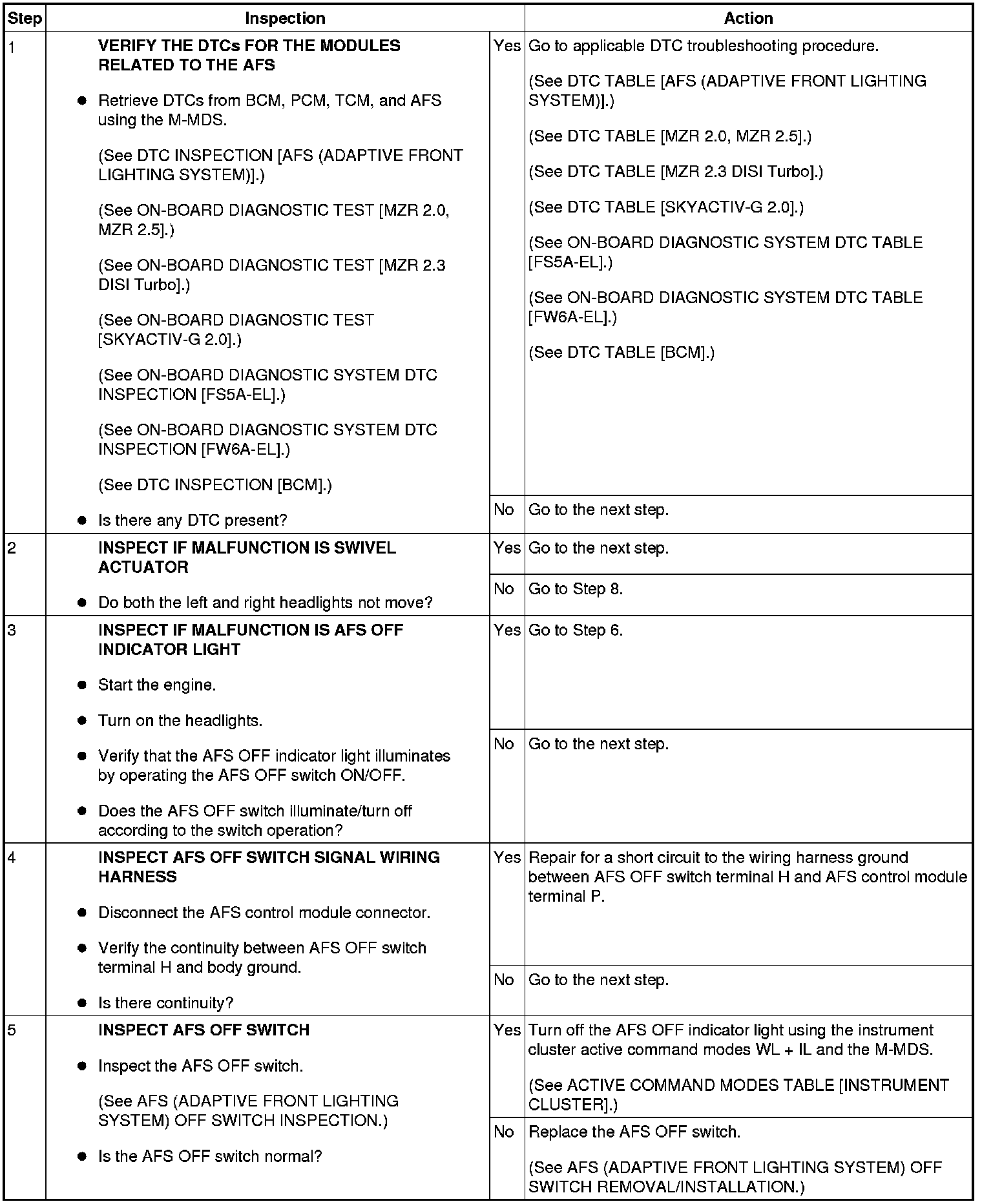

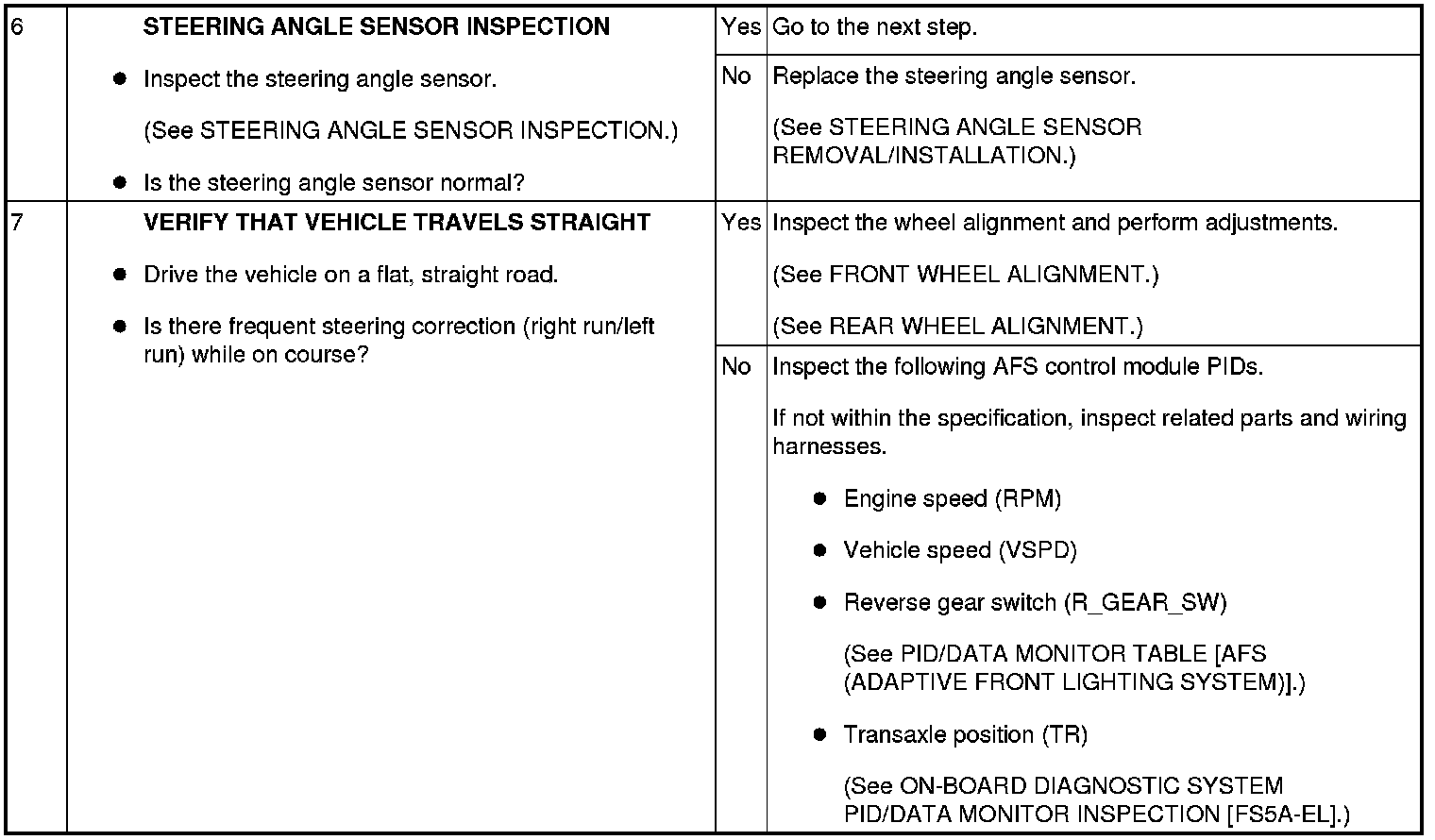

Diagnostic Procedure
