Home >> Mazda >> 2012 >> 3 L4-2.0L (MZR) >> Repair and Diagnosis >> Lighting and Horns >> Headlamp >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> No. 1 AFS OFF Indicator Light Illuminates Continuously

No. 1 AFS OFF Indicator Light Illuminates Continuously

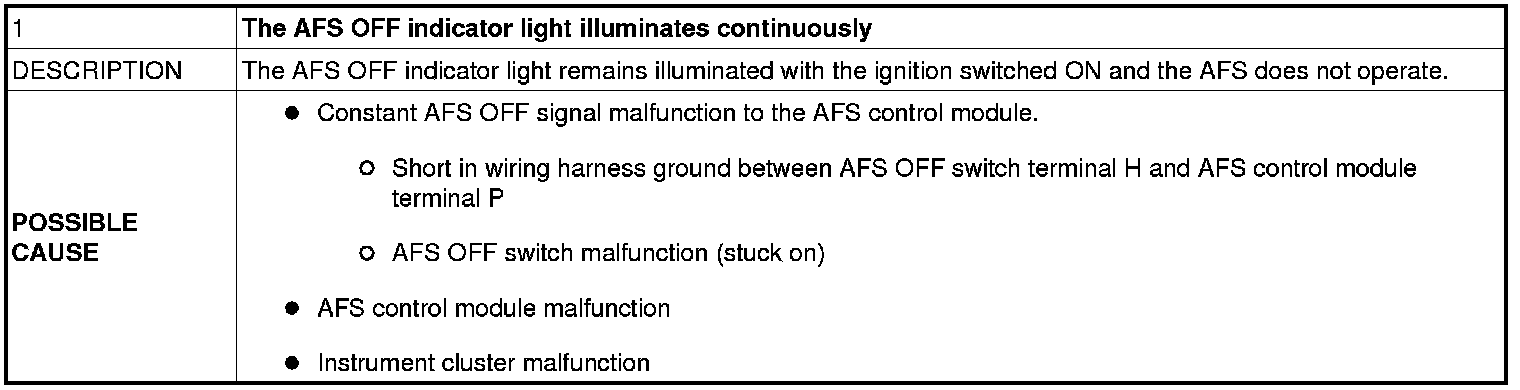

No.1 AFS OFF INDICATOR LIGHT ILLUMINATES CONTINUOUSLY [AFS (ADAPTIVE FRONT LIGHTING SYSTEM)]

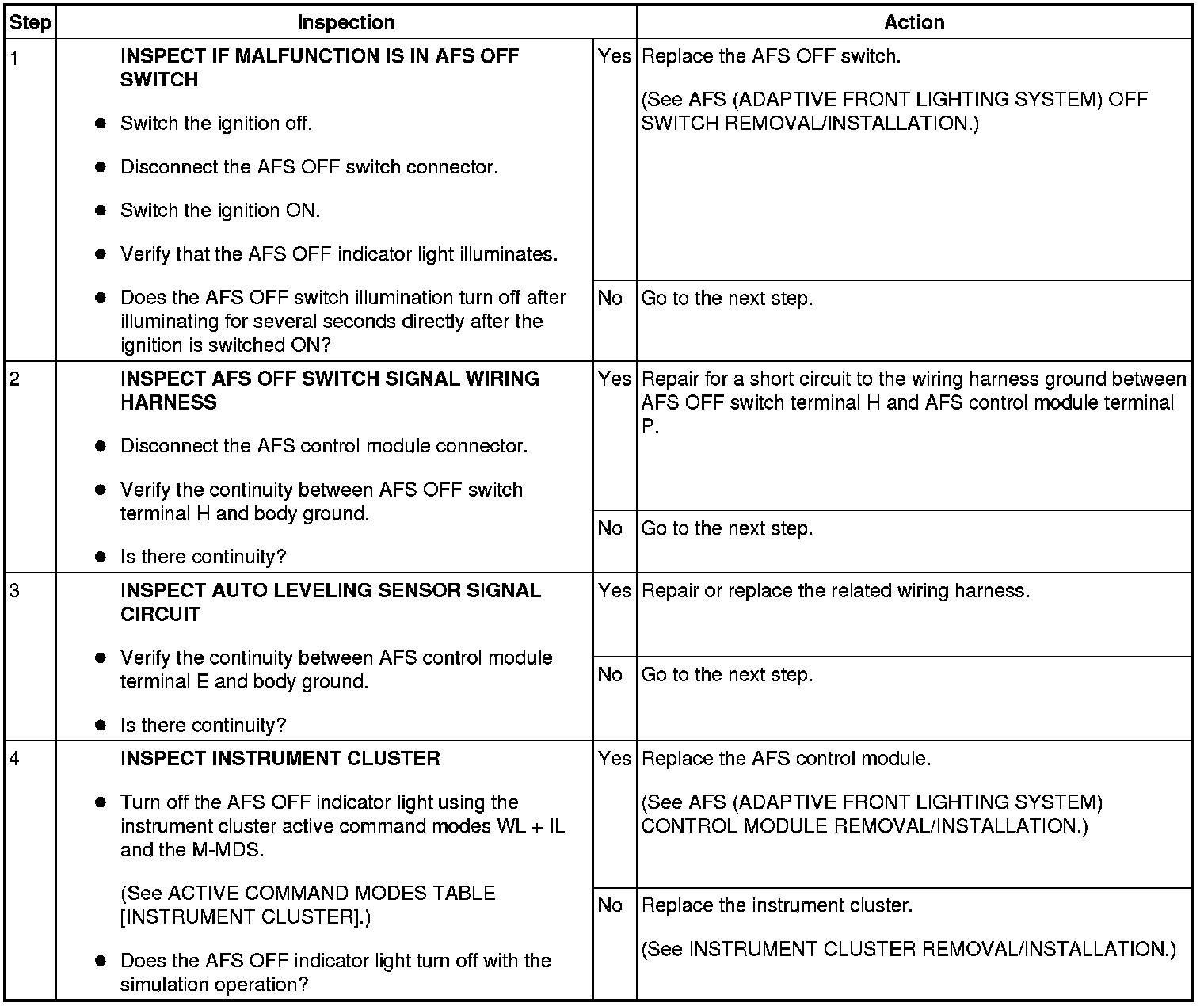

Diagnostic Procedure
