Fog/Driving Lamp Bulb: Service and Repair

FRONT FOG LIGHT BULB REMOVAL/INSTALLATION

Except Mazdaspeed3

1. Disconnect the negative battery cable. Removal and Replacement Removal and Replacement

2. Slightly bend back the mudguard. Service and Repair

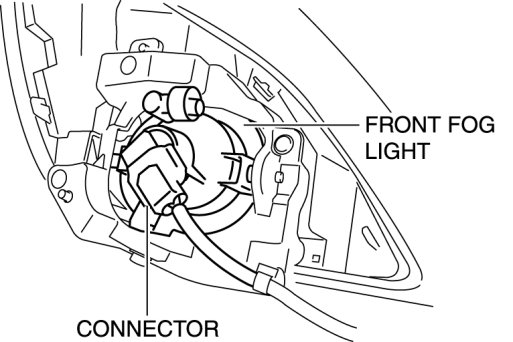

3. Disconnect the connector.

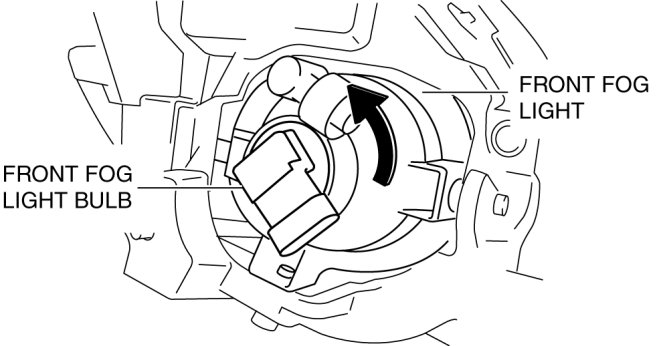

4. Rotate the front fog light bulb in the direction of the arrow shown in the figure.

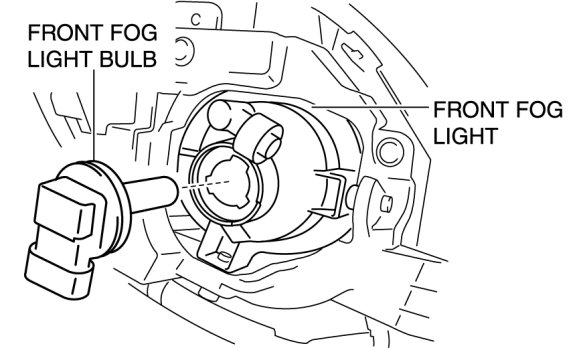

5. Remove the front fog light bulb.






CAUTION:
- A halogen bulb generates extremely high heat when it is used. If the surface of the bulb is soiled, excessive heat will build up and the light's life will be shortened. When replacing the bulb, hold the metal flange, not the glass.

6. Install in the reverse order of removal.

Mazdaspeed3

1. Disconnect the negative battery cable. Removal and Replacement

2. Slightly bend back the mudguard. Service and Repair

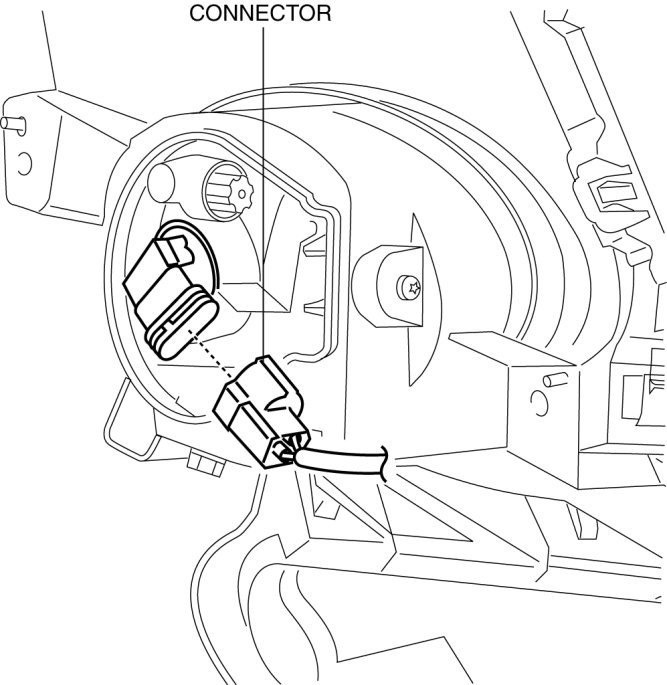

3. Disconnect the connector.

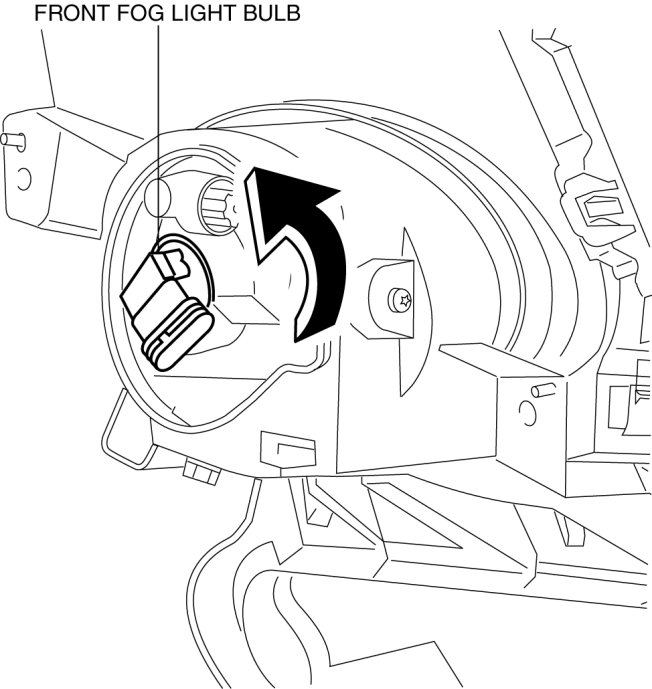

4. Rotate the front fog light bulb in the direction of the arrow shown in the figure.

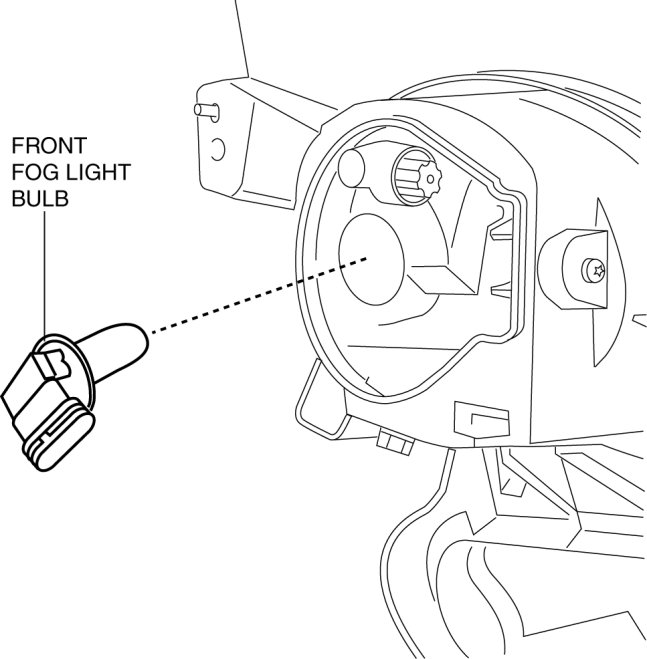

5. Remove the front fog light bulb.






CAUTION:
- A halogen bulb generates extremely high heat when it is used. If the surface of the bulb is soiled, excessive heat will build up and the light's life will be shortened. When replacing the bulb, hold the metal flange, not the glass.

6. Install in the reverse order of removal.
