FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mazda
>>
2012
>>
3 L4-2.0L (MZR)
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
No. 8 Speedometer Indication Is Defective
No. 8 Speedometer Indication Is Defective

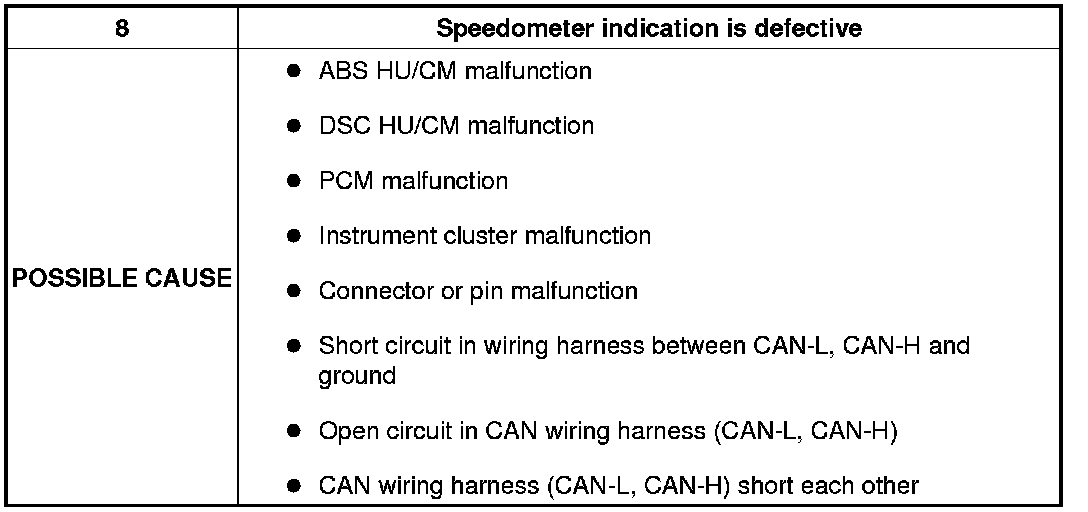

NO. 8 SPEEDOMETER INDICATION IS DEFECTIVE [INSTRUMENT CLUSTER]

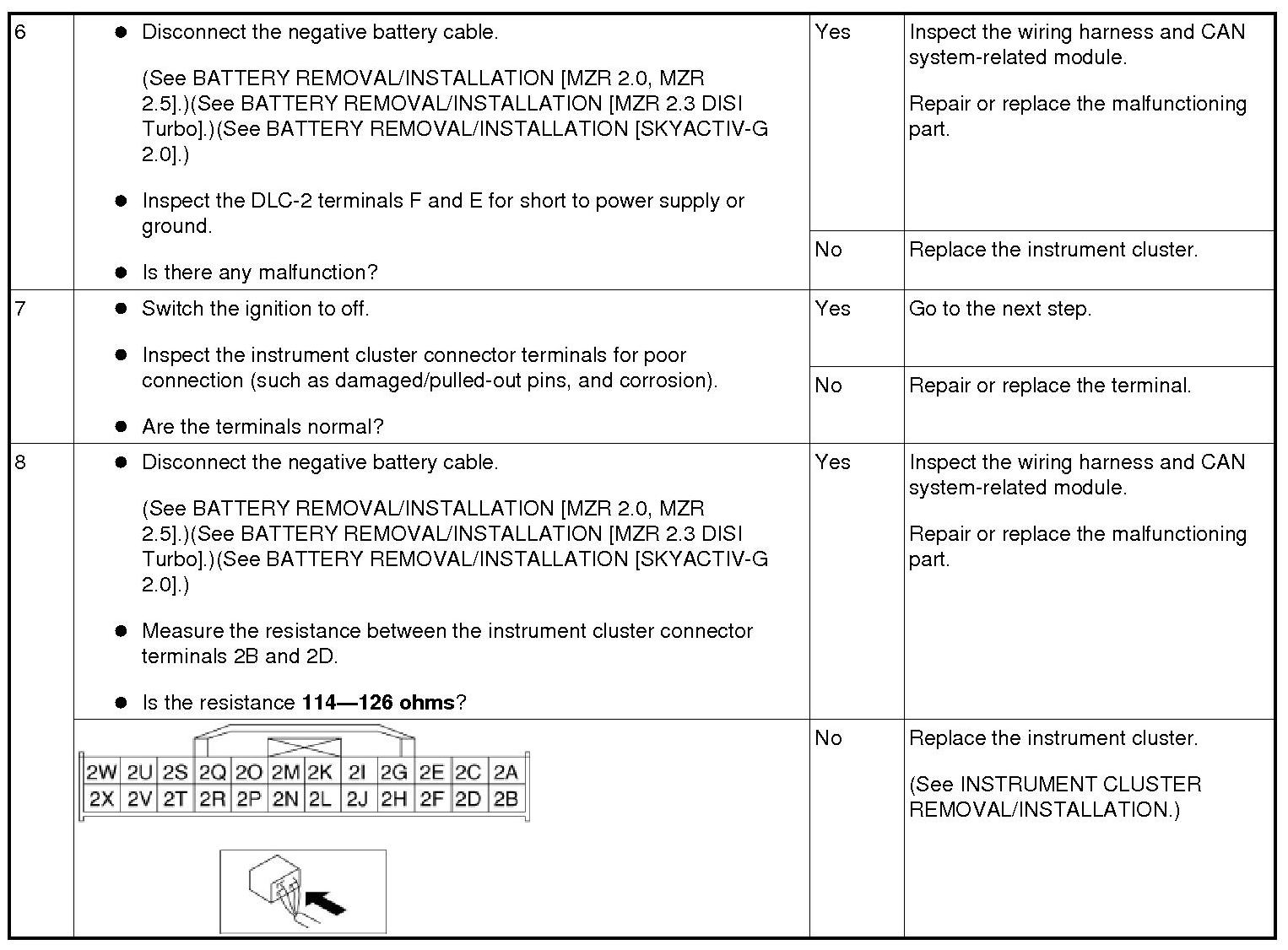

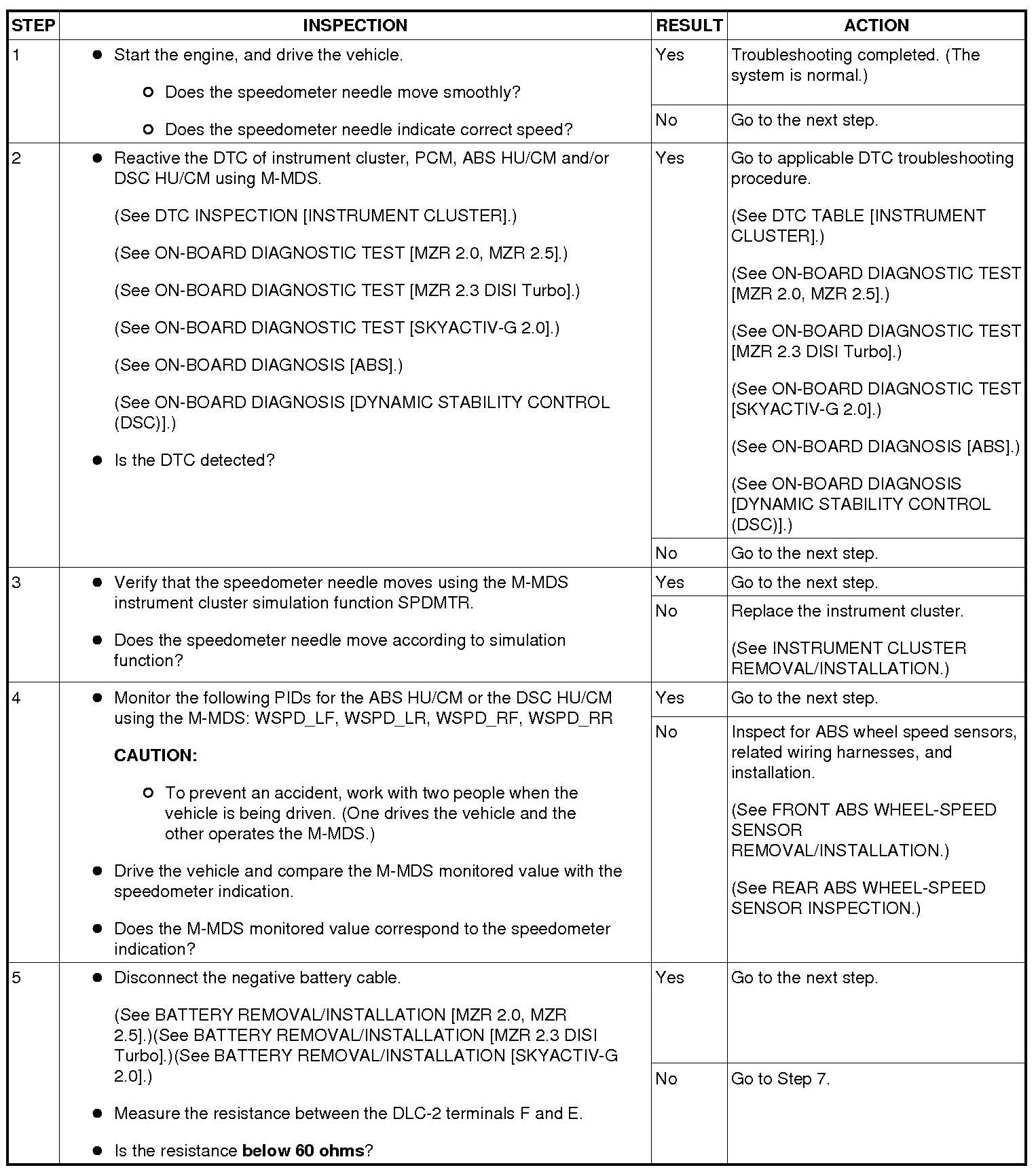

Diagnostic procedure
