No. 7 Instrument Cluster Illumination Does Not Dim When Taillights Illuminate





NO. 7 INSTRUMENT CLUSTER ILLUMINATION DOES NOT DIM WHEN TAILLIGHTS ILLUMINATE [INSTRUMENT CLUSTER]

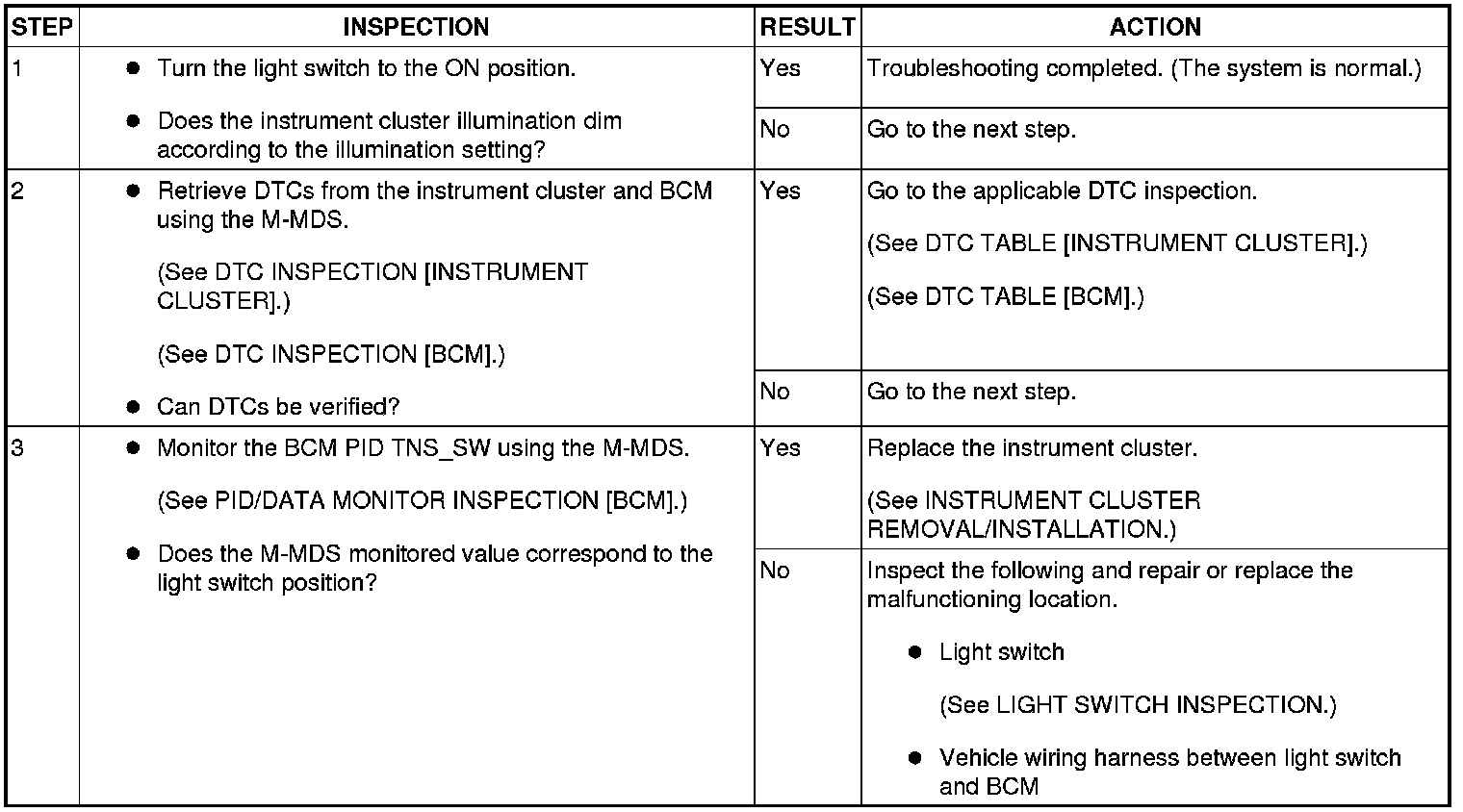

Diagnostic procedure
