Home >> Mazda >> 2012 >> 3 L4-2.0L (MZR) >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> No. 10 Low Eng Coolant Temp Indicator Light/High Eng Coolant Temp Warning Light Illuminates Or Flashes Continuosly

No. 10 Low Eng Coolant Temp Indicator Light/High Eng Coolant Temp Warning Light Illuminates Or Flashes Continuosly

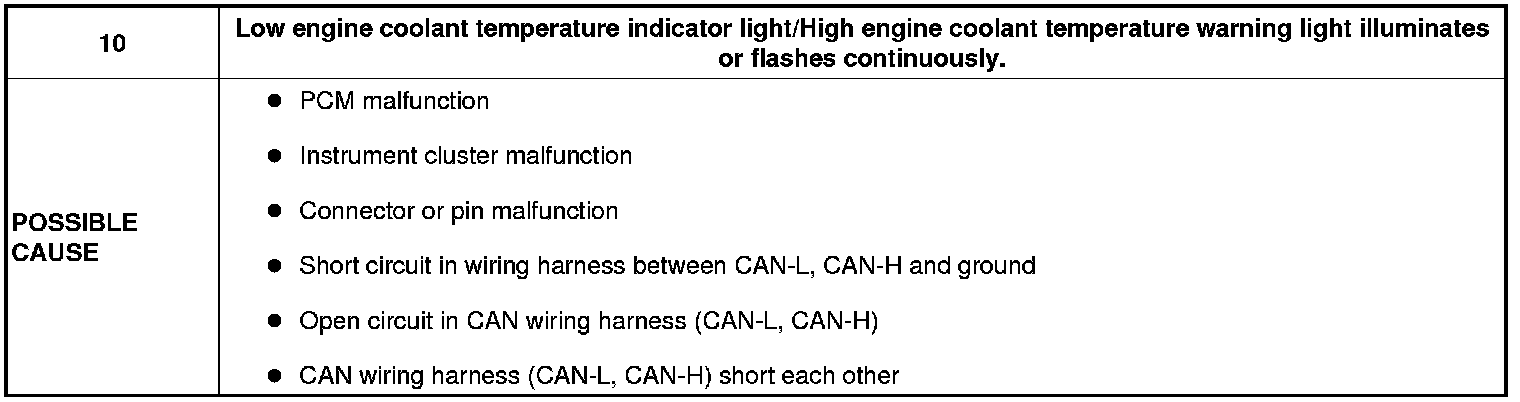

NO. 10 LOW ENGINE COOLANT TEMPERATURE INDICATOR LIGHT/HIGH ENGINE COOLANT TEMPERATURE WARNING LIGHT ILLUMINATES OR FLASHES CONTINUOUSLY [INSTRUMENT CLUSTER]

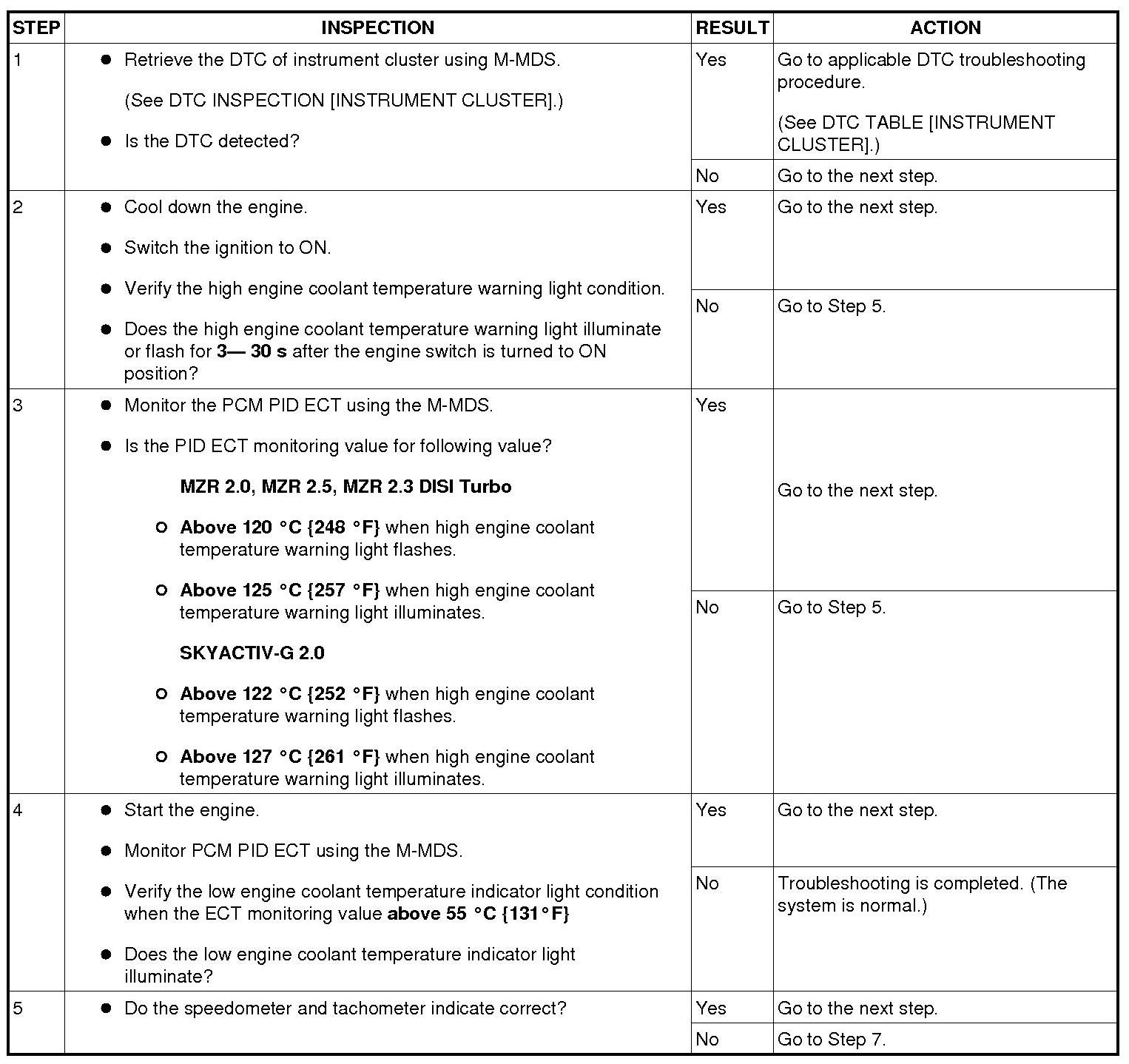

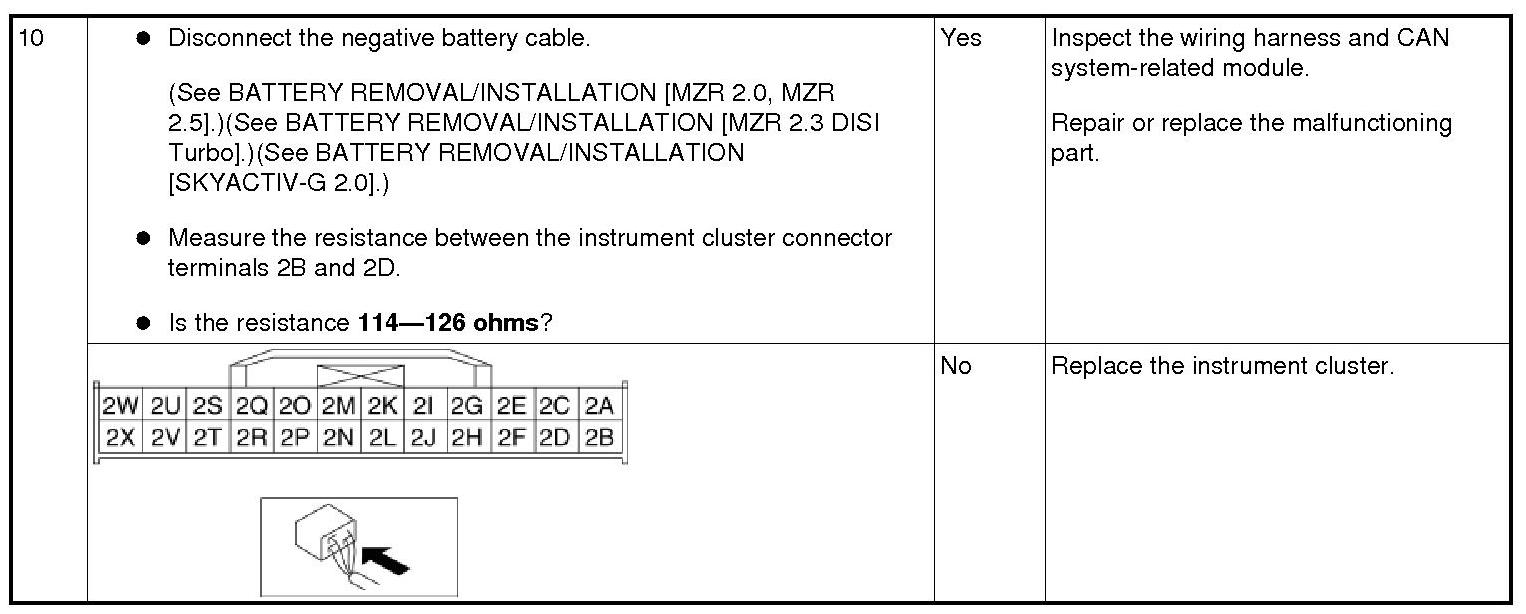

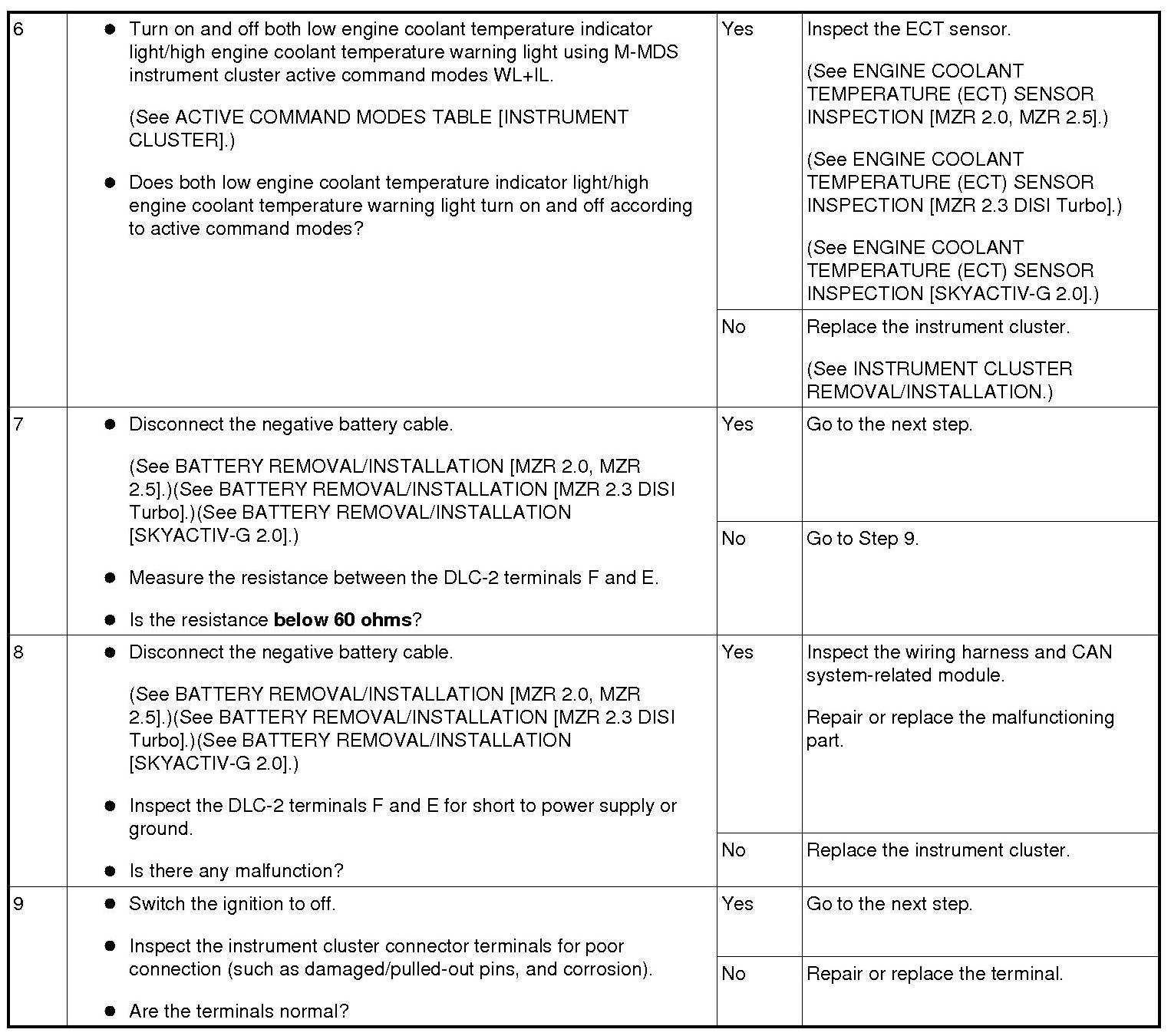

Diagnostic procedure
