No. 1 Fuel Gauge Indicator Light Indication Is Incorrect

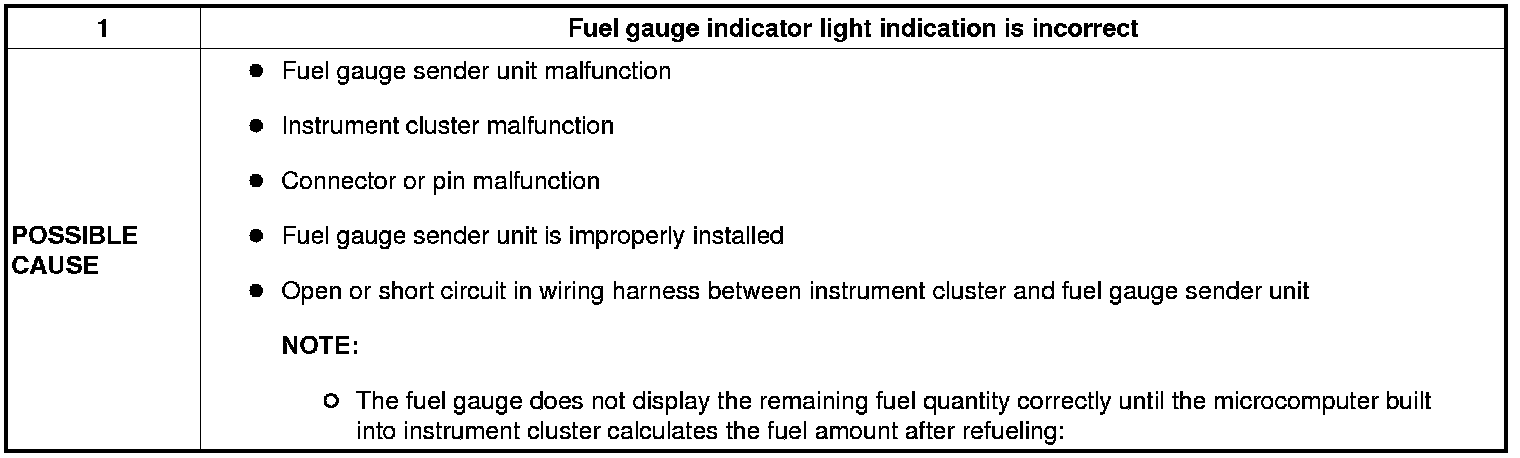

NO. 1 FUEL GAUGE INDICATOR LIGHT INDICATION IS INCORRECT [INSTRUMENT CLUSTER]

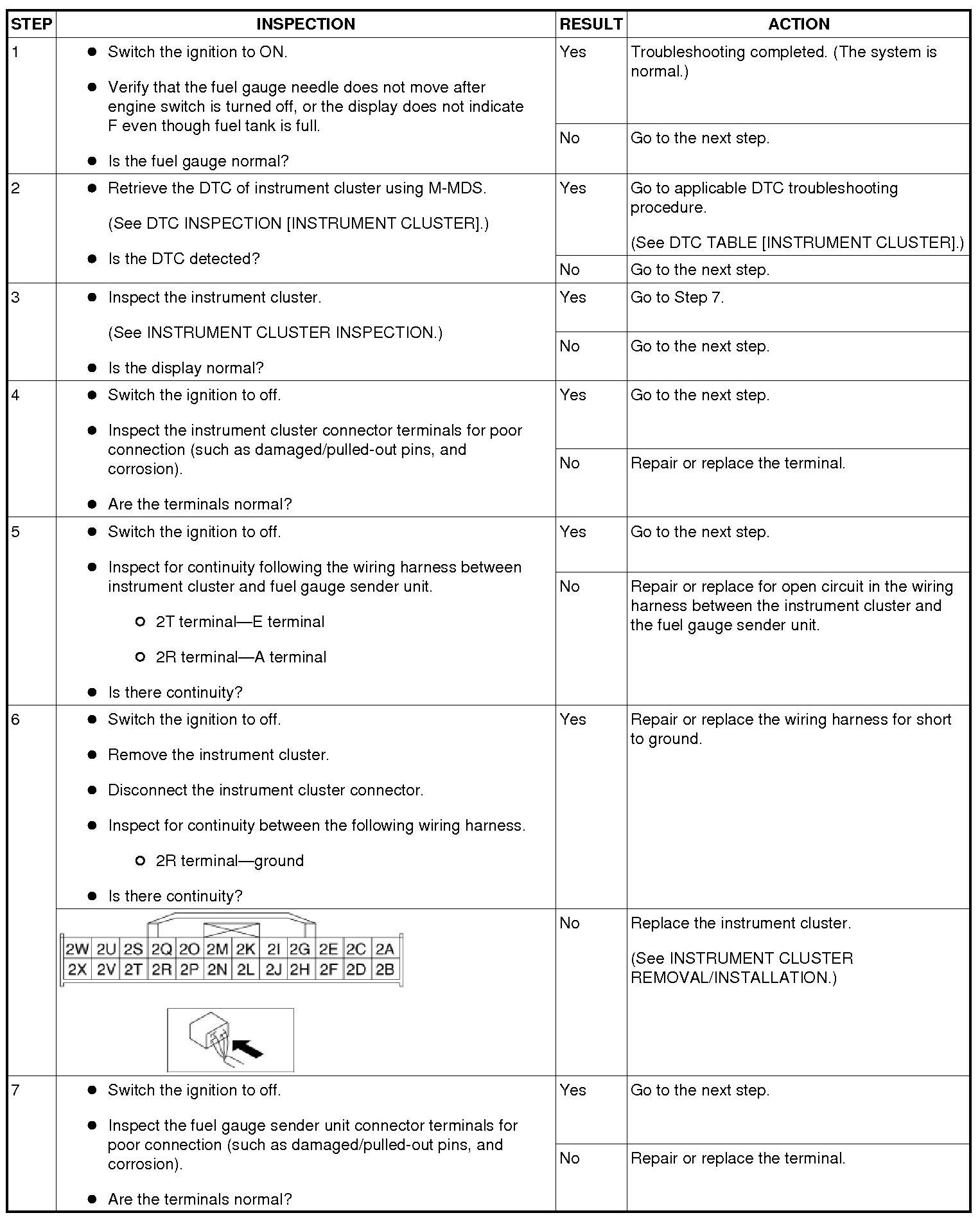

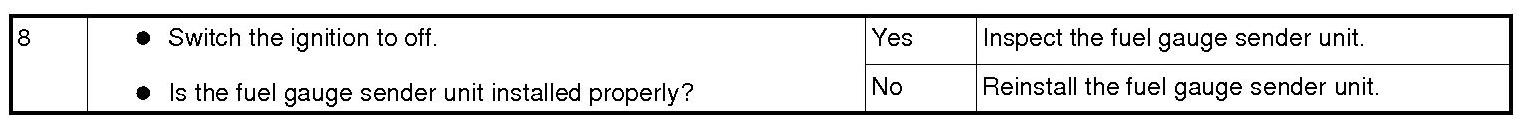

Diagnostic procedure
