No. 1 System Does Not Activate
No. 1 System Does Not Activate
No.1 SYSTEM DOES NOT ACTIVATE [MULTI INFORMATION DISPLAY]
*1
With advanced
keyless entry
and push button start system
*2
Without advanced
keyless entry
and push button start system

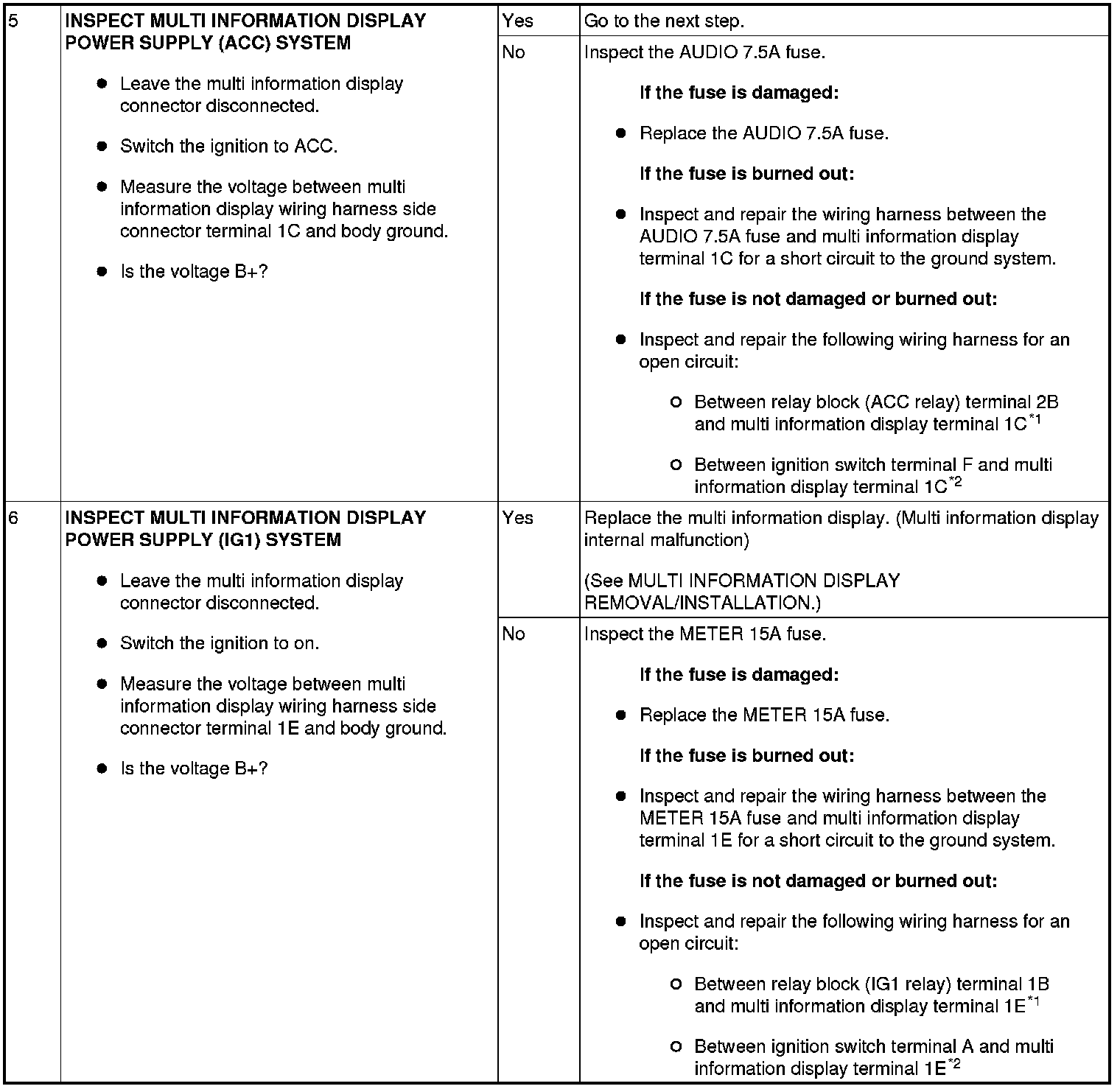

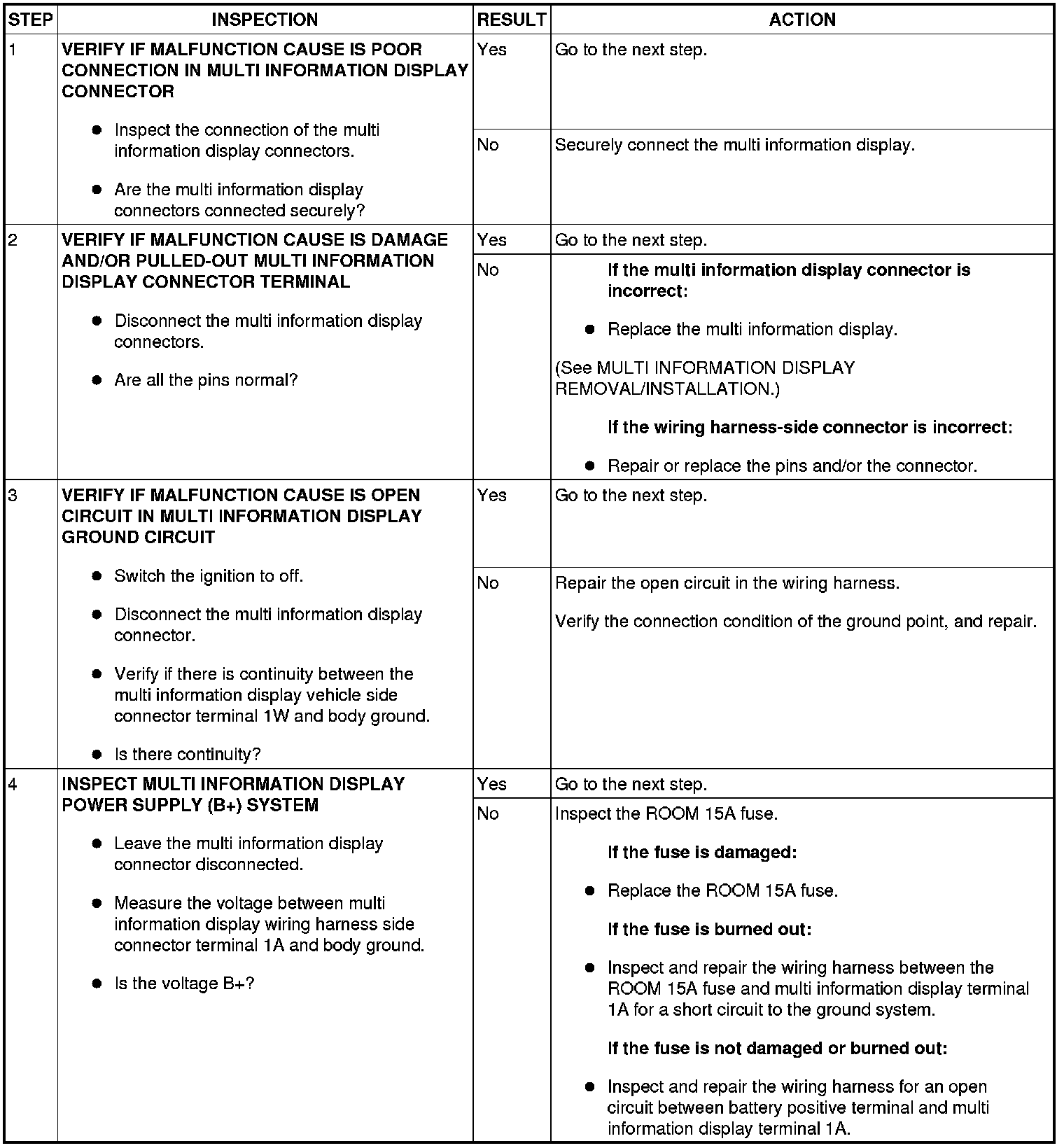

Diagnostic procedure
