On-Board Diagnostic Wiring Diagram [Information Display/Multi Information Display]





ON-BOARD DIAGNOSTIC WIRING DIAGRAM [INFORMATION DISPLAY/MULTI INFORMATION DISPLAY]

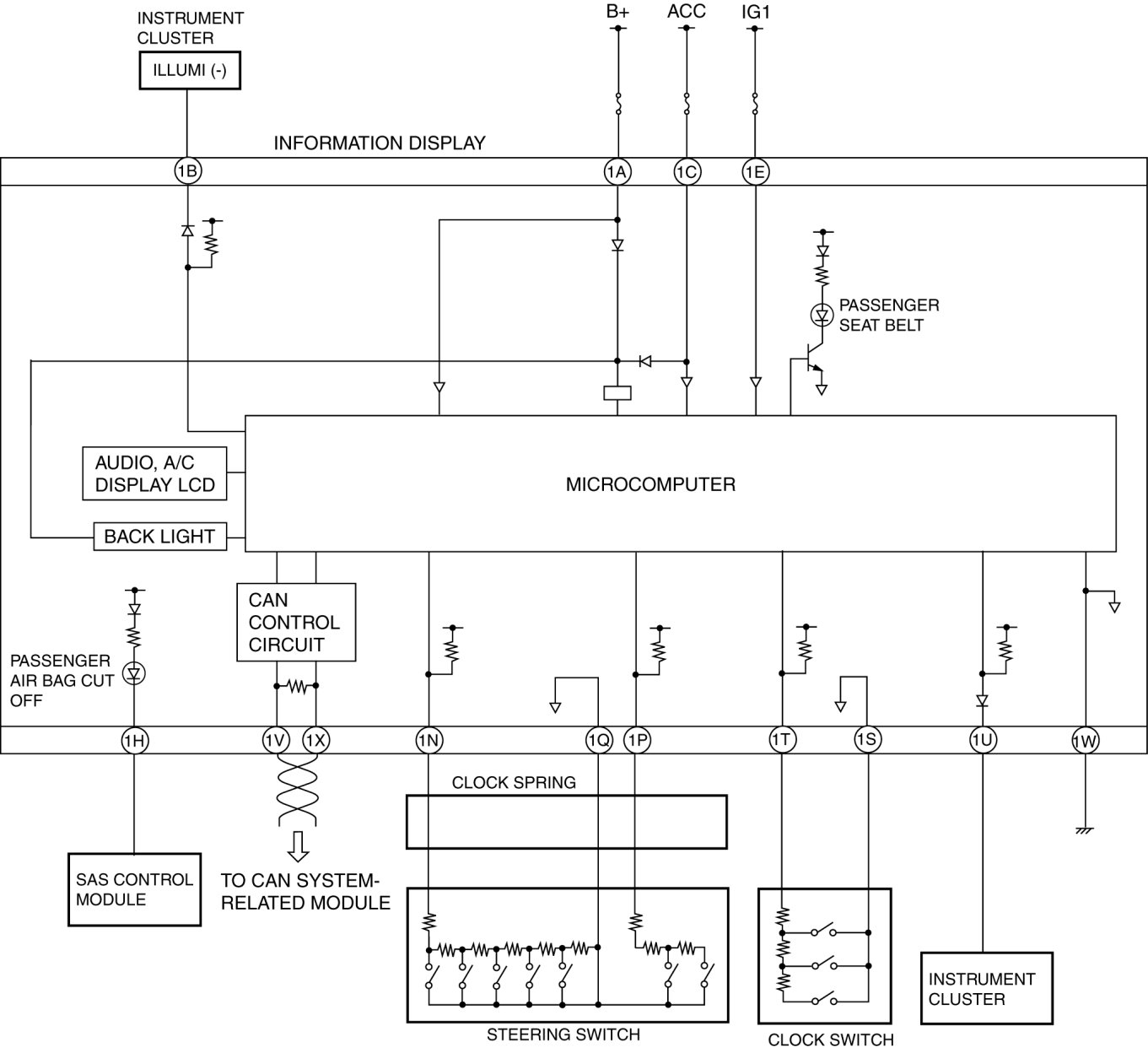

Information Display

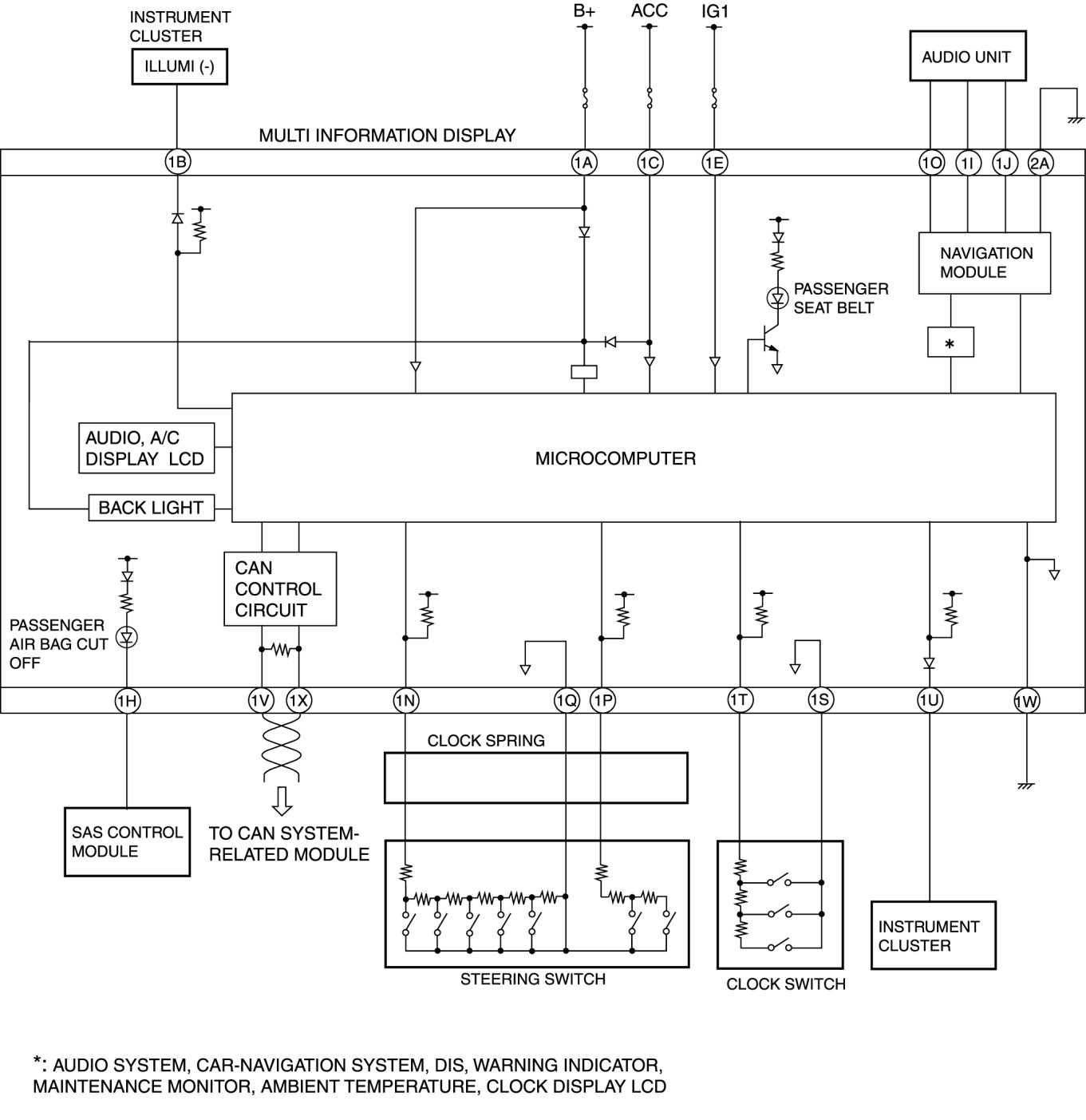

Multi Information Display
