Information Display Input/Output Check Mode

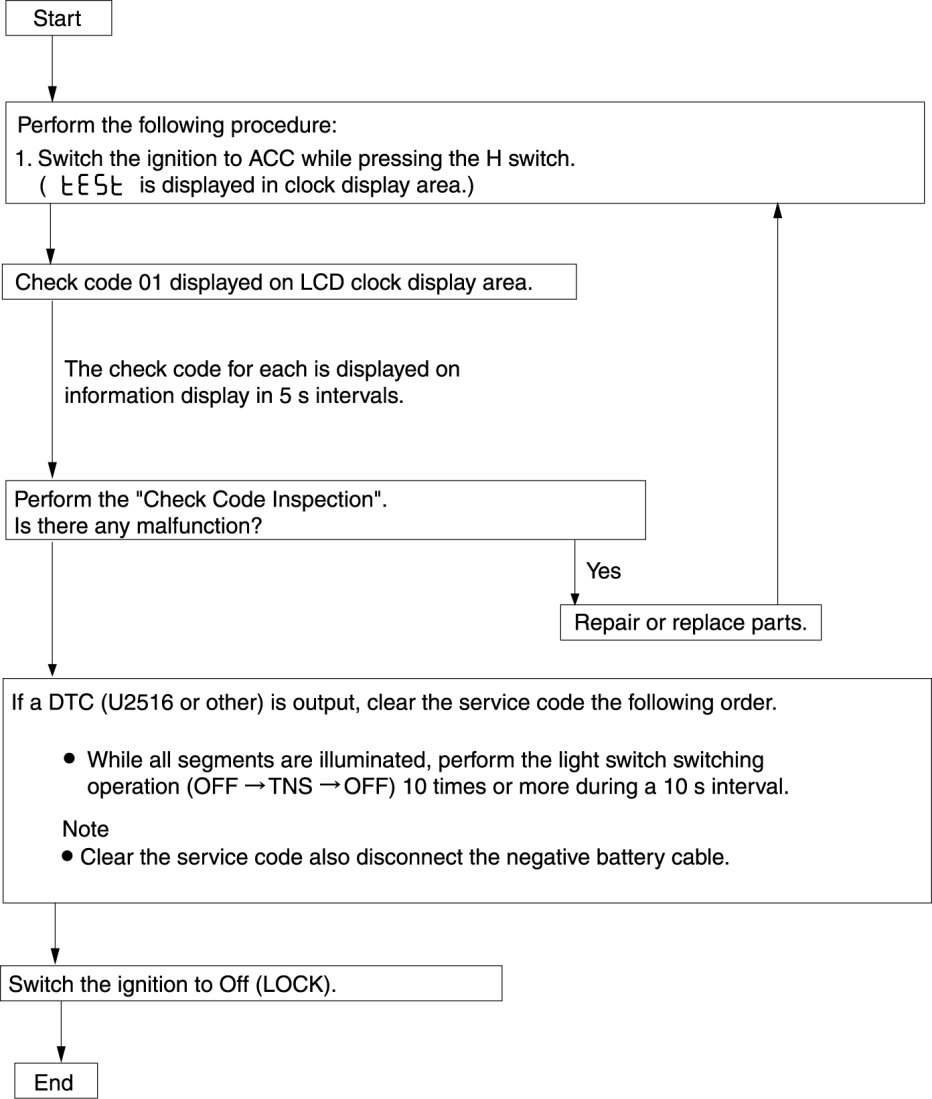

INFORMATION DISPLAY INPUT/OUTPUT CHECK MODE

NOTE:
- In this mode, it is possible to verify the items in the following chart.

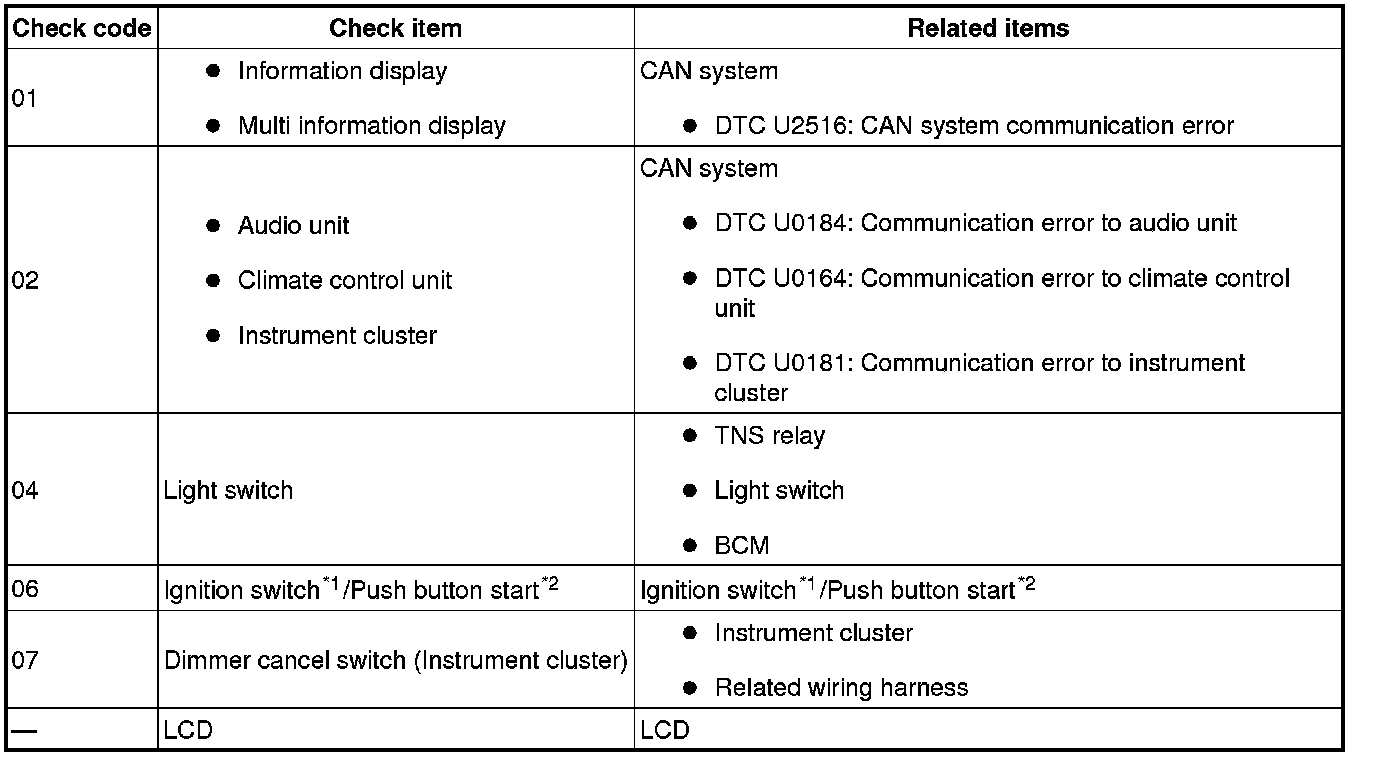

Check Code Table





*1
Without advanced keyless entry and push button start system
*2
With advanced keyless entry and push button start system

NOTE:
- The check codes are displayed in numerical order. (While performing the inspection, if you want to inspect a check code with a number smaller than the code number you are currently inspecting, terminate the check mode then repeat the inspection from the beginning.)





Check Code Inspection

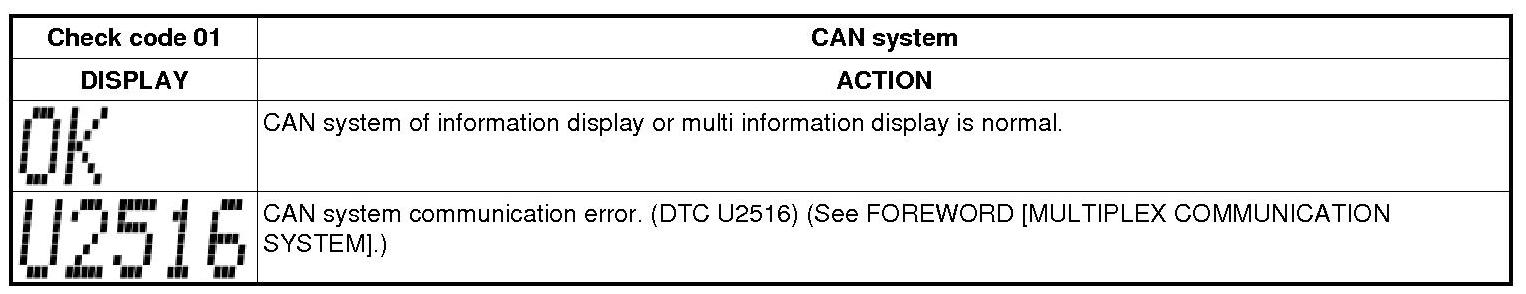

Check code 01

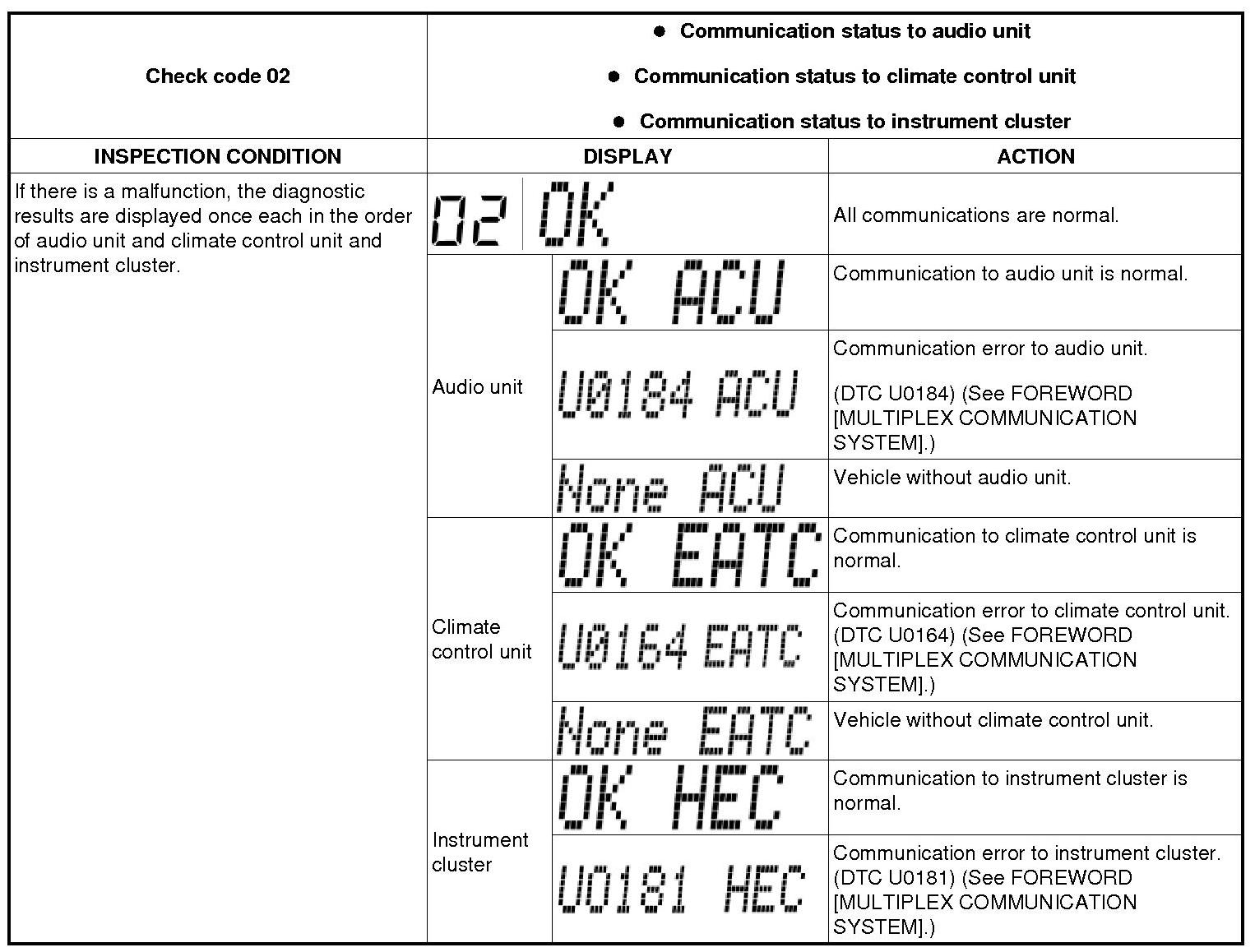

Check code 02

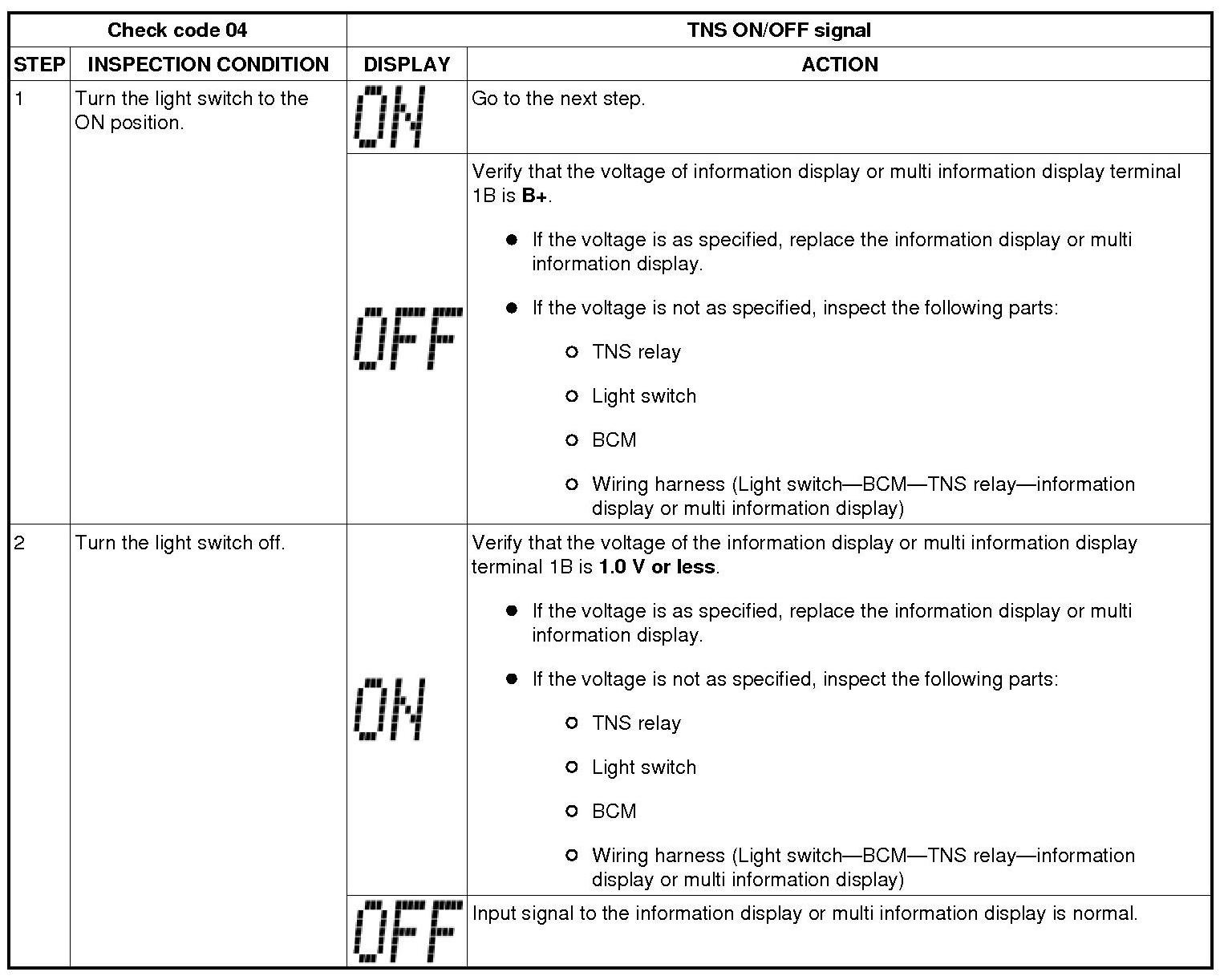

Check code 04

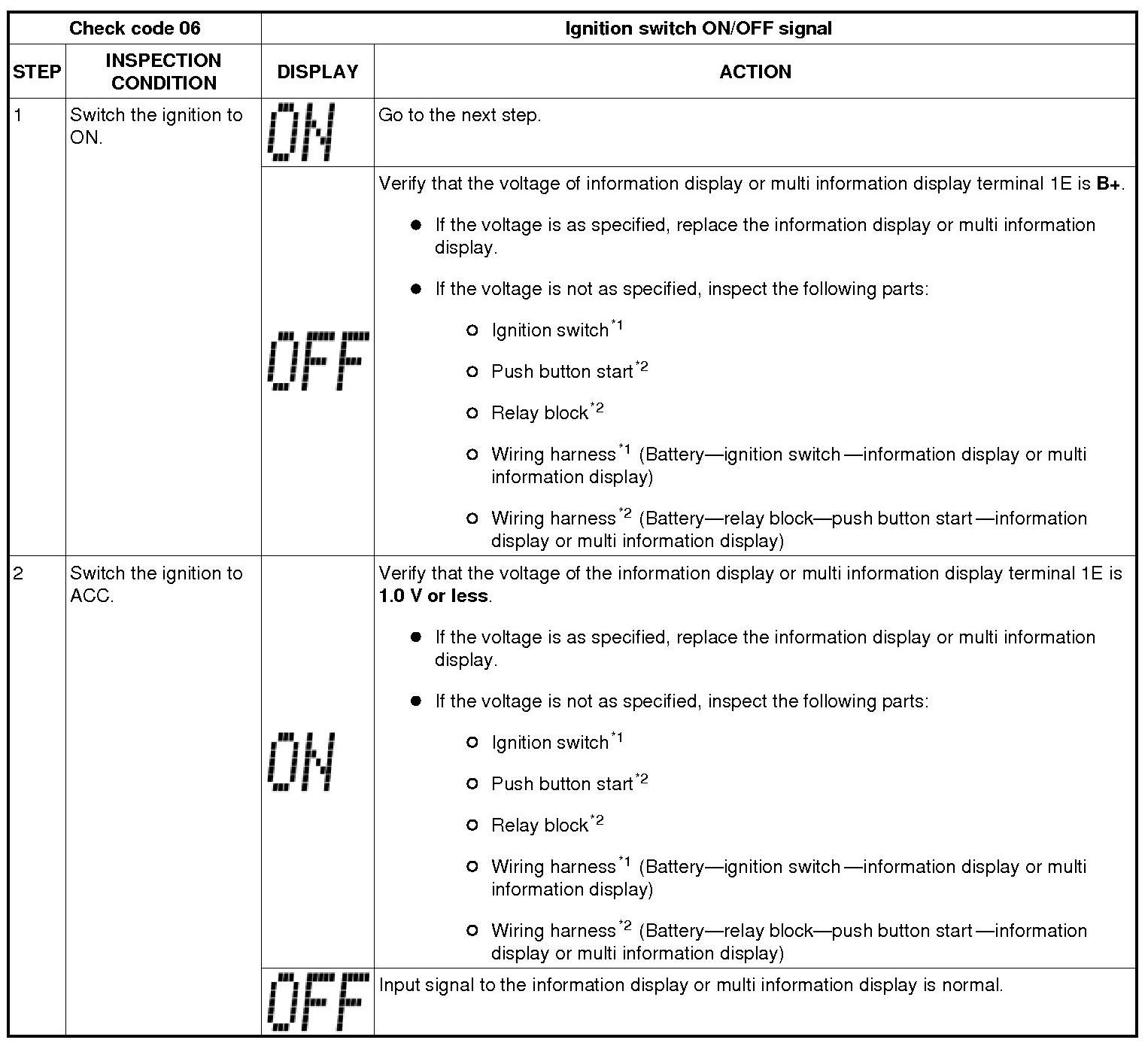

Check code 06





*1
Without advanced keyless entry and push button start system
*2
With advanced keyless entry and push button start system

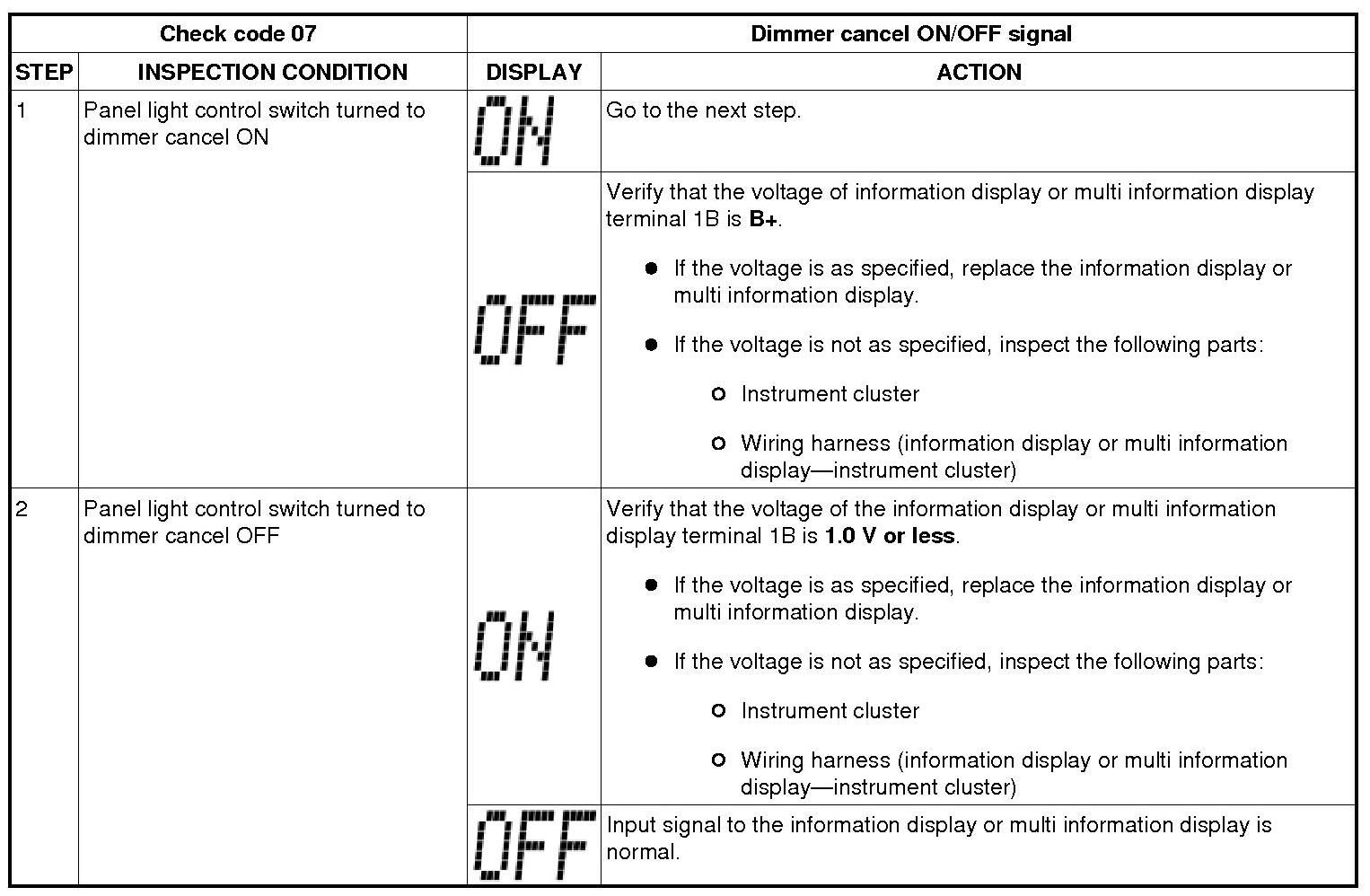

Check code 07

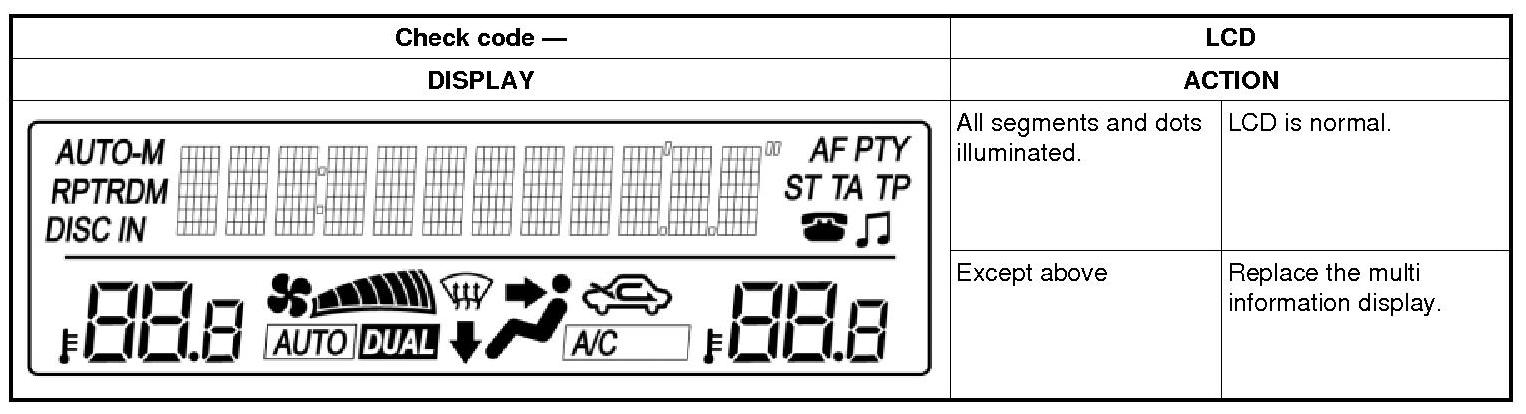

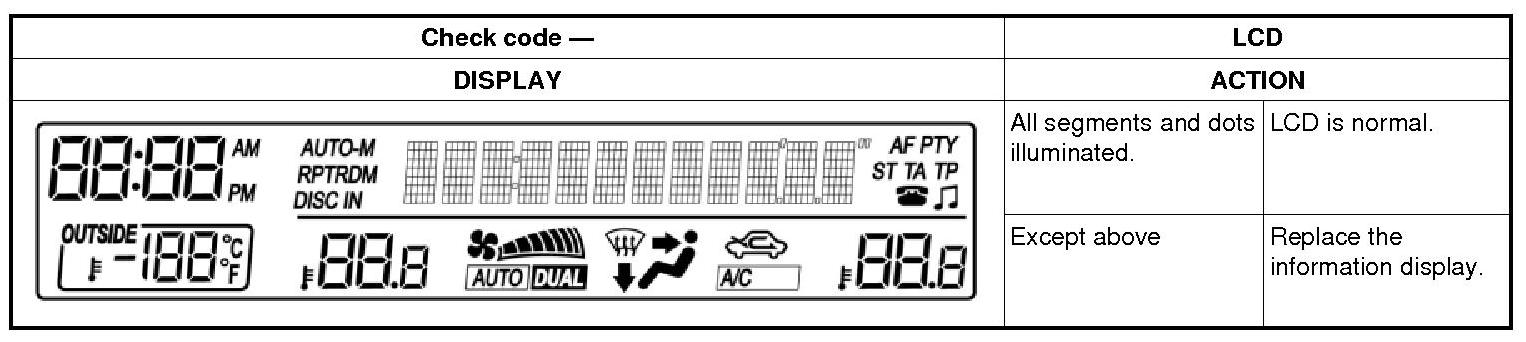

LCD

Information display





Multi information display
