Multi Information Display Maintenance Monitor Operation Procedure

MULTI INFORMATION DISPLAY MAINTENANCE MONITOR OPERATION PROCEDURE

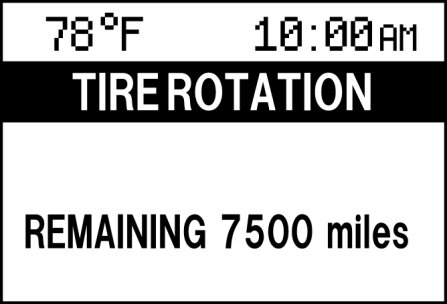

- The maintenance monitor displays a notification when a tire rotation or periodic inspection period approaches to inform the driver.
- The notification timing can be performed according to either the remaining travel distance or remaining days by performing the following procedure:

- Notification timing setting method
- Reset method
- Notification display ON/OFF setting method

- Remaining distance and number of days information is not erased even if the battery is disconnected.
- If the multi information display is repaired or replaced, it is possible that the remaining distance and number of days information will be erased.

Notification Timing Setting Method

CAUTION:
- Because the time information is reset after the negative battery cable is disconnected, the regular inspection period cannot be set using days. If the time information is reset, move the vehicle outdoors where reception of time information via GPS is possible.
- After verifying that the time is displayed on the multi information display, perform the day-setting procedure for the regular inspection period.
- Do not place objects around the GPS antenna, otherwise the GPS signal cannot be received.

1. Press the INFO SWITCH to display the SETTINGS menu.

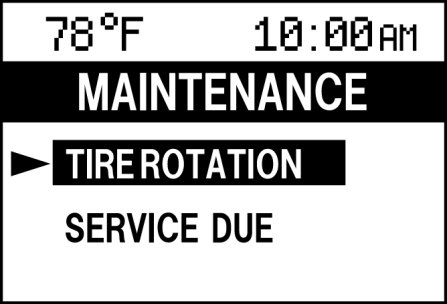

2. When the MAINTENANCE menu is displayed, press the ENTER switch.

3. Select TIRE ROTATION or SERVICE DUE and press the ENTER switch.






4. Select SET and press the ENTER switch.

5. If SERVICE DUE is selected, select either DISTANCE or DAYS and press the ENTER switch.











6. If TIRE ROTATION is selected, the SET DISTANCE screen is displayed.






7. The screen for setting the next distance or days to maintenance is displayed.

- The initial setting corresponding to the maintenance schedule is displayed. (except Puerto Rico)

8. To change the set value, operate the up/down switch and change the setting.

9. Press the ENTER switch.

Reset Method

NOTE:
- Performed after a tire rotation or periodic inspection has been completed, or when you want to reset a value.
- After resetting, a notification display is performed when the next maintenance period approaches.

1. Set each maintenance period according to the "Notification Timing Setting Method".

Notification Display ON/OFF Setting Method

1. Press the INFO SWITCH to display the SETTINGS menu.

2. When the MAINTENANCE menu displays, press the ENTER switch.

3. Select the item you want to start or cancel and press the ENTER switch.

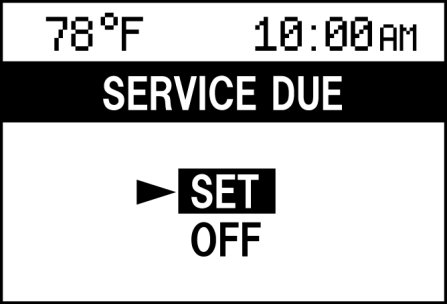

4. Select SET or OFF and press the ENTER switch.

- SET: Starts notification display
- OFF: Cancel notification display
