Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Manual Air Conditioner
>>
System Wiring Diagram
System Wiring Diagram

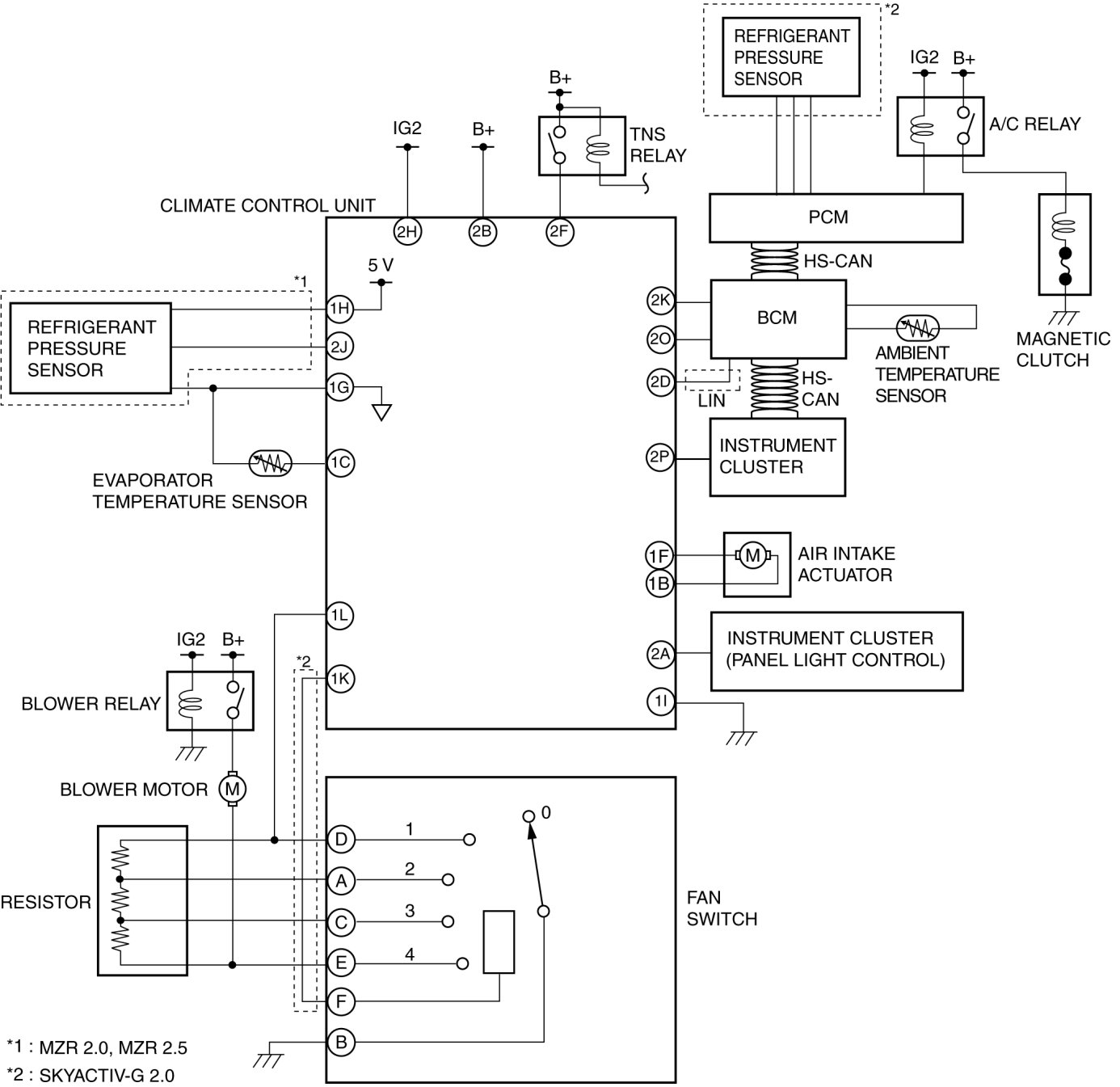

HVAC SYSTEM WIRING DIAGRAM [MANUAL AIR CONDITIONER]
