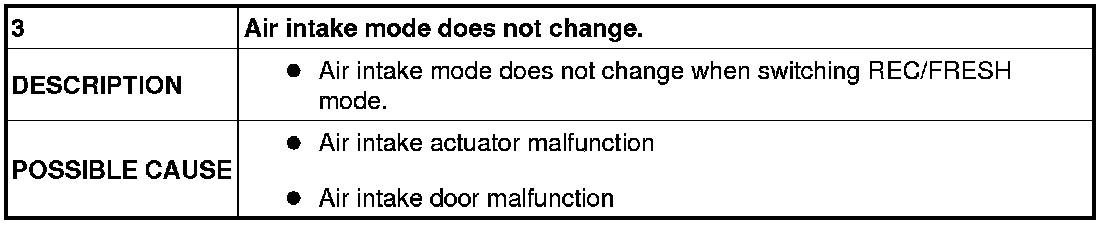

No. 3 Air Intake Mode Does Not Change

NO.3 AIR INTAKE MODE DOES NOT CHANGE [MANUAL AIR CONDITIONER]





- When performing an asterisked (*) troubleshooting inspection, shake the wiring harness and connectors while performing the inspection to discover whether poor contact points are the cause of any intermittent malfunctions. If there is a problem, inspect to make sure connectors, terminals and wiring harnesses are connected correctly and undamaged.

NOTE:
- The climate control unit controls the air intake mode when the airflow mode is in DEFROSTER or DEF/HEAT so that it is fixed at FRESH mode. At this time, the airflow mode cannot be changed from FRESH to REC even if the REC switch is pressed, but this does not indicate a malfunction.

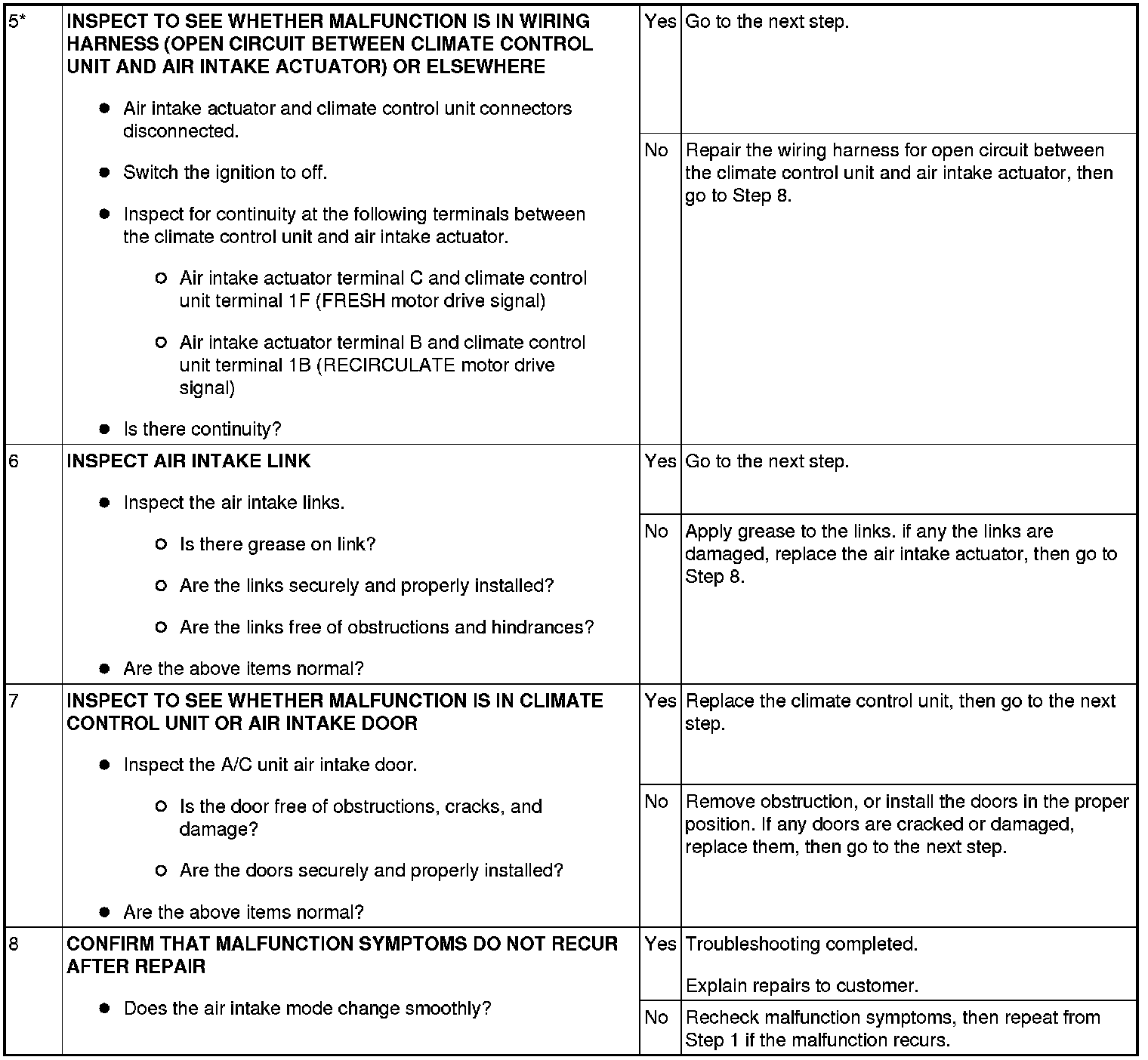

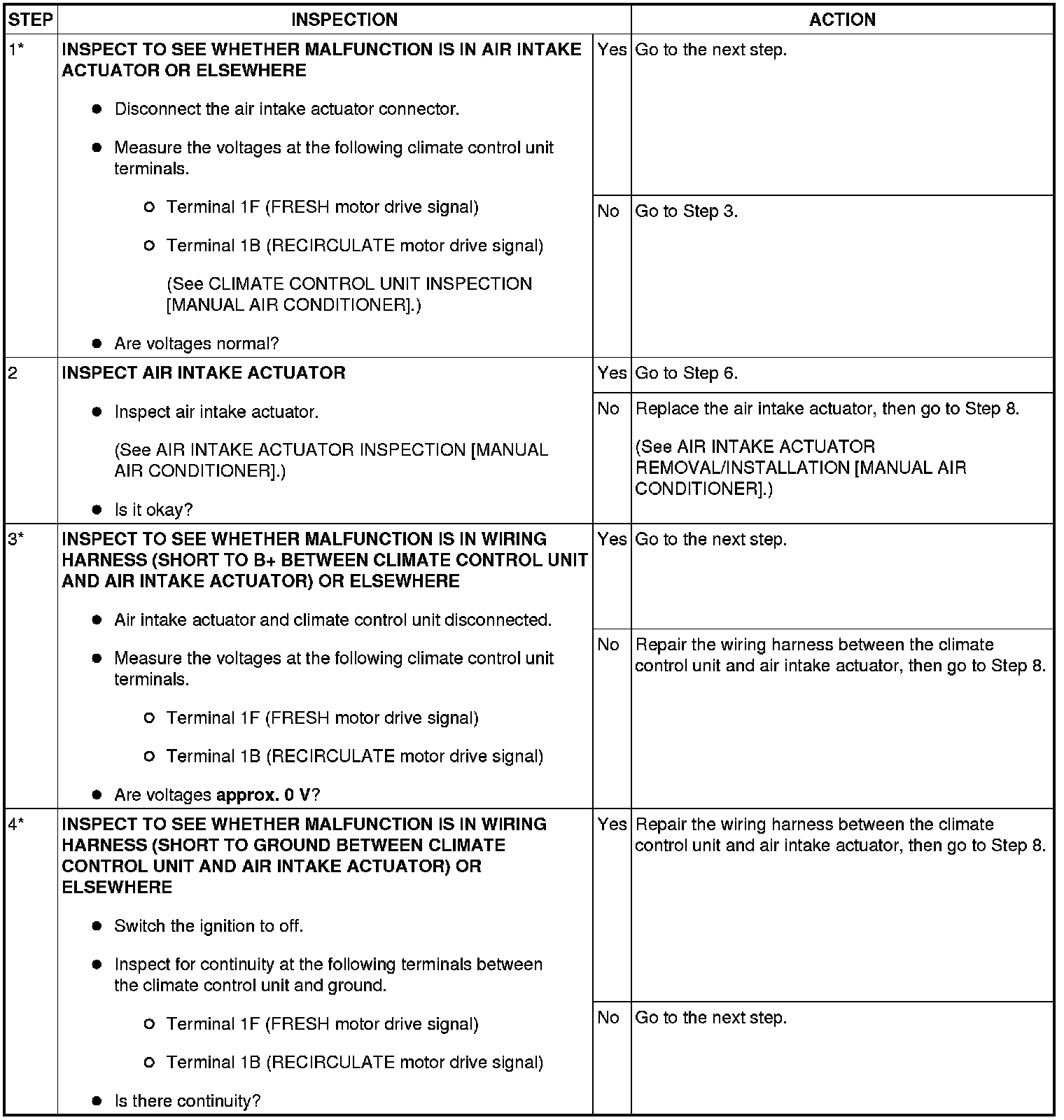

Diagnostic procedure
