FOREWORD [MANUAL AIR CONDITIONER]

- If there is any vehicle malfunction complaint lodged by a customer, perform malfunction diagnosis according to the troubleshooting procedure.

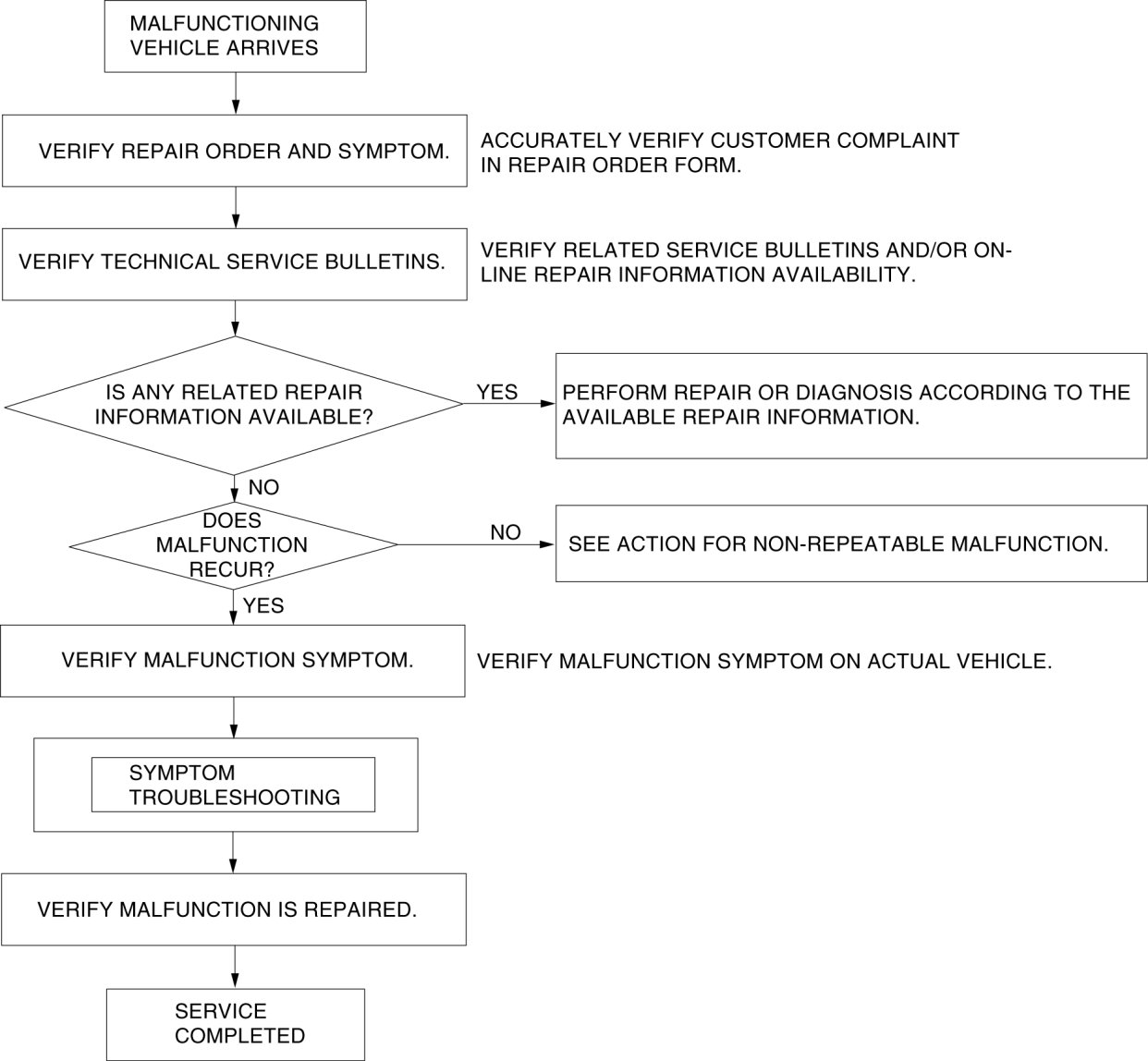

Troubleshooting Procedure





Action for non-repeatable malfunction

- If the malfunction does not recur, verify the malfunction cause by performing the following actions:

- Based on the repair order form, attempt to drive the vehicle or perform tests to replicate the malfunction, record the data at that time, and detect the malfunction cause.
- Refer to [Determining Open Circuit Location] based on the recorded DTC, shake the wiring harness or connector of the electrical component which is suspected to be the cause of the malfunction.





- Inspect the female terminals on the connector of the electric component which is suspected to be the cause of the malfunction for poor connection.
