HVAC Basic System Location Index

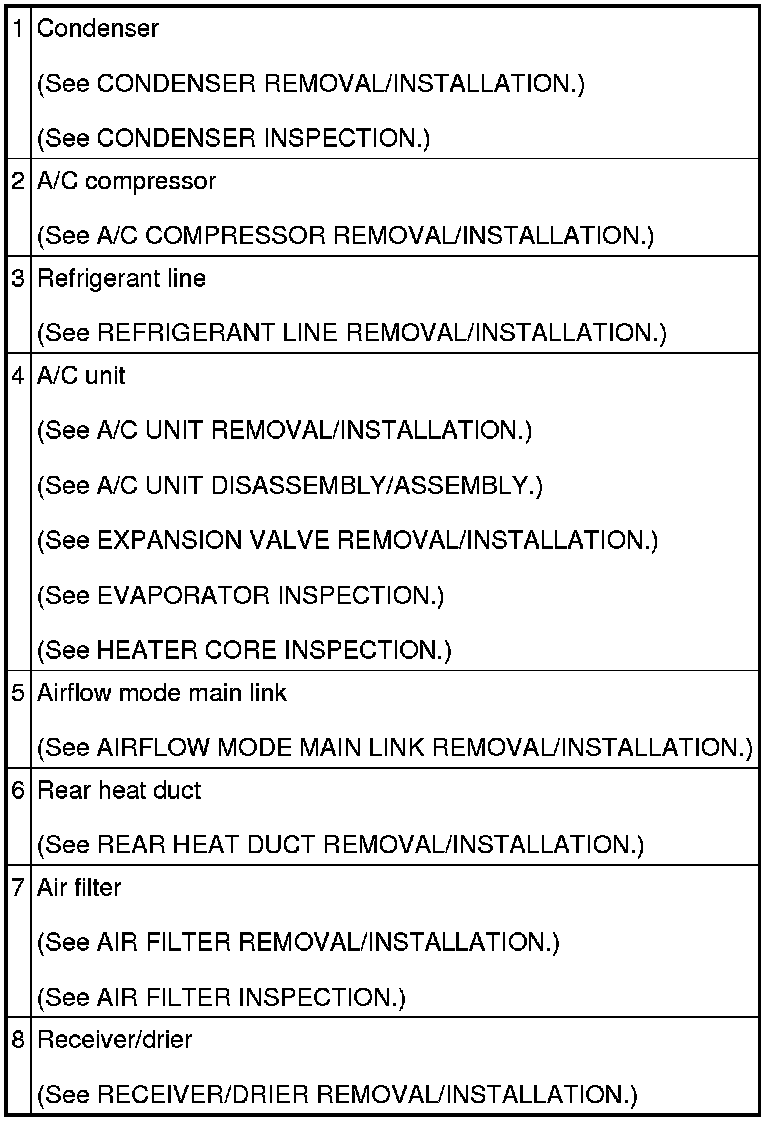

HVAC BASIC SYSTEM LOCATION INDEX

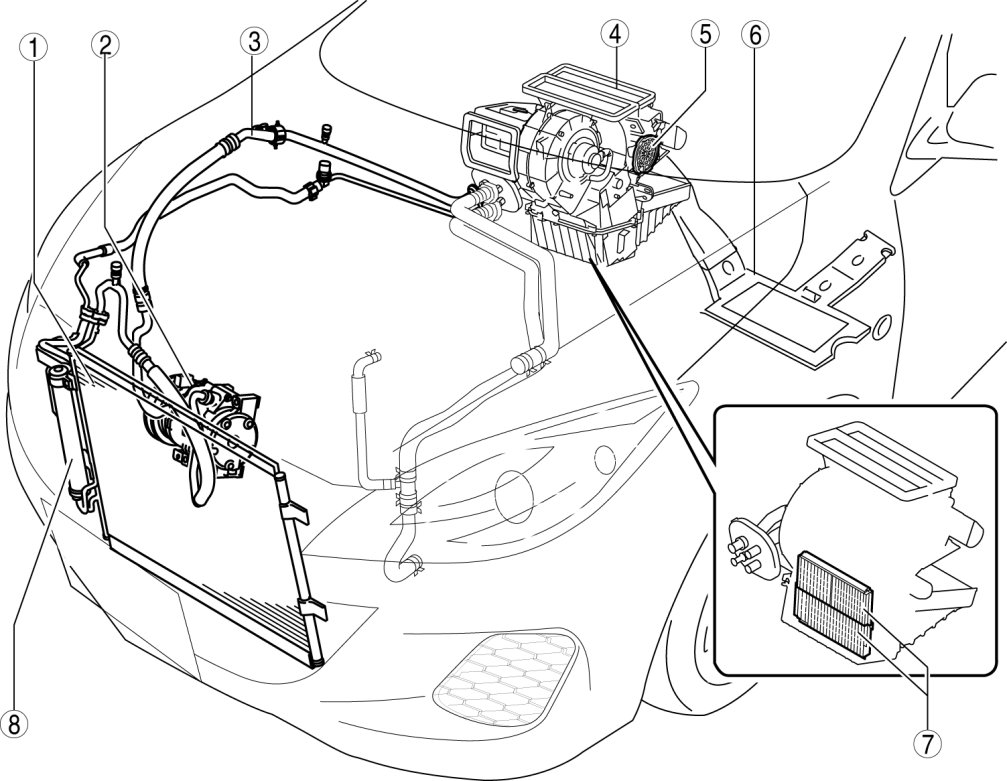

SKYACTIV-G 2.0

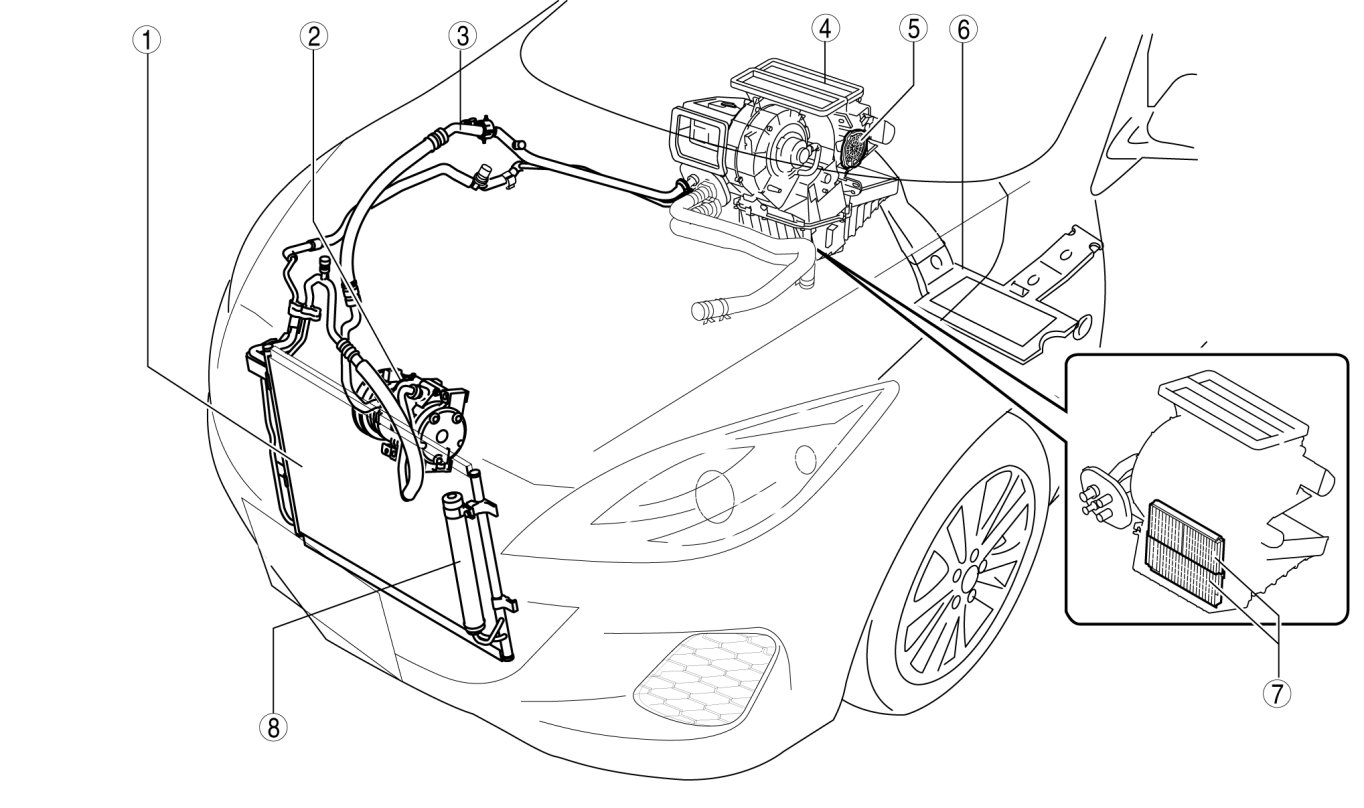

MZR 2.0

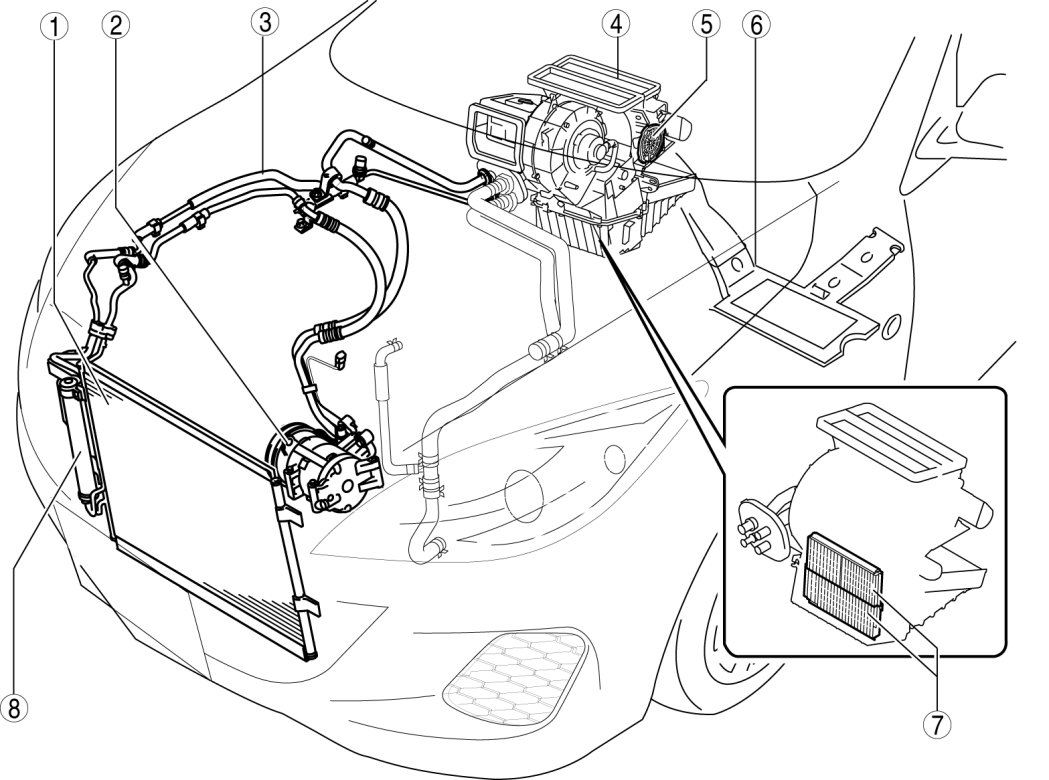

MZR 2.5

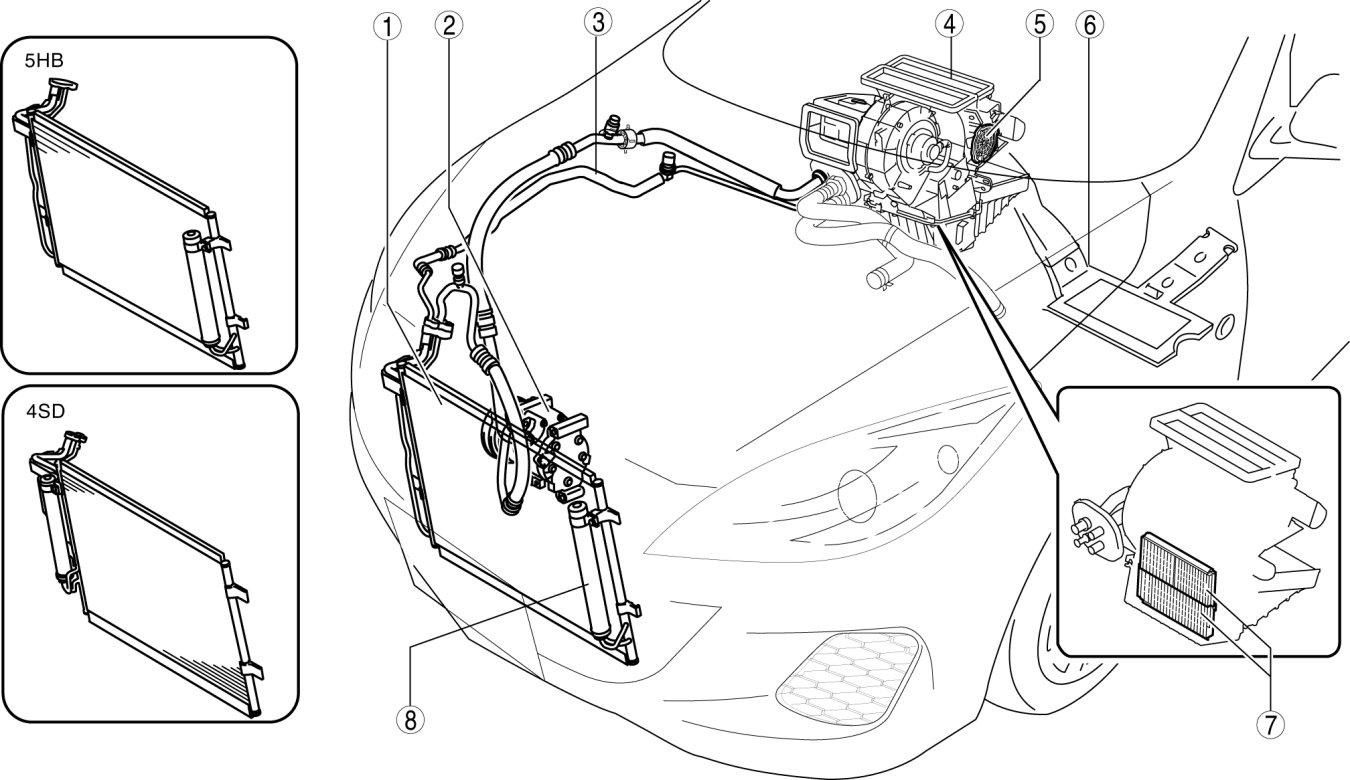

MZR 2.3 DISI Turbo
