Manual Air Conditioner

MAGNETIC CLUTCH INSPECTION [MANUAL AIR CONDITIONER]

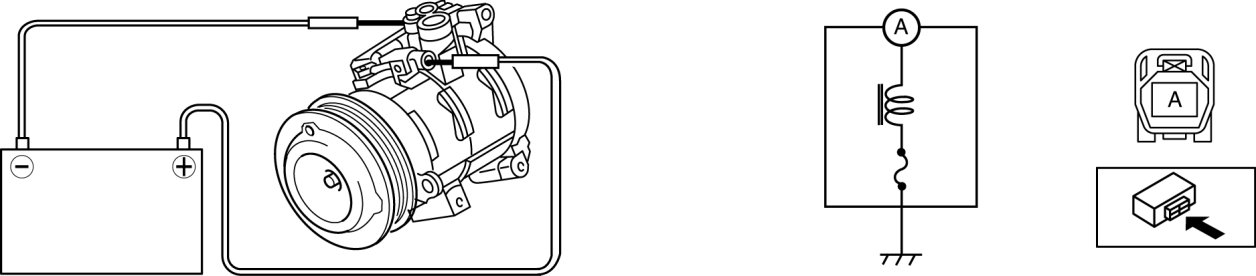

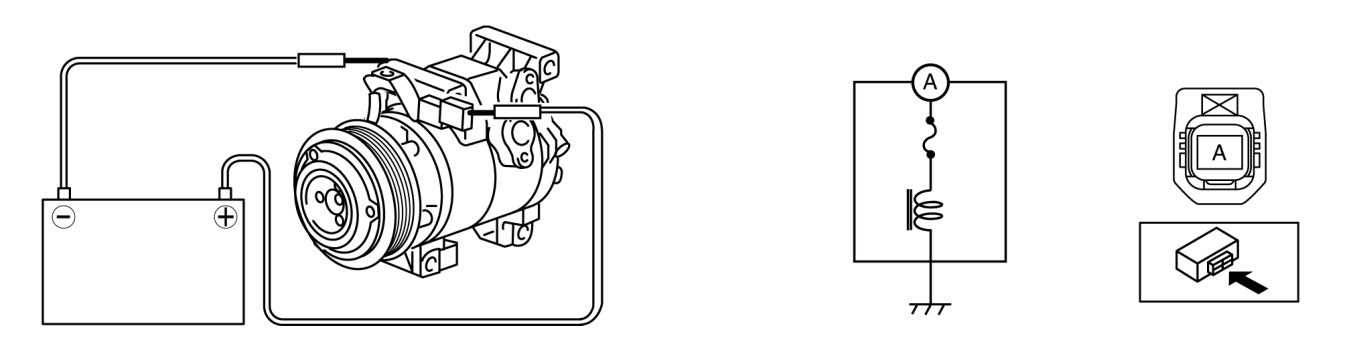

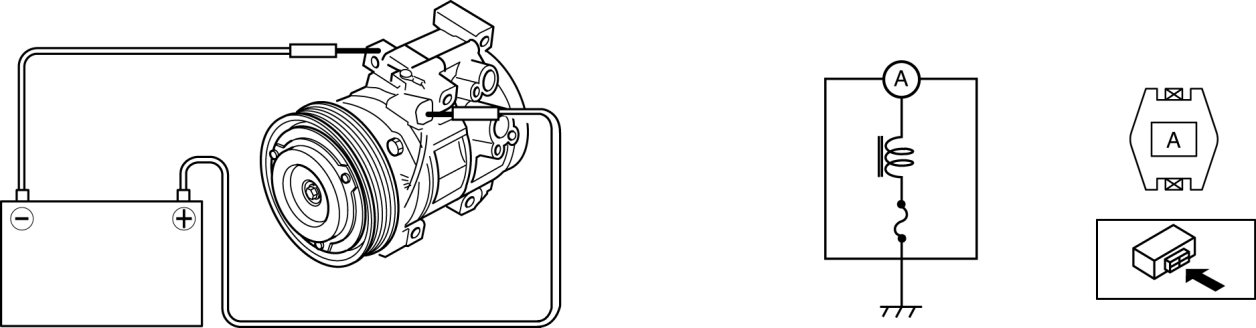

1. Connect battery to terminal A of magnetic clutch and ground to A/C compressor body.
SKYACTIV-G 2.0





MZR 2.0





MZR 2.5






2. Verify that the magnetic clutch operates.

- If there is any malfunction, replace the magnetic clutch.
