Airflow Mode Actuator
AIRFLOW MODE ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER]
1. Set the air intake mode to FRESH.
2. Set the air mix mode to MAX COLD.
3. Disconnect the negative battery cable. Removal and Replacement Removal and Replacement
4. Remove the following parts:
a. Front doors Service and Repair
b. Front scuff plate Front Scuff Plate Removal/Installation
c. Front side trim Front Side Trim Removal/Installation
d. Dashboard under cover Dashboard Under Cover Removal/Installation
e. Glove compartment Service and Repair
f. Upper panel Upper Panel Removal/Installation
g. Shift lever knob (MTX) Manual Transaxle Shift Mechanism Removal/Installation [G66M-R]
h. Selector lever knob (ATX) Automatic Transaxle Shift Mechanism Removal/Installation
i. Shift panel Shift Panel Removal/Installation
j. Side wall Side Wall Removal/Installation
k. Console Console Removal/Installation
l. Shift lever component (MTX) Manual Transaxle Shift Mechanism Removal/Installation [G66M-R]
m. Selector lever component (ATX) Automatic Transaxle Shift Mechanism Removal/Installation
n. Hood release lever Service and Repair
o. Lower panel Lower Panel Removal/Installation
p. Knee bolster Knee Bolster Removal/Installation
q. Driver-side air bag module Two-Step Deployment Control System Standard Deployment Control System
r. Steering wheel Steering Wheel And Column Removal/Installation - Without Advanced Keyless Entry And Push Button Start System Steering Wheel And Column Removal/Installation - With Advanced Keyless Entry And Push Button Start System
s. Column cover Service and Repair
t. Combination switch Removal and Replacement
u. Joint cover Steering Wheel And Column Removal/Installation - Without Advanced Keyless Entry And Push Button Start System Steering Wheel And Column Removal/Installation - With Advanced Keyless Entry And Push Button Start System
v. Steering shaft Steering Wheel And Column Removal/Installation - Without Advanced Keyless Entry And Push Button Start System Steering Wheel And Column Removal/Installation - With Advanced Keyless Entry And Push Button Start System
w. Center panel Center Panel Removal/Installation
x. Audio unit Audio Unit Removal/Installation
y. Climate control unit Full-Auto Air Conditioner
z. Instrument cluster Removal and Replacement
aa. Center cover Center Cover Removal/Installation
ab. Dashboard upper panel Dashboard Upper Panel Removal/Installation
ac. Hole cover Hole Cover Removal/Installation
ad. Information display Information Display Removal/Installation
ae. A-pillar trim A-Pillar Trim Removal/Installation
af. Front fender molding Cowl Grille Removal/Installation
ag. Windshield wiper arm and blade Windshield Wiper Arm And Blade Removal/Installation
ah. Cowl grille Cowl Grille Removal/Installation
ai. Windshield wiper motor Windshield Wiper Motor Removal/Installation
aj. Rear heat duct (1) Service and Repair
ak. Shower ducts Removal and Replacement
al. Heater case Removal and Replacement
5. Remove the nuts and bolts for installing the dashboard to the body.
6. Remove the nuts and bolts for installing the A/C unit to the dashboard.
7. Remove the accelerator pedal. Service and Repair Service and Repair
8. Disconnect the following connectors:
- Blower motor connector
- Power MOS FET connector
- Evaporator temperature sensor connector
- Air intake actuator connector
- Air mix actuator connector
- Airflow mode actuator connector
9. Remove the dashboard. Dashboard Removal/Installation

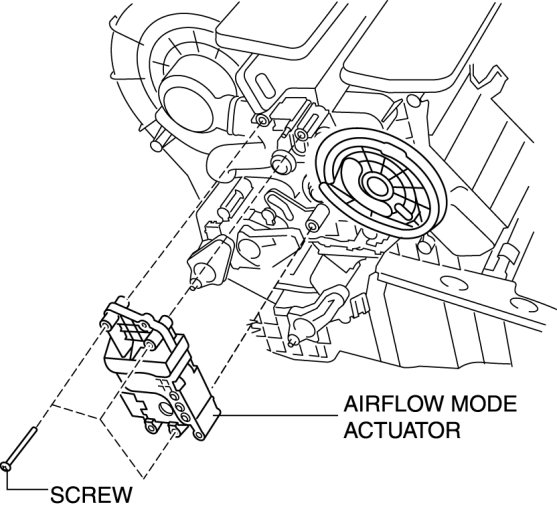

10. Remove the airflow mode rod from the airflow mode actuator.
11. Remove the screw.
12. Remove the airflow mode actuator. (See Airflow Mode Actuator Disassemble Note.)
13. Install in the reverse order of removal.
Airflow Mode Actuator Disassemble Note

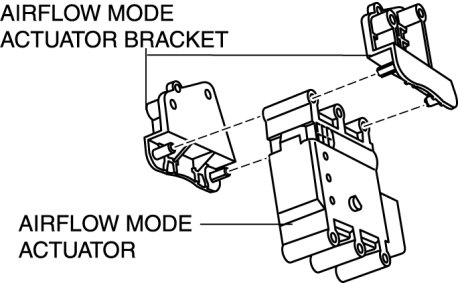

1. Remove the airflow mode actuator bracket as shown in the figure.
