Quick Diagnostic Chart

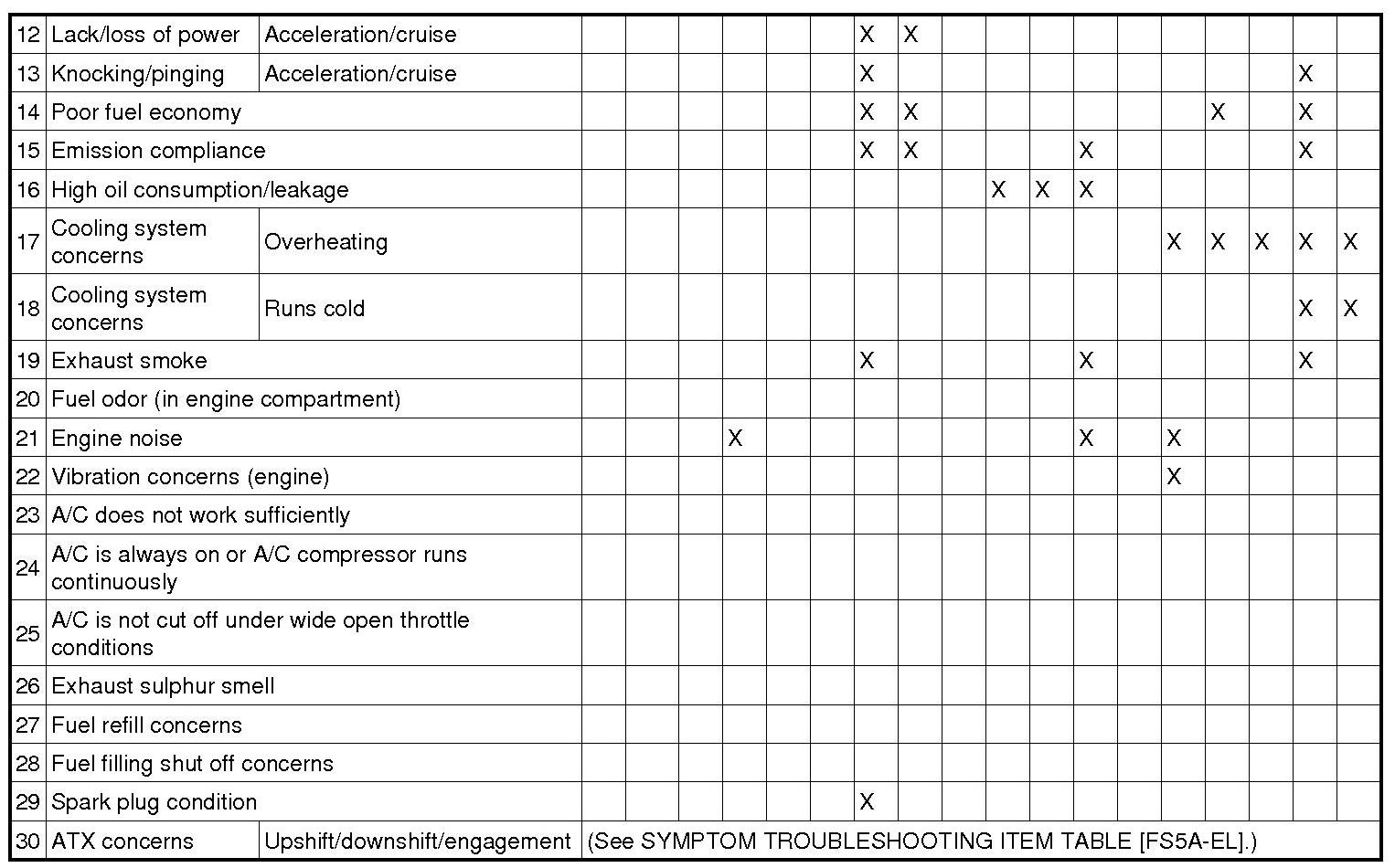

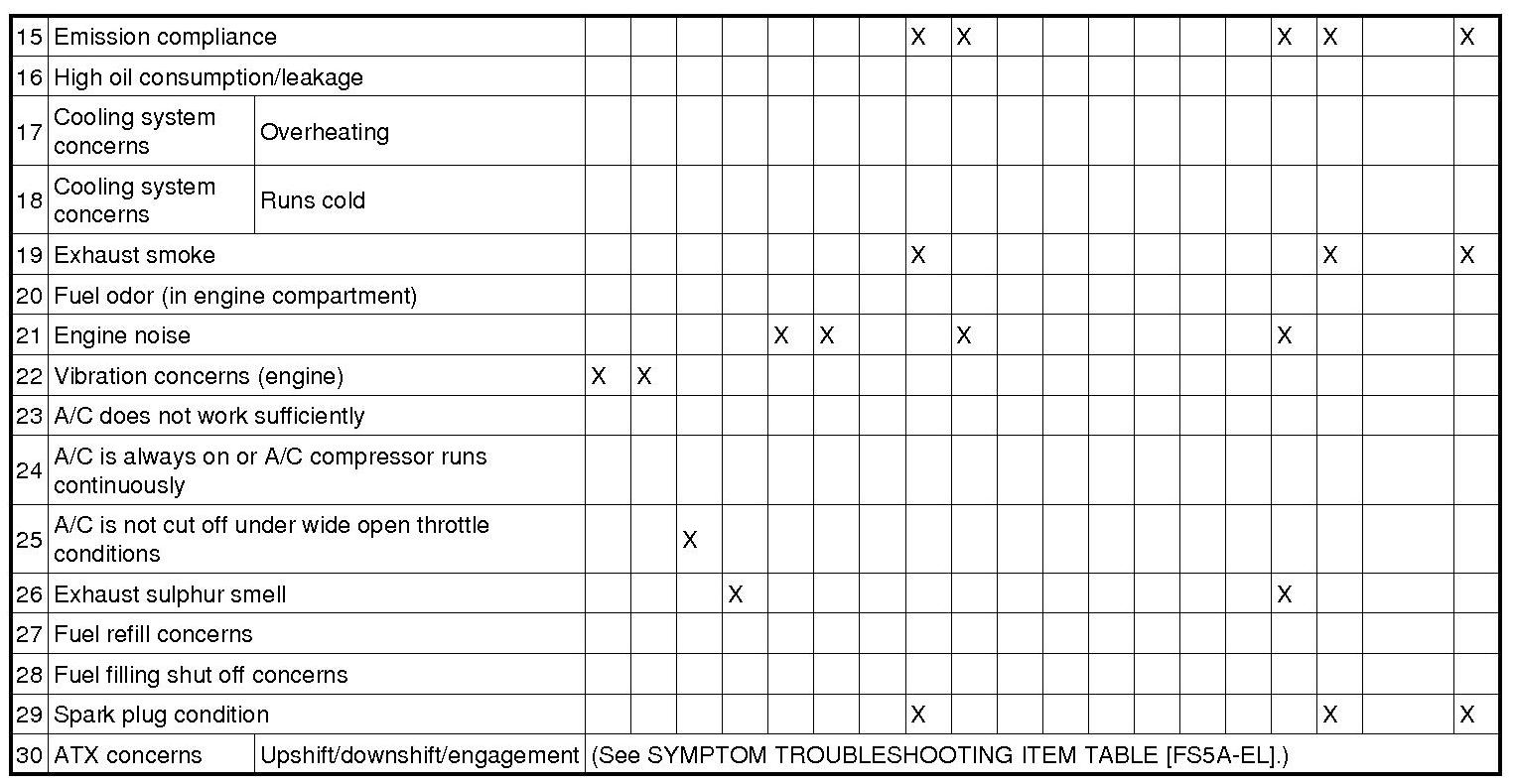

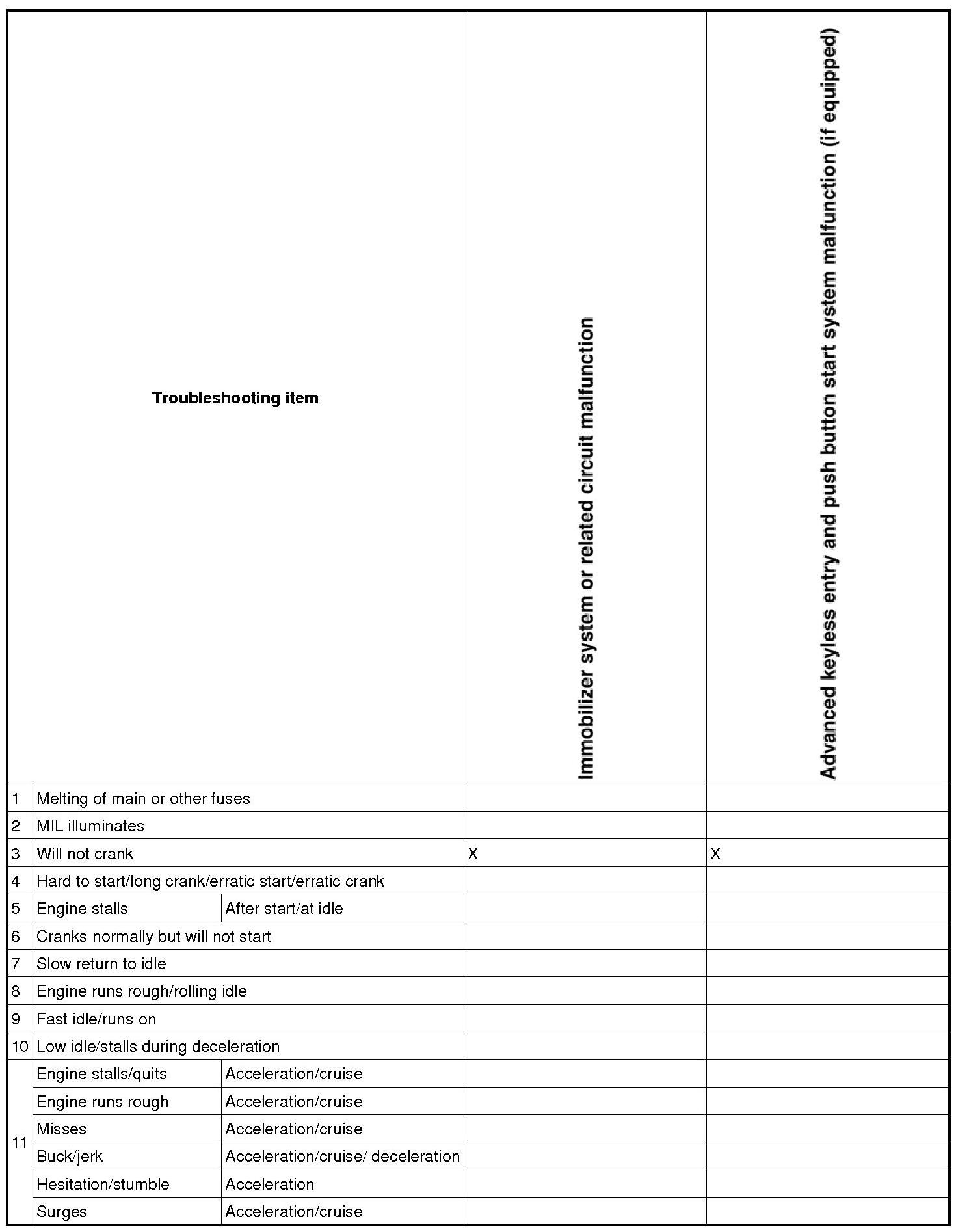

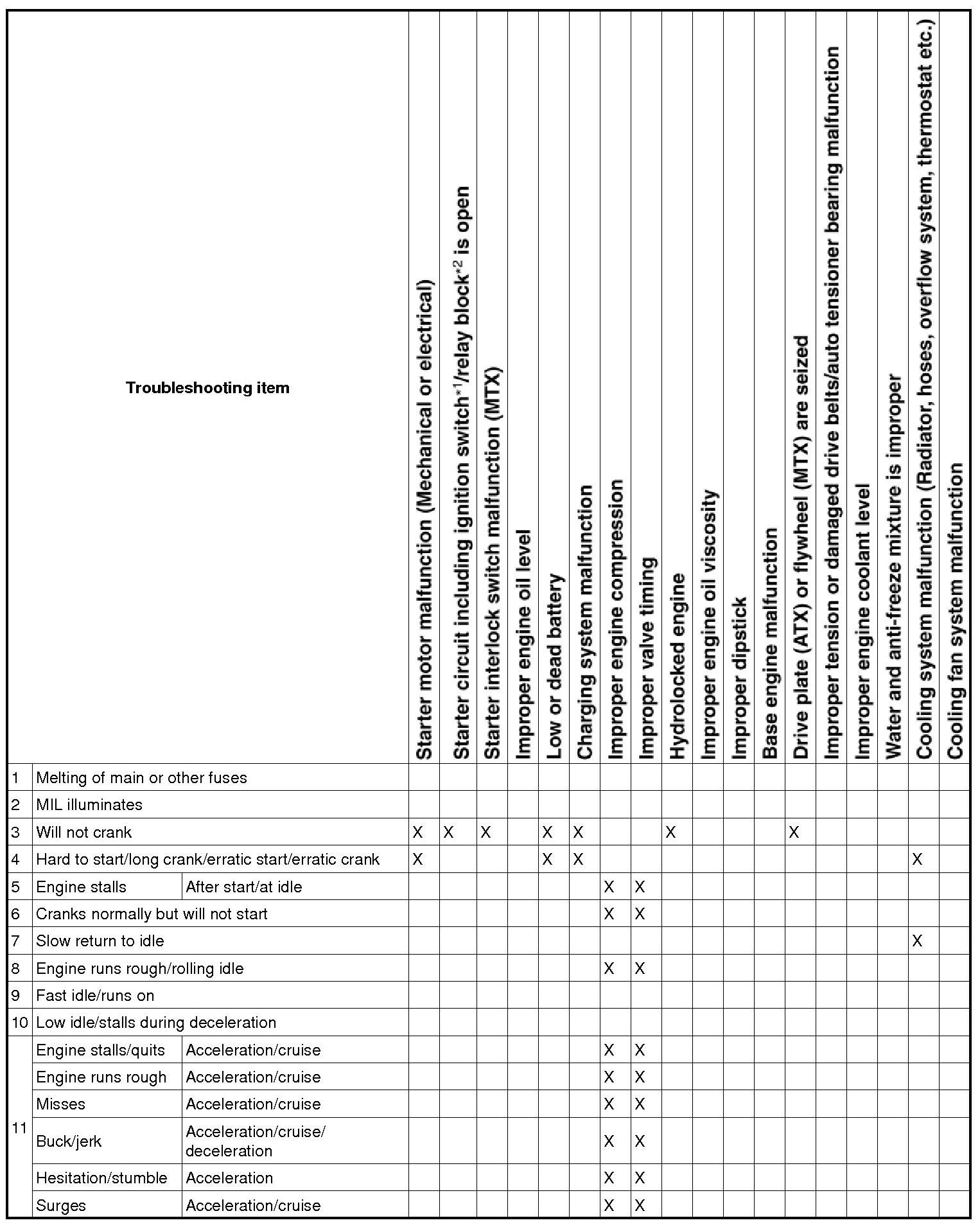

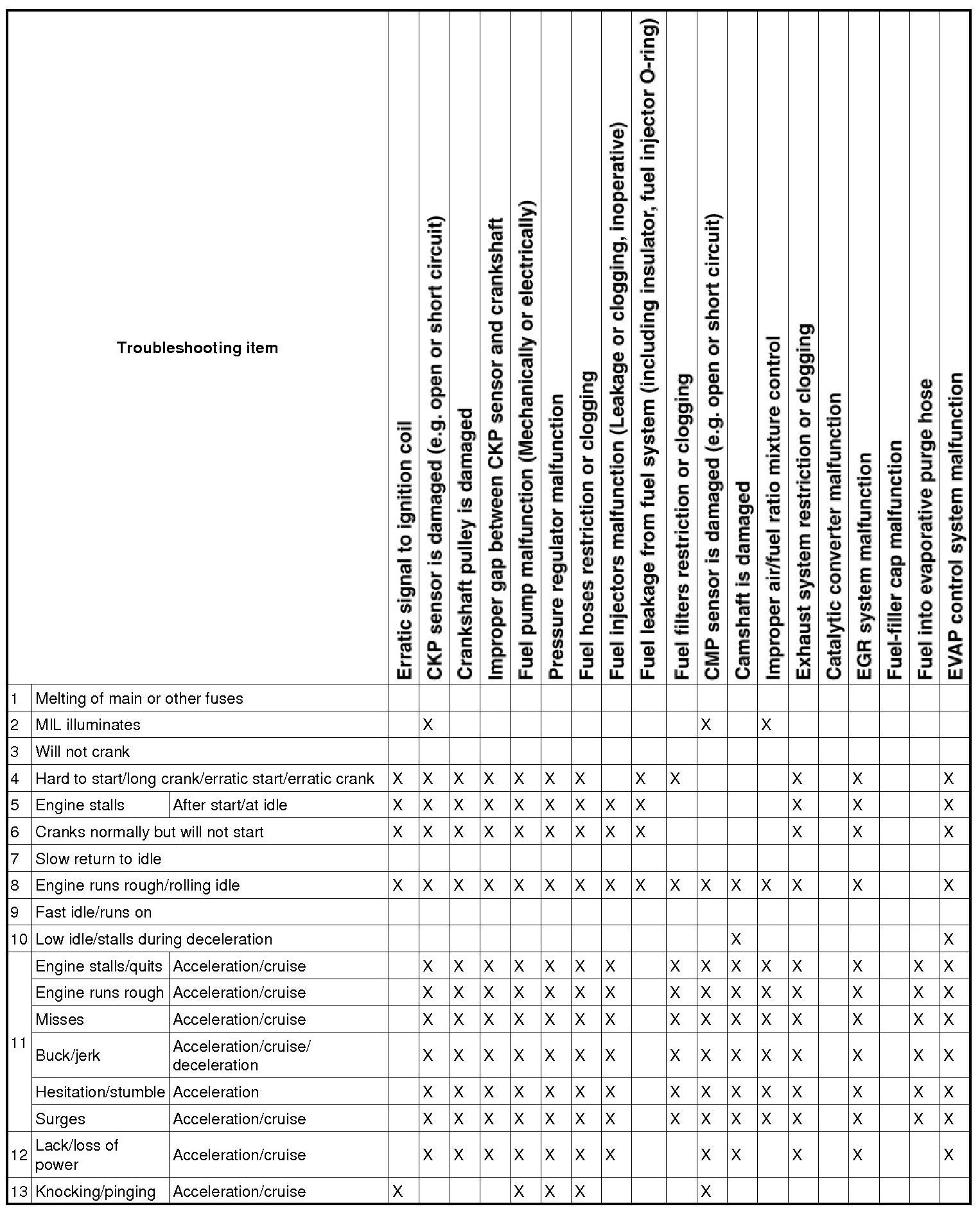

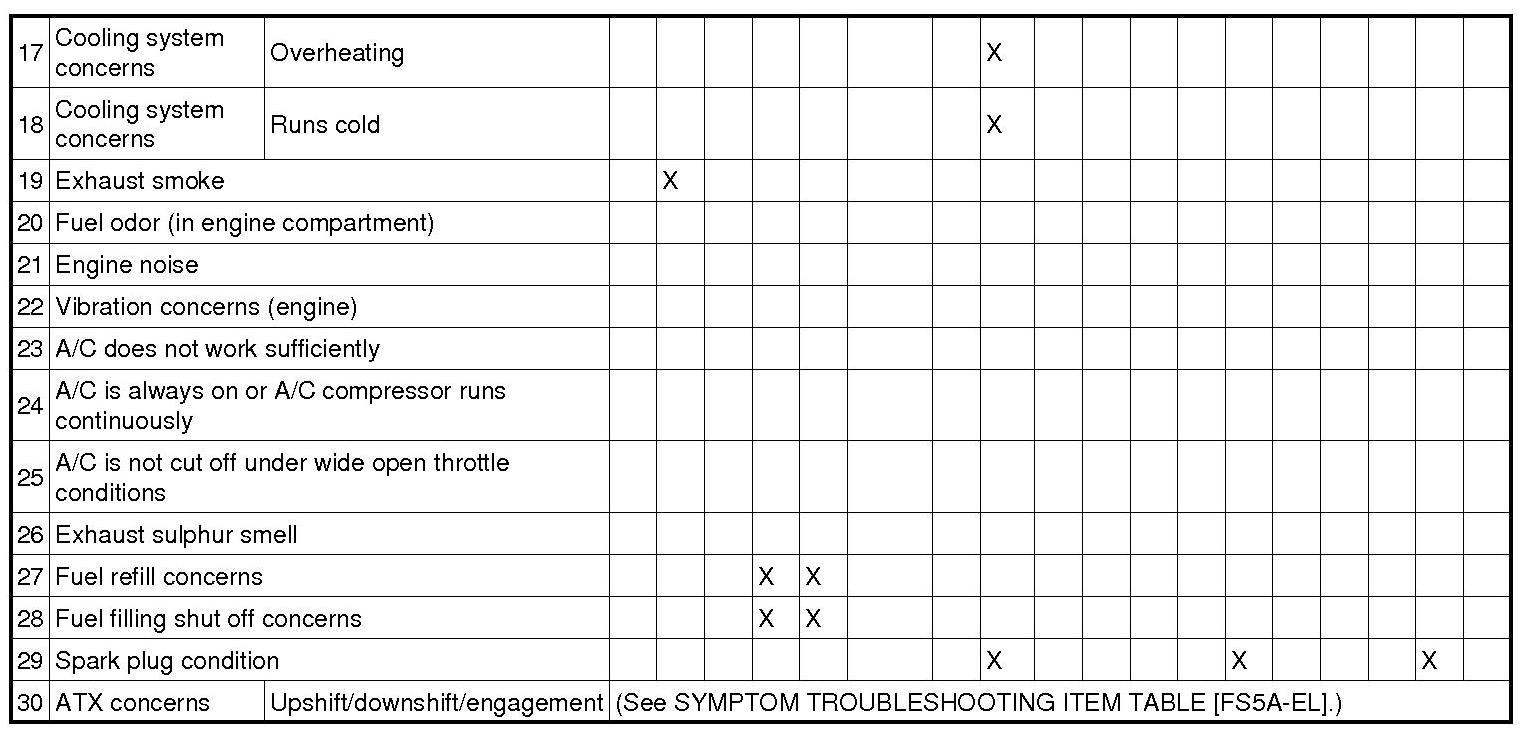

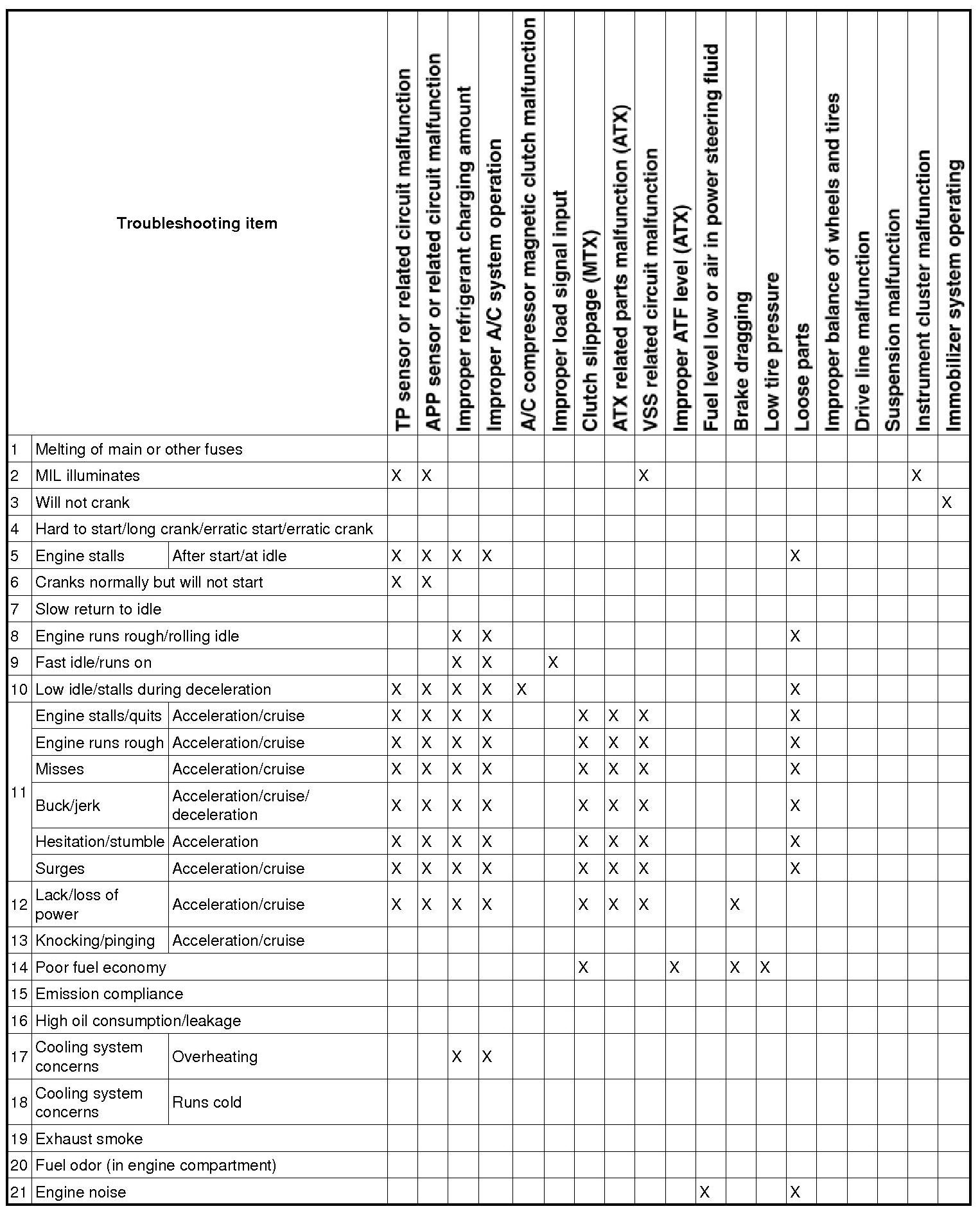

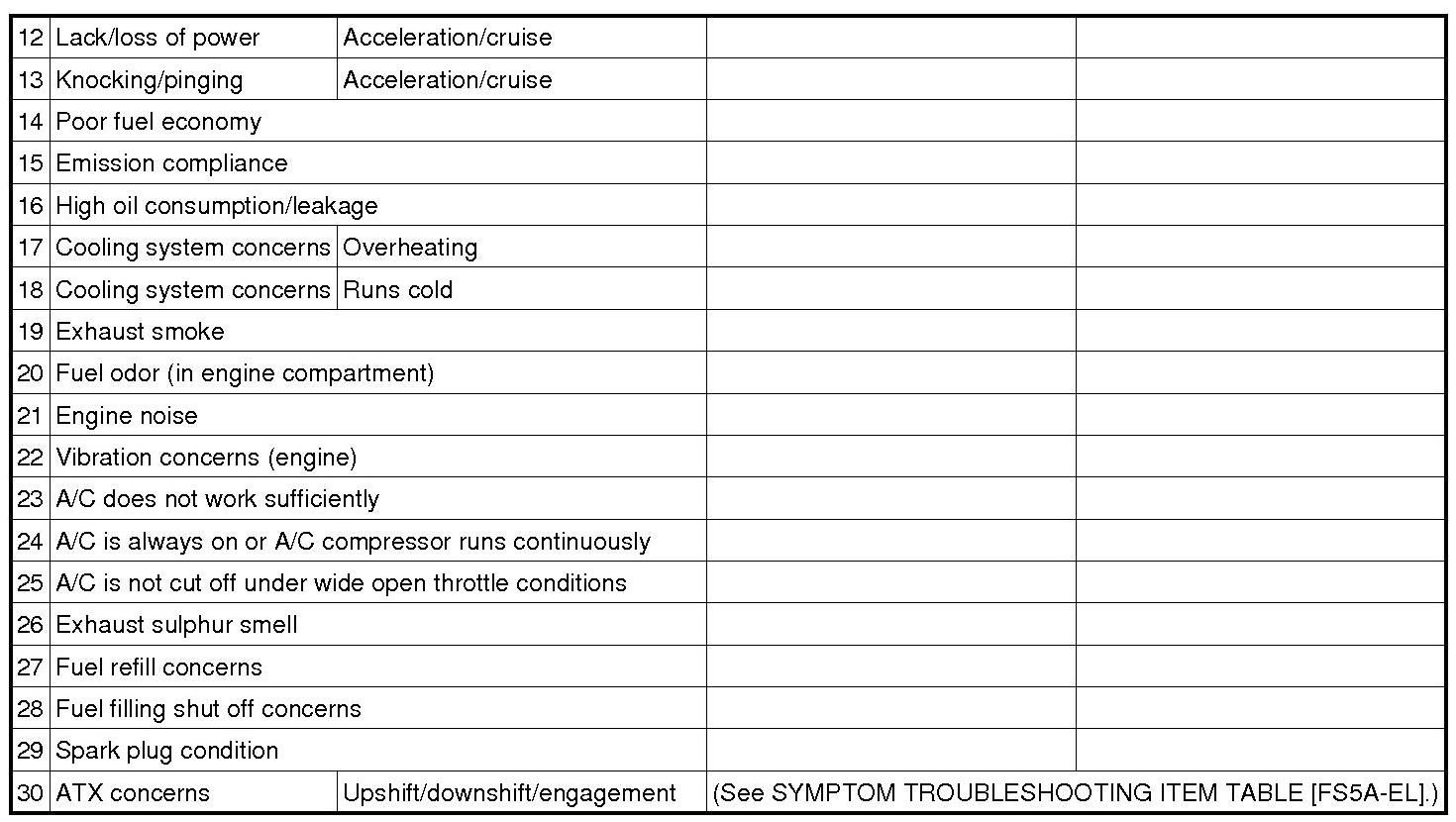

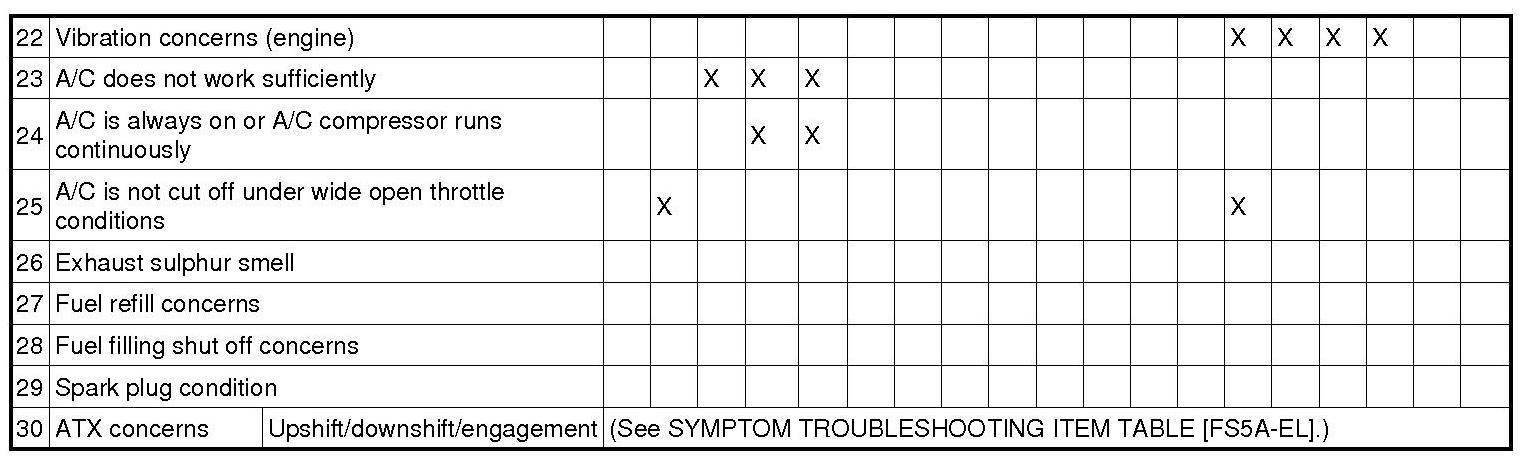

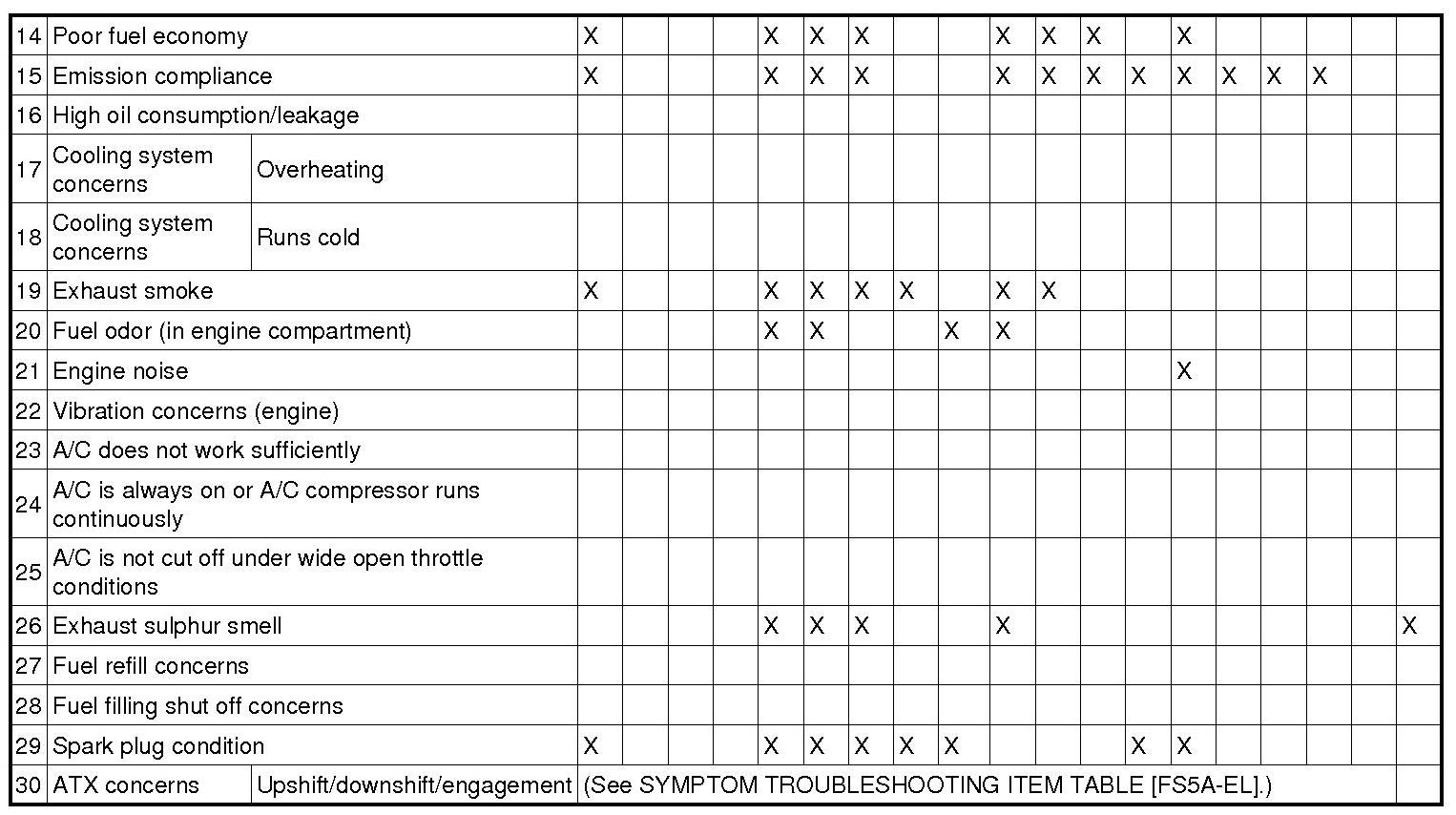

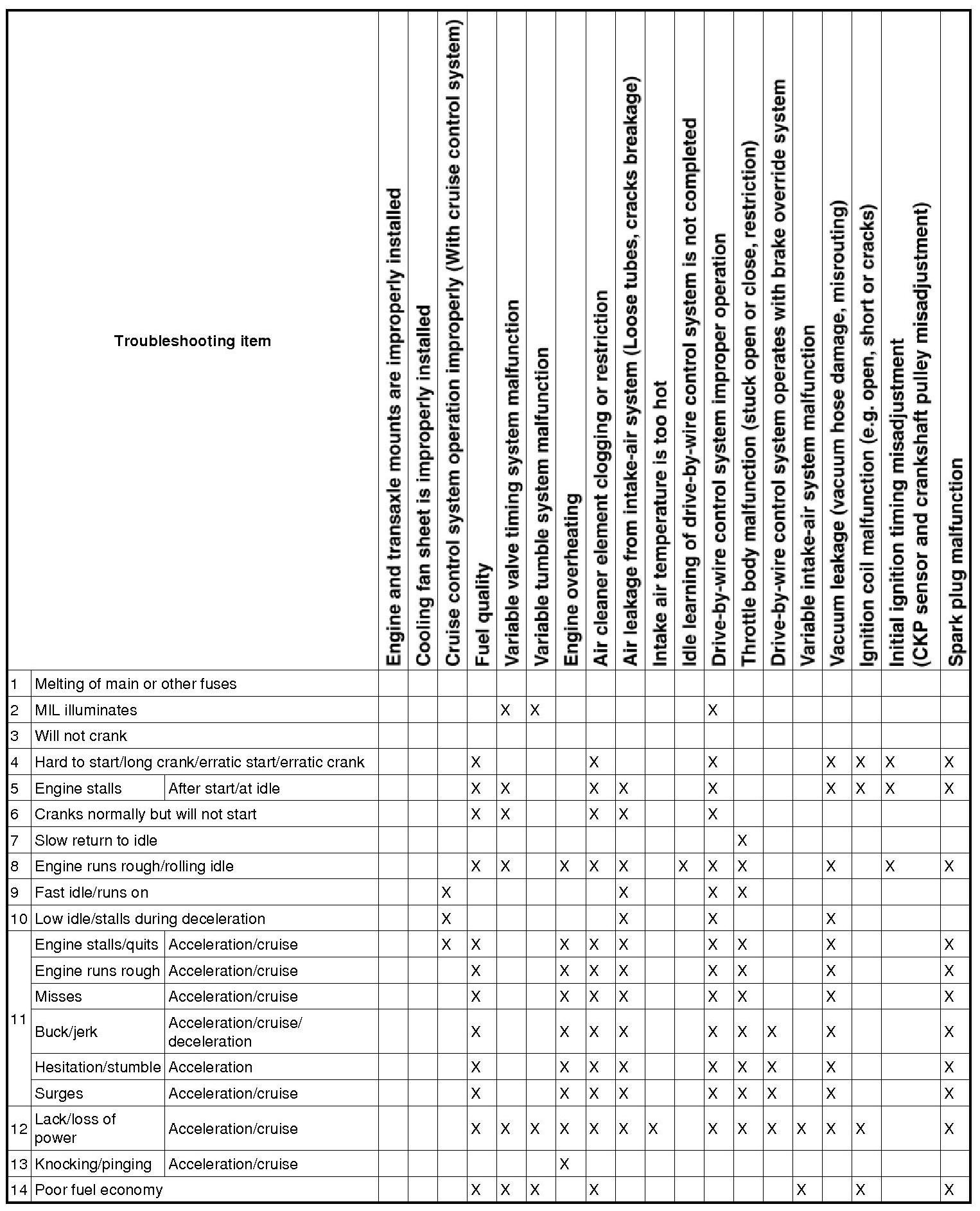

QUICK DIAGNOSTIC CHART [MZR 2.0, MZR 2.5]
X: Applied









*1
Vehicles without advanced keyless entry and push button start system
*2
Vehicles with advanced keyless entry and push button start system
X: Applied









X: Applied









X: Applied









X: Applied









X: Applied
