No. 4 Hard To Start/Long Crank/Erratic Start/Erratic Crank

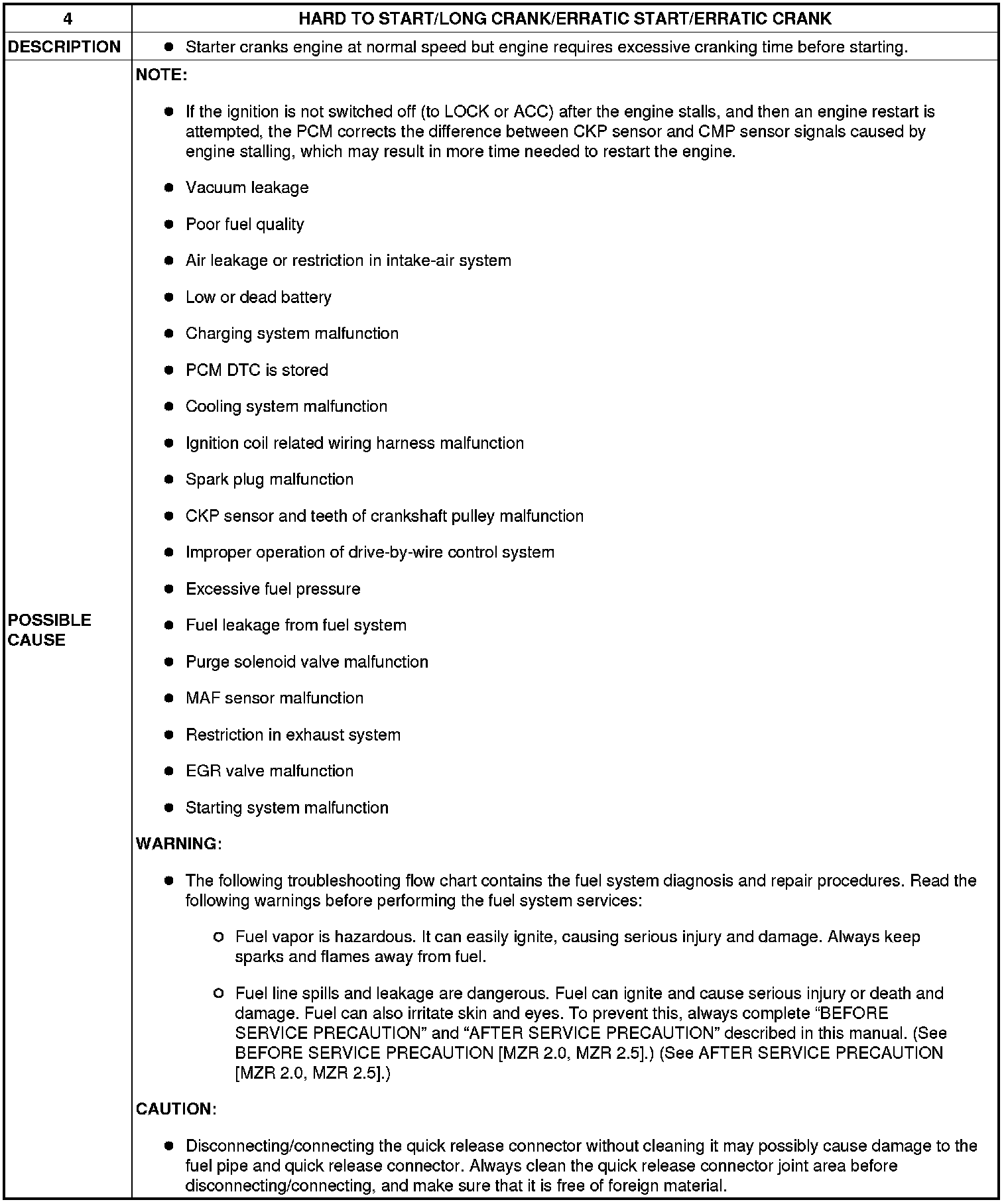

NO.4 HARD TO START/LONG CRANK/ERRATIC START/ERRATIC CRANK [MZR 2.0, MZR 2.5]

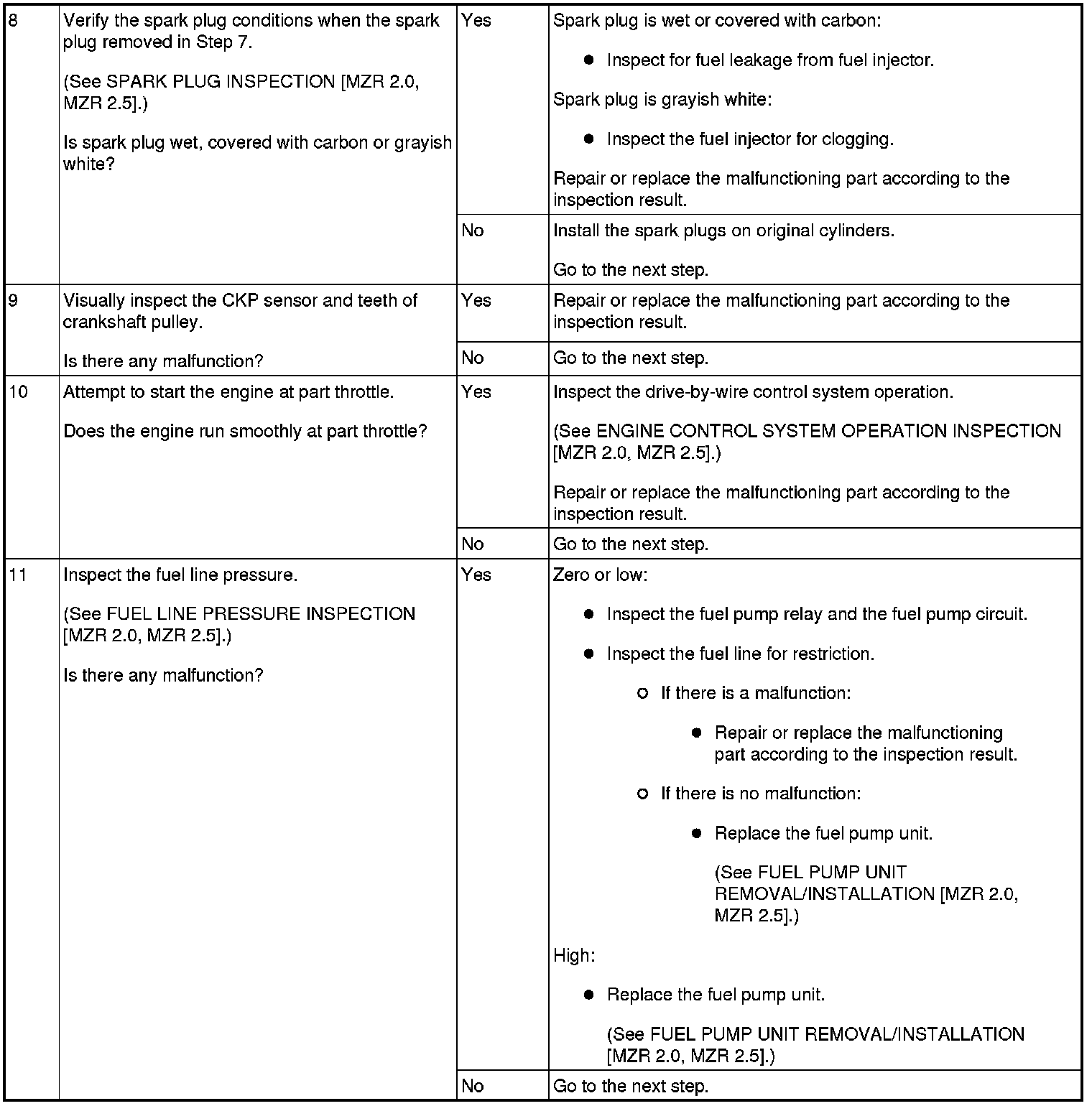

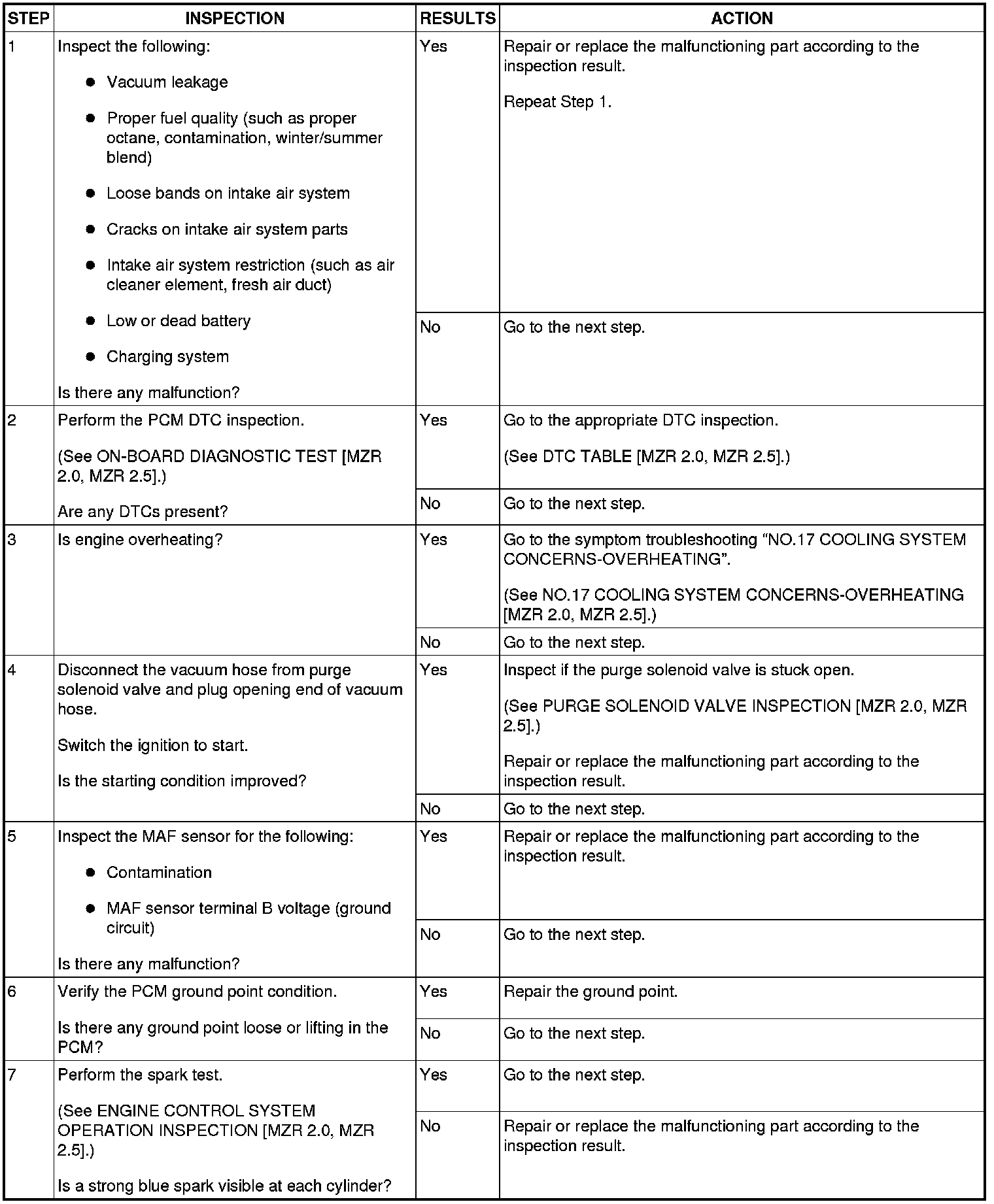

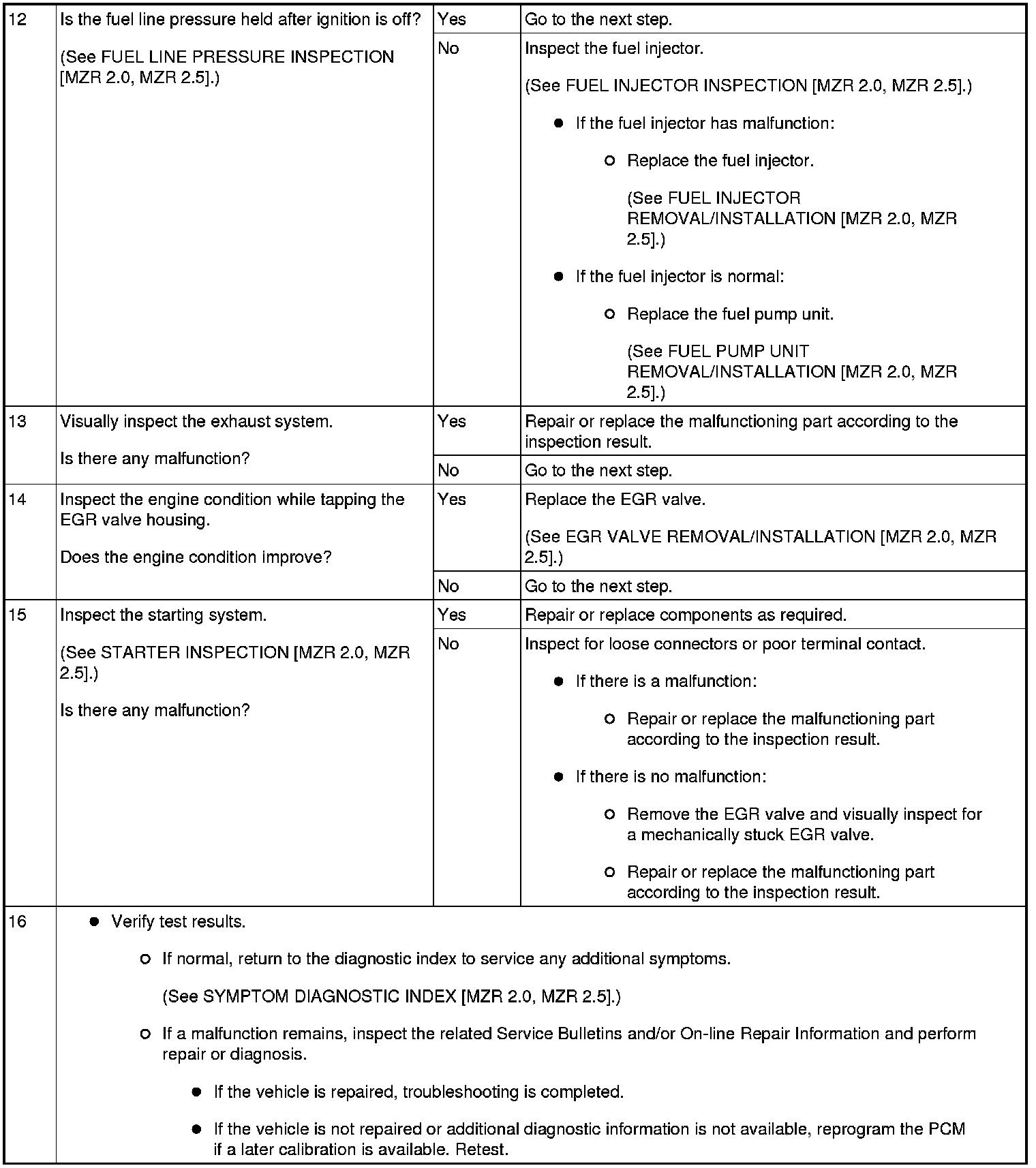

Diagnostic procedure
