No. 20 Fuel Odor (In Engine Compartment)
No. 20 Fuel Odor (In Engine Compartment)

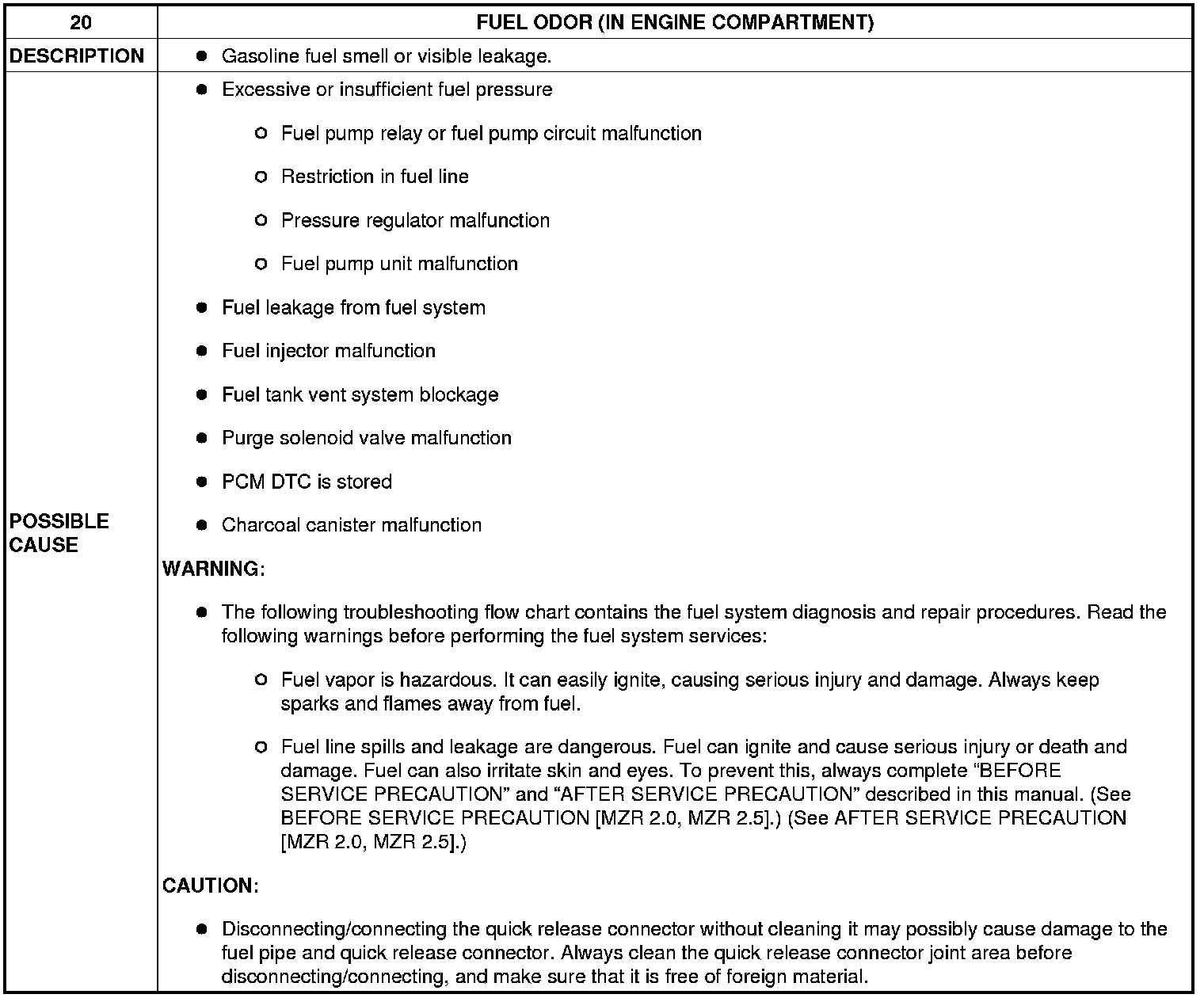

NO.20 FUEL ODOR (IN ENGINE COMPARTMENT) [MZR 2.0, MZR 2.5]

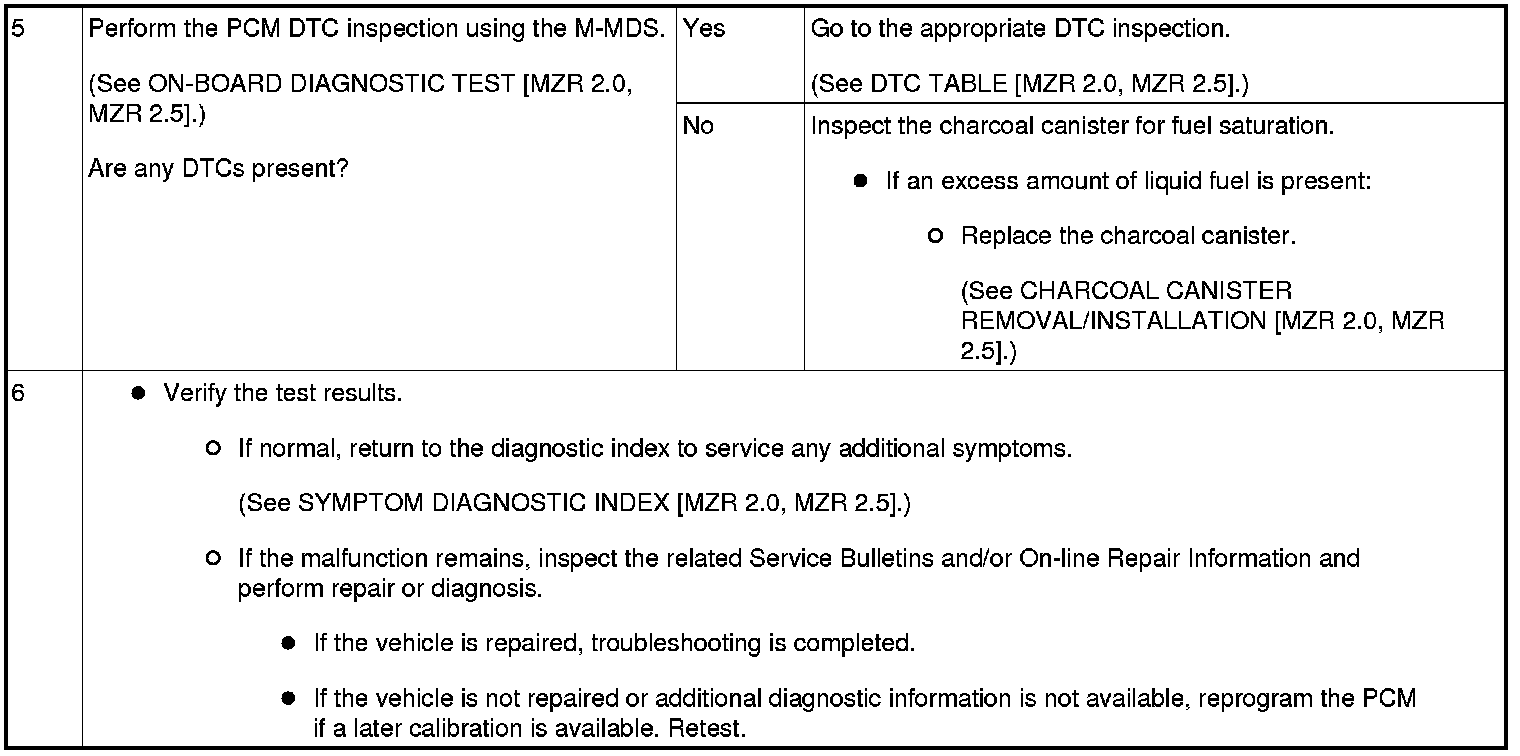

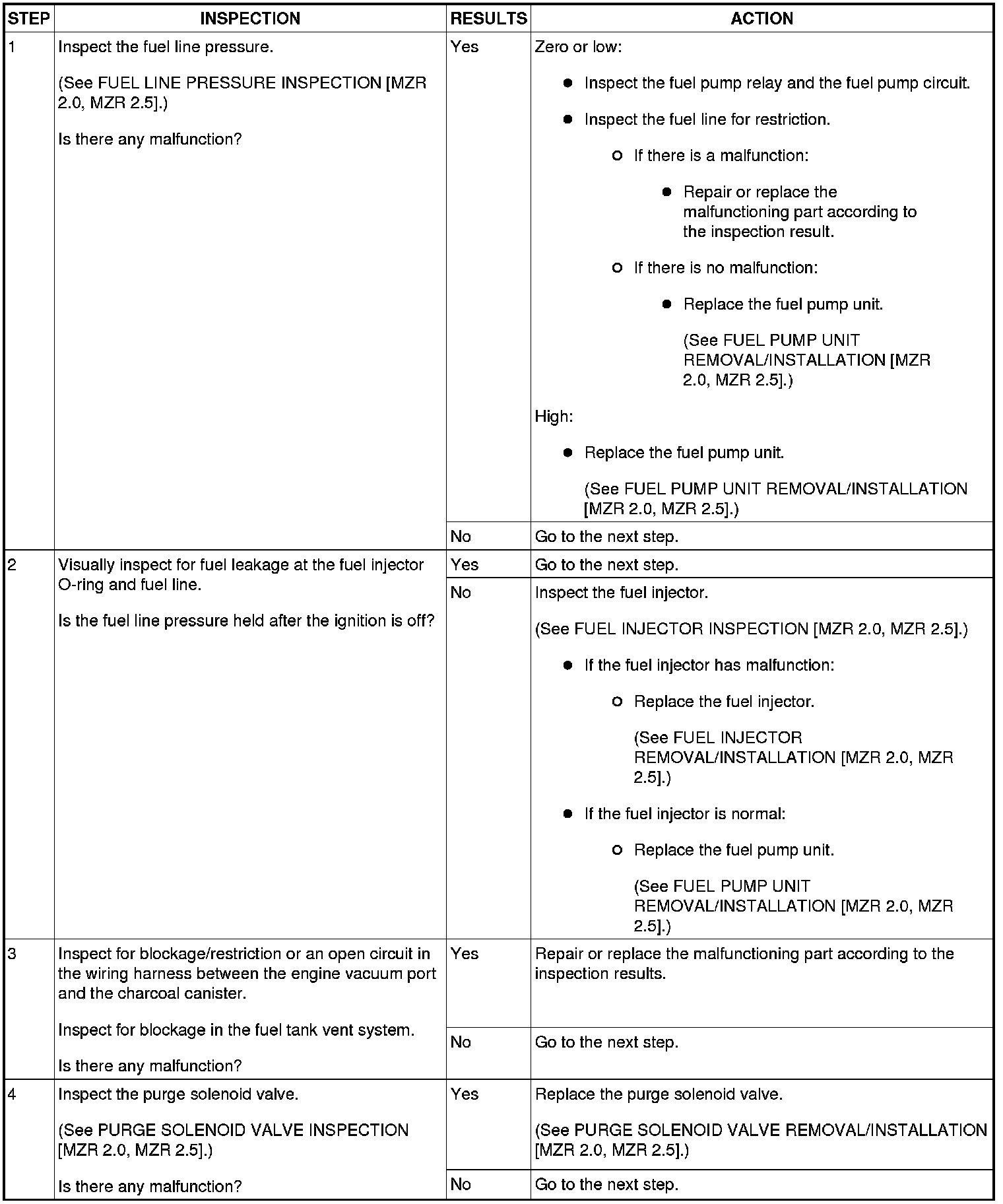

Diagnostic procedure
