FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mazda
>>
2012
>>
3 L4-2.0L (MZR)
>>
Repair and Diagnosis
>>
Engine, Cooling and Exhaust
>>
Engine
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
No. 12 Lack/Loss Of Power-Acceleration/Cruise
No. 12 Lack/Loss Of Power-Acceleration/Cruise
NO.12 LACK/LOSS OF POWER-ACCELERATION/CRUISE [MZR 2.0, MZR 2.5]

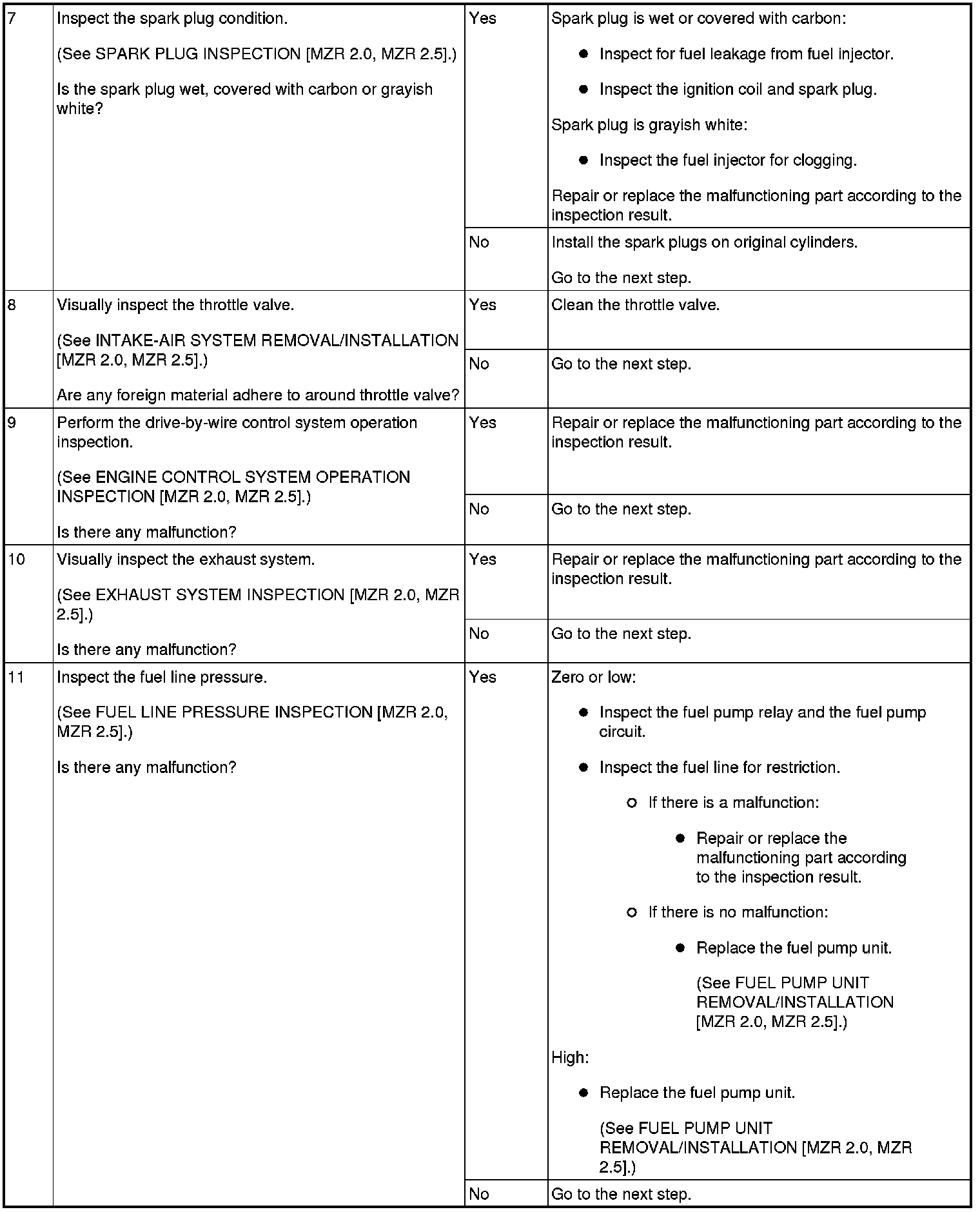

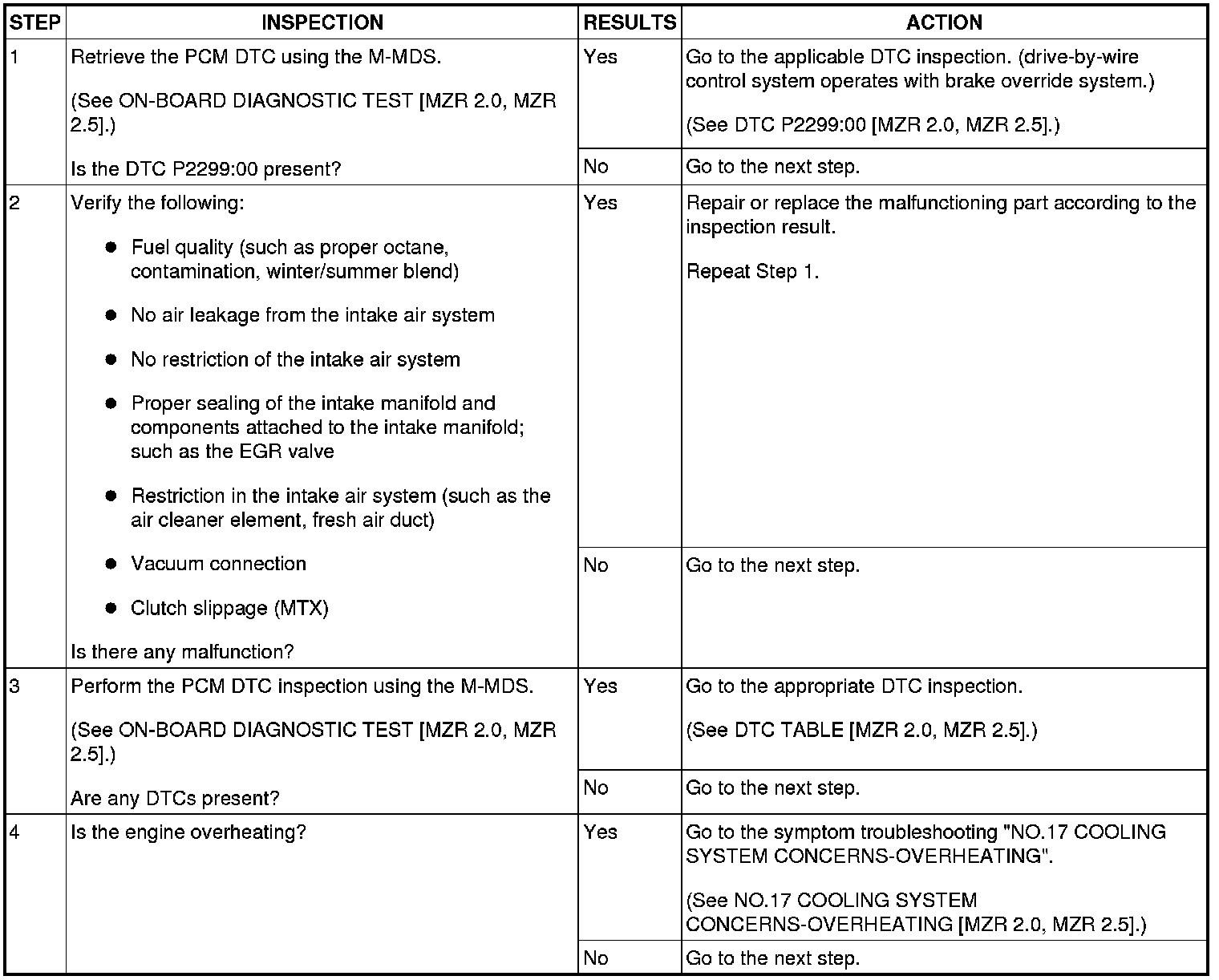

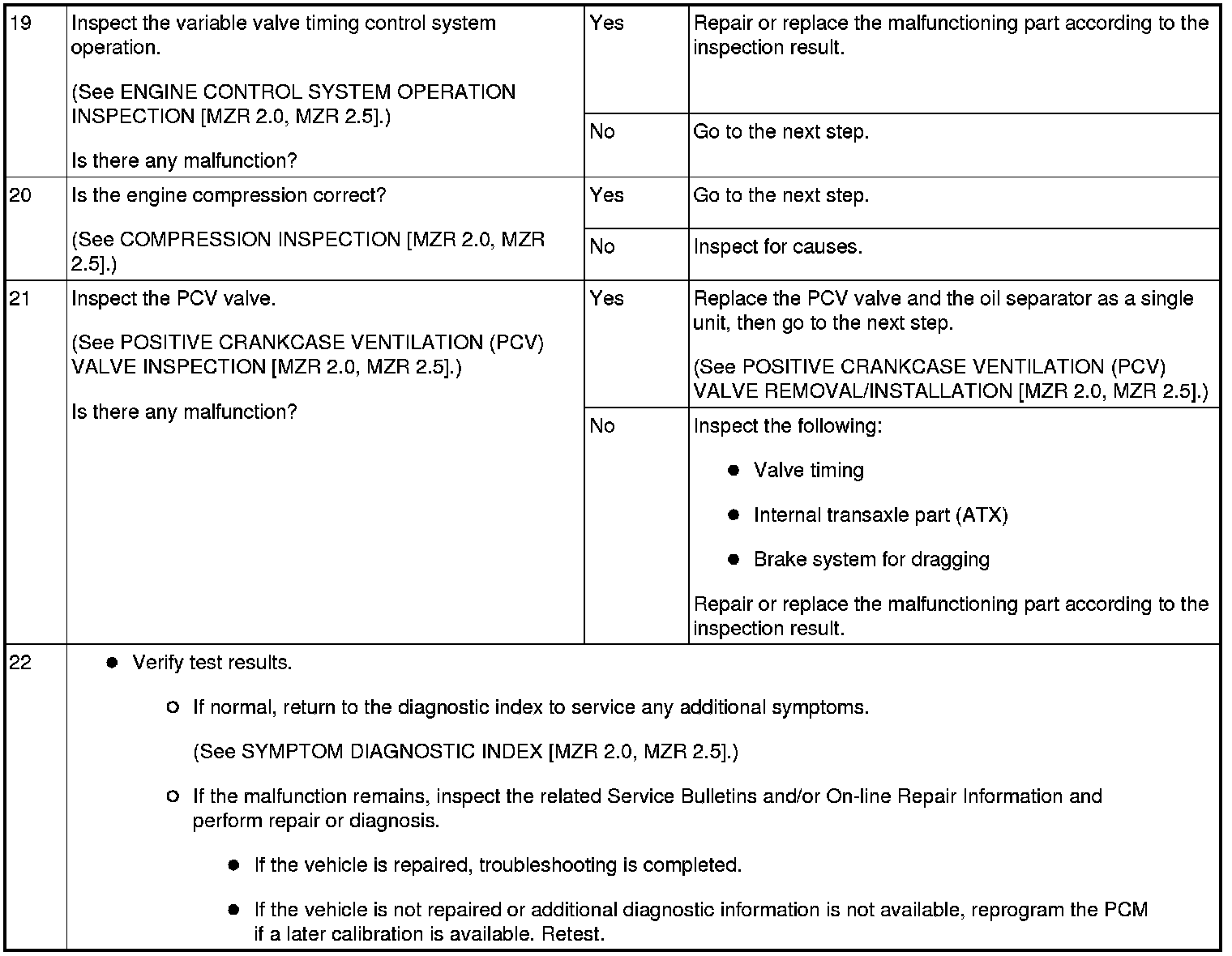

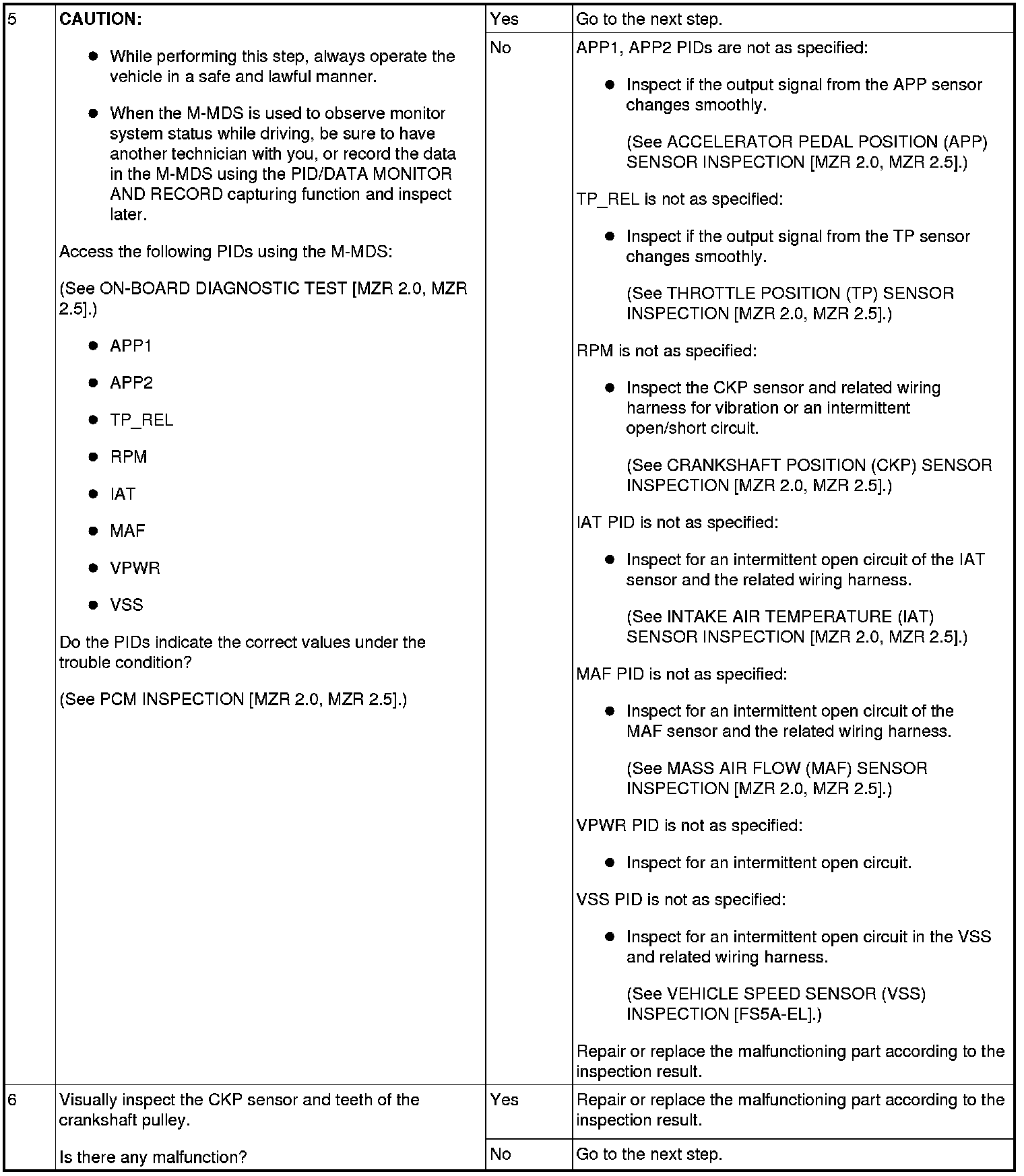

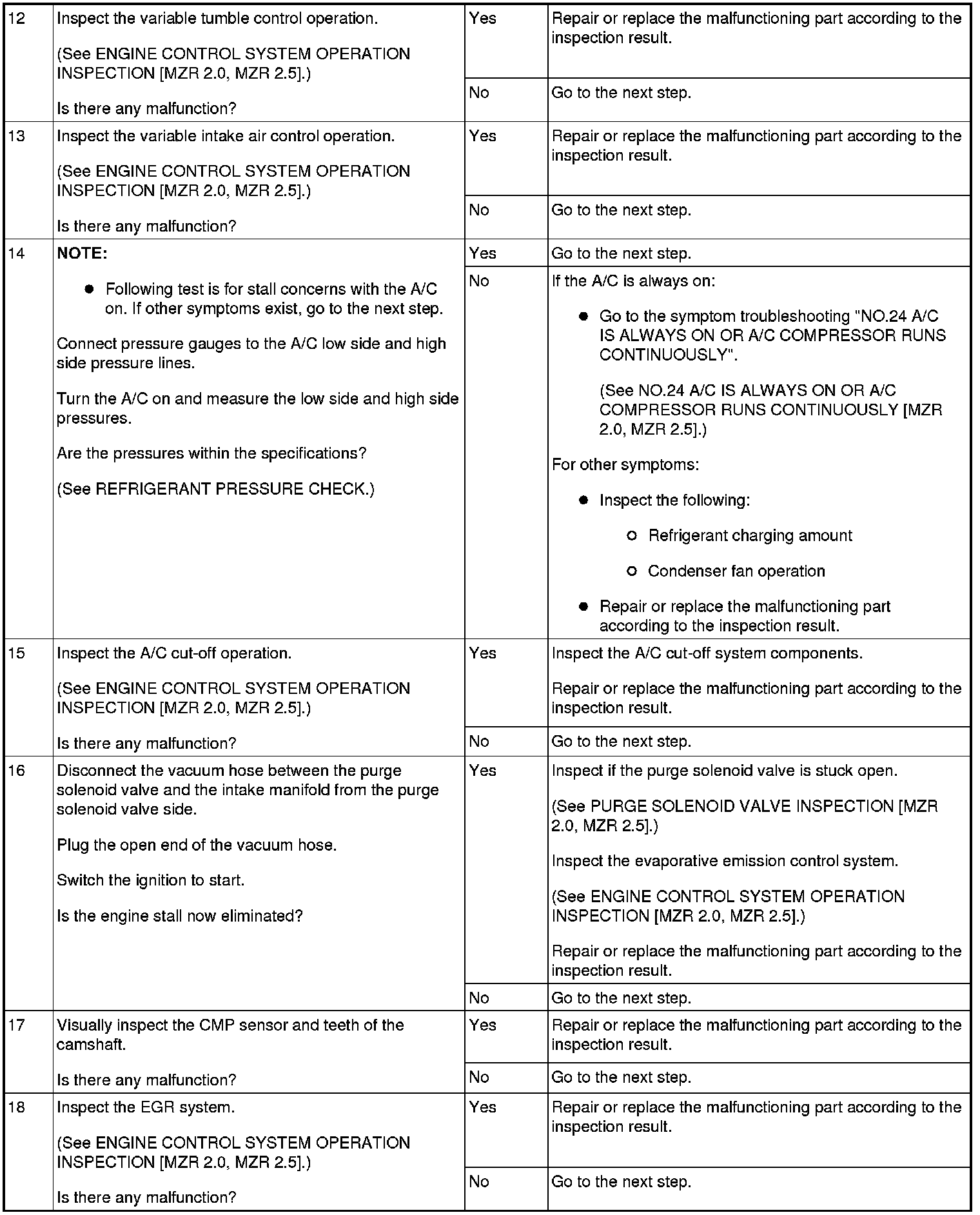

Diagnostic procedure
