Home >> Mazda >> 2012 >> 3 L4-2.0L (MZR) >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> No. 11 Engine Stalls/Quits, Engine Runs Rough, Misses, Buck/Jerk, Hesitation/Stumble, Surges

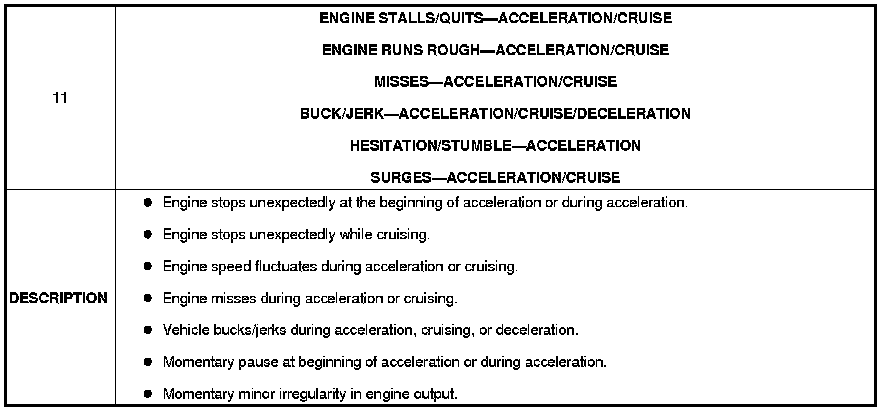

No. 11 Engine Stalls/Quits, Engine Runs Rough, Misses, Buck/Jerk, Hesitation/Stumble, Surges





NO.11 ENGINE STALLS/QUITS, ENGINE RUNS ROUGH, MISSES, BUCK/JERK, HESITATION/STUMBLE, SURGES [MZR 2.0, MZR 2.5]

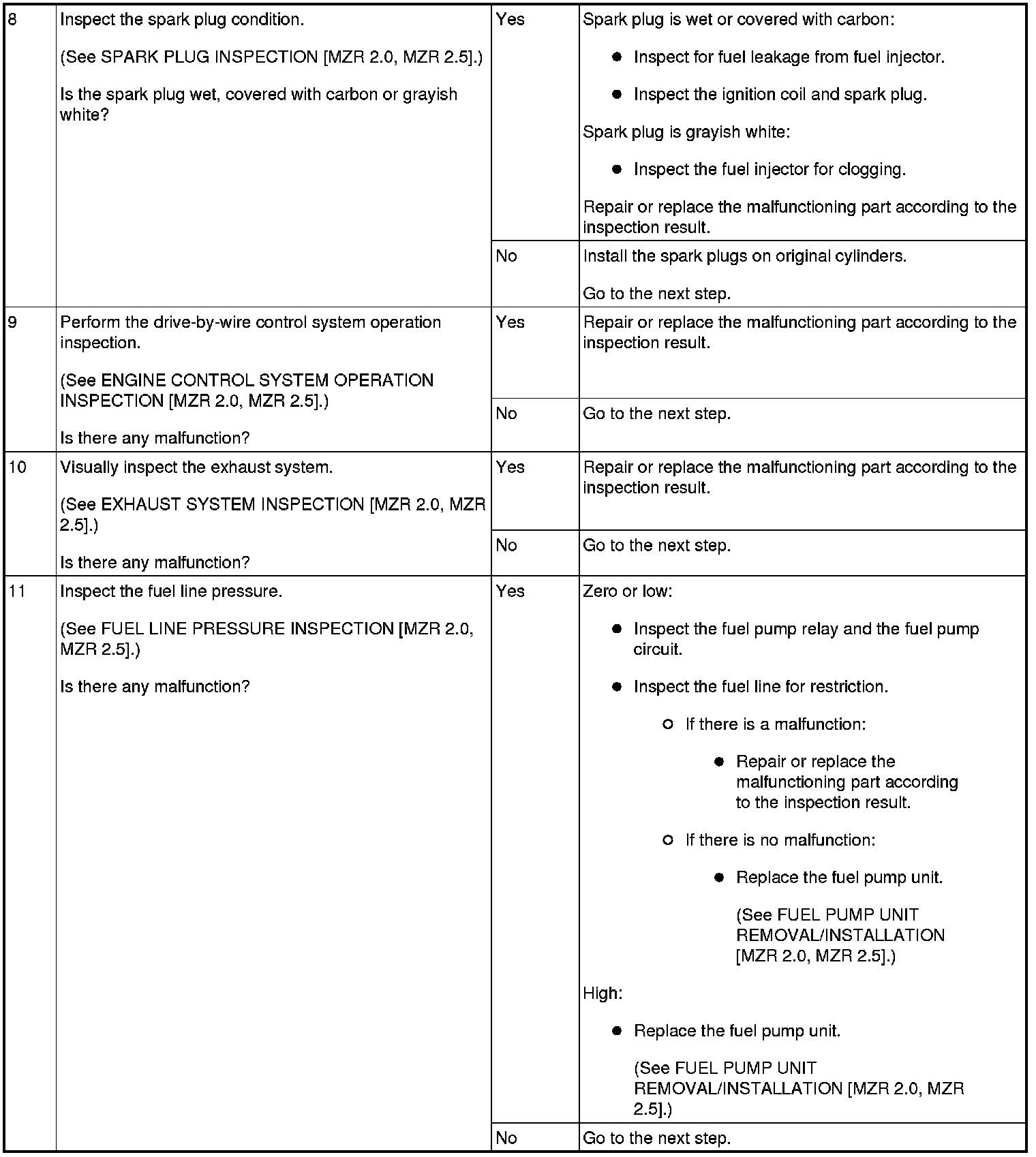

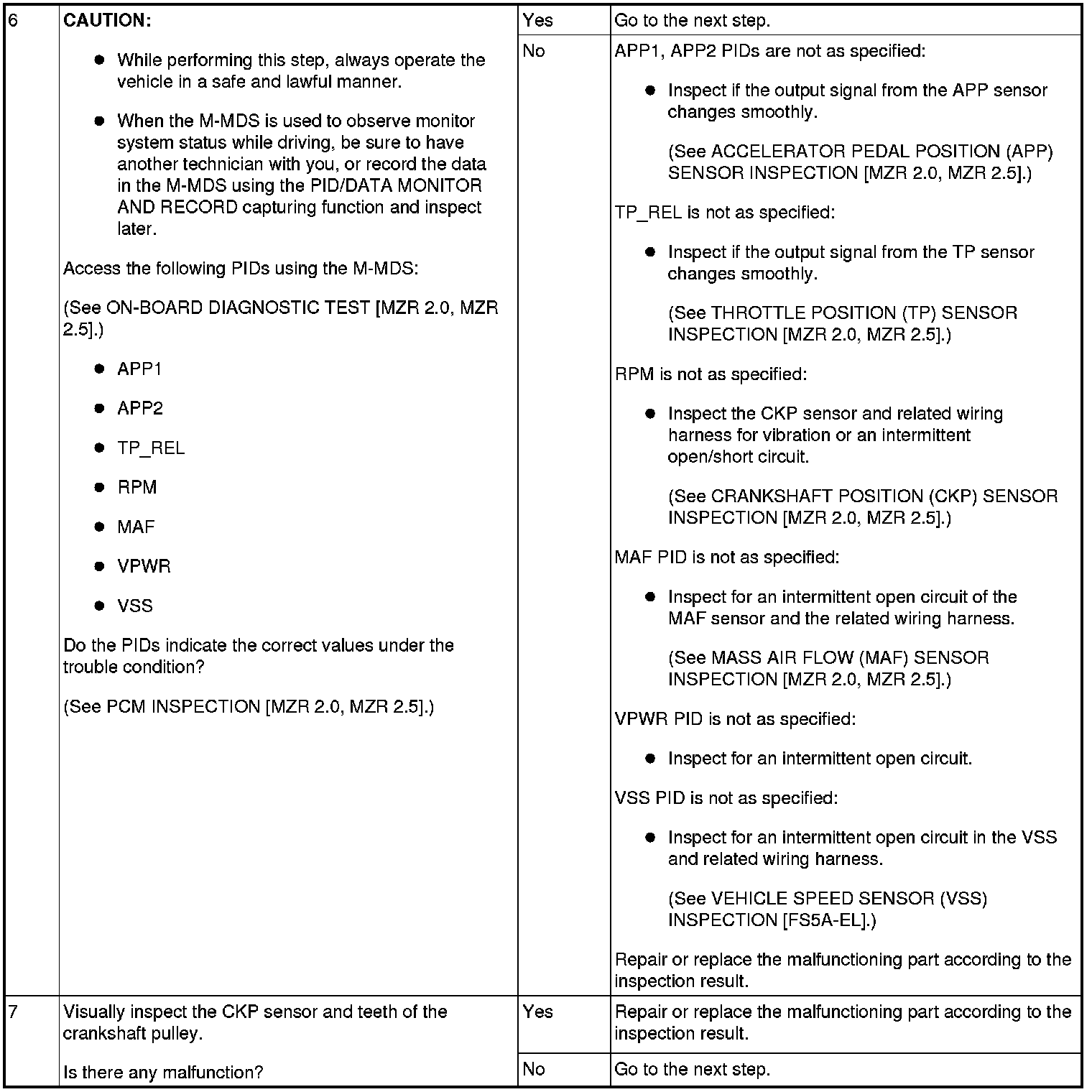

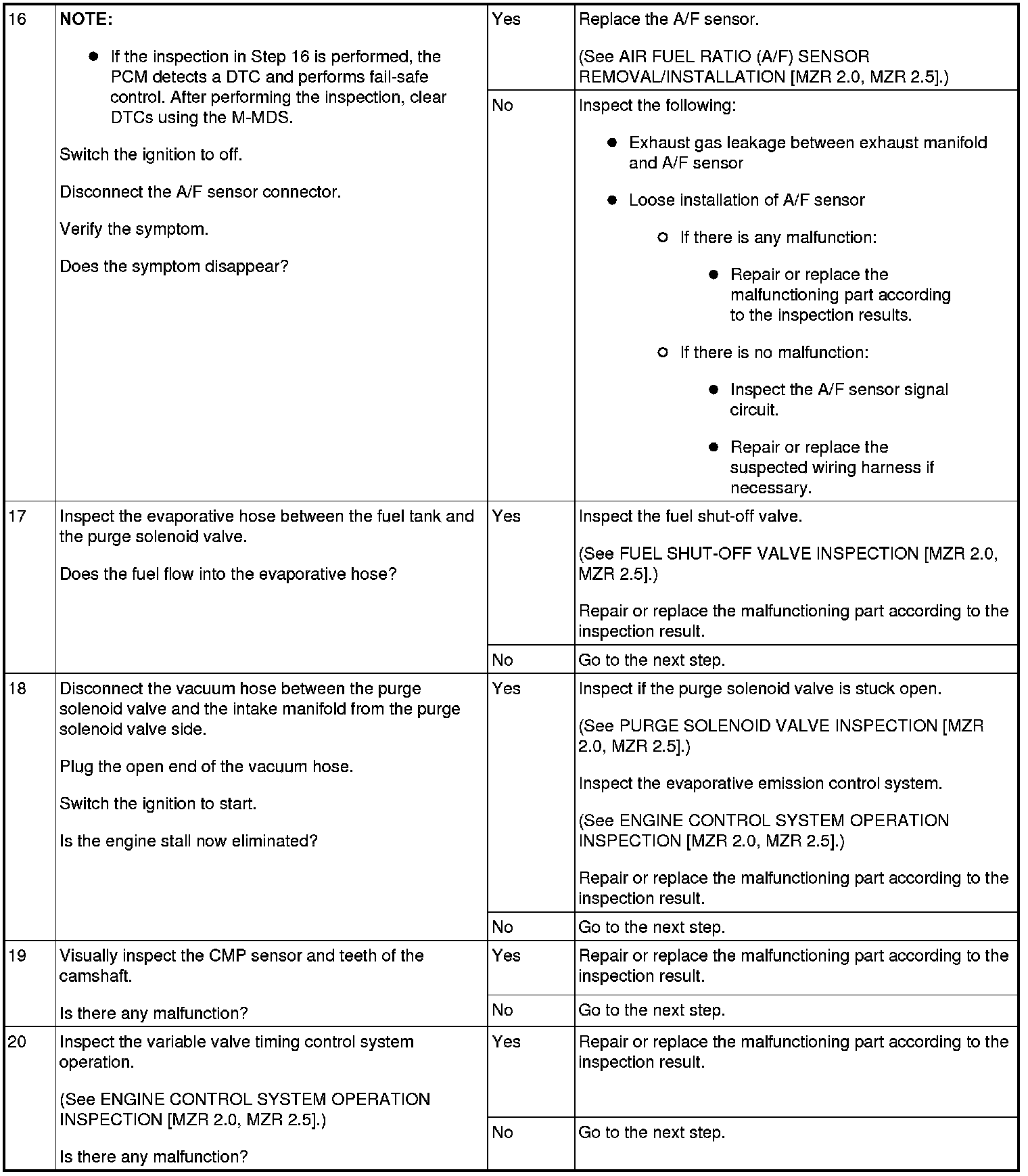

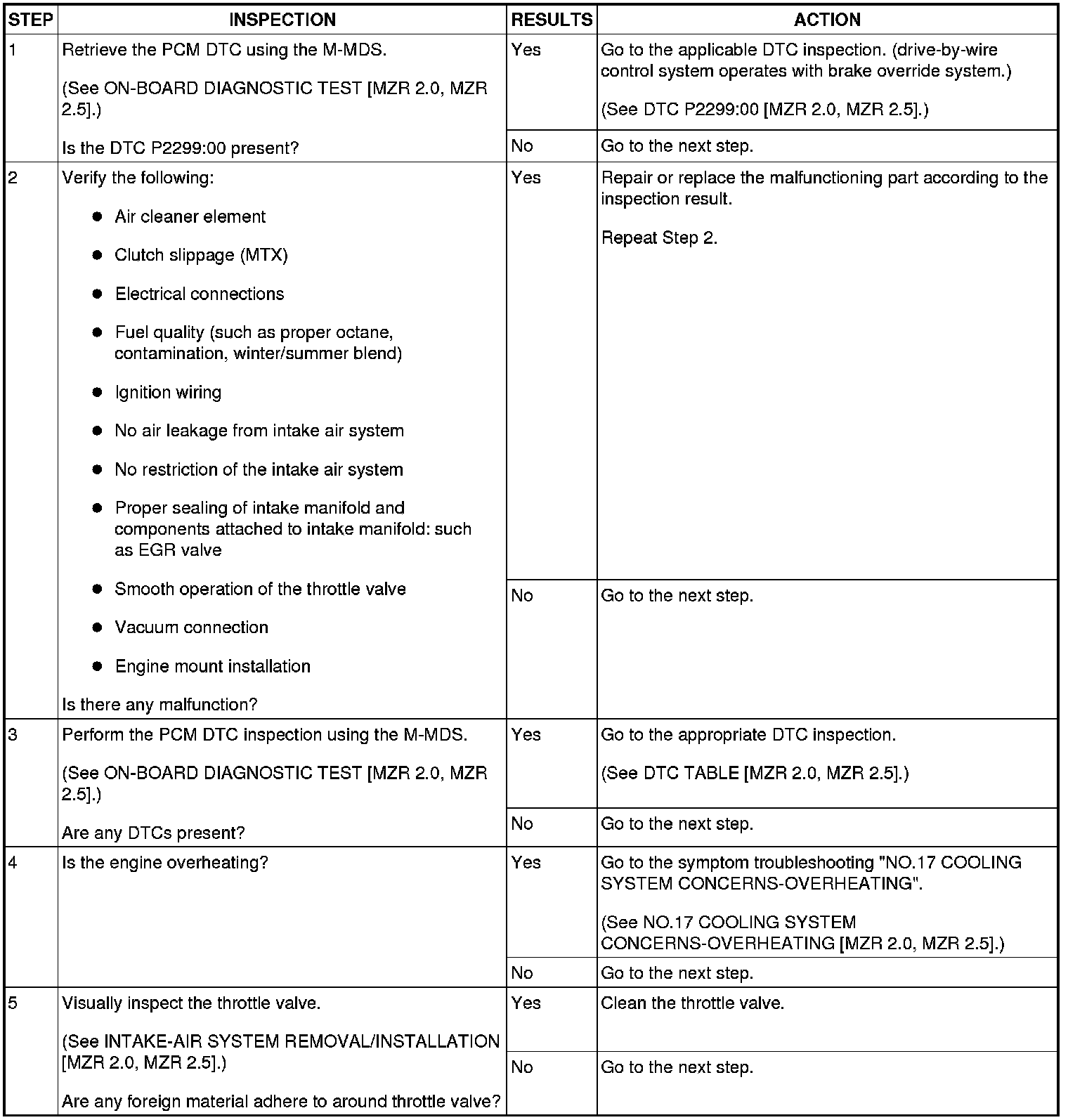

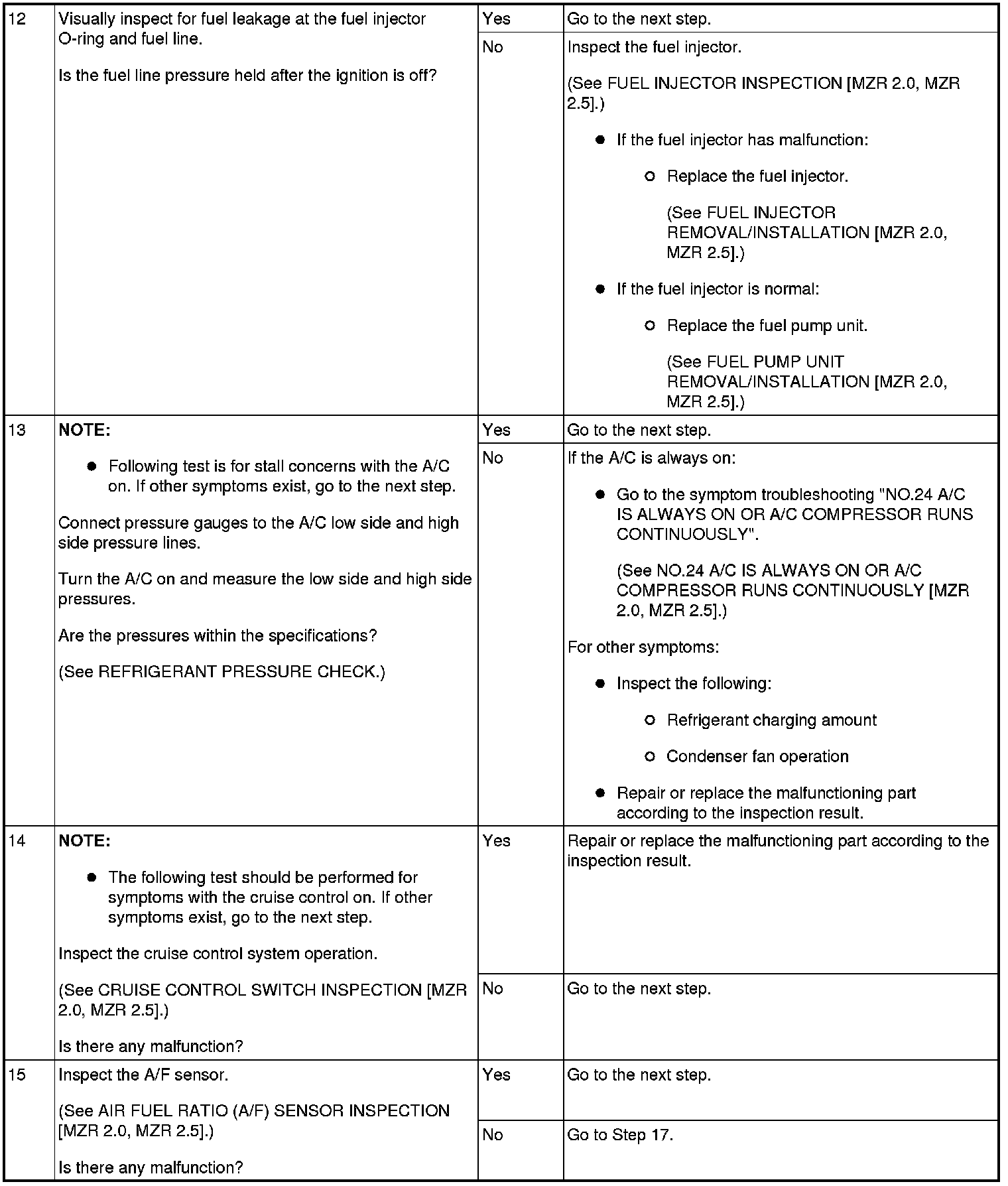

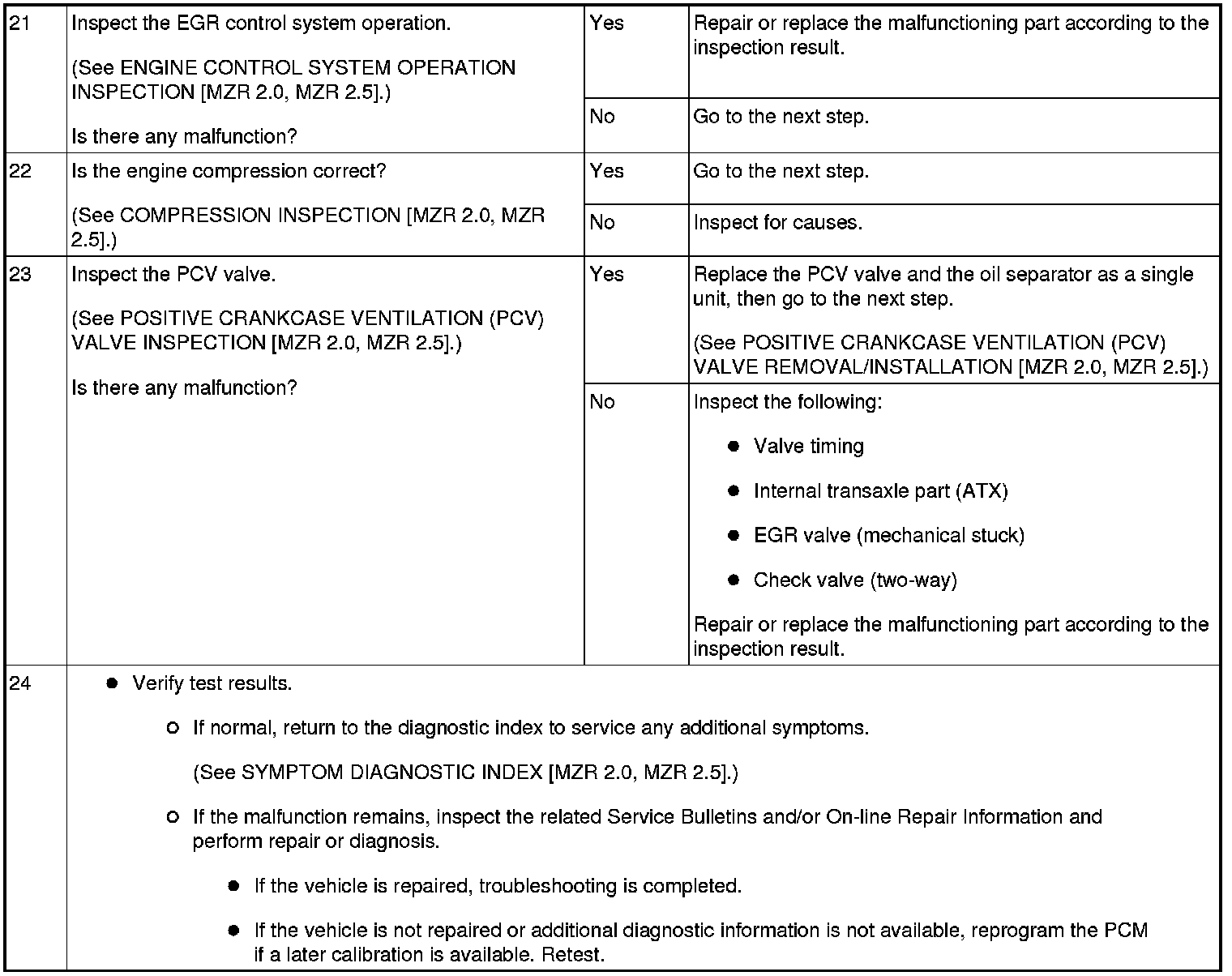

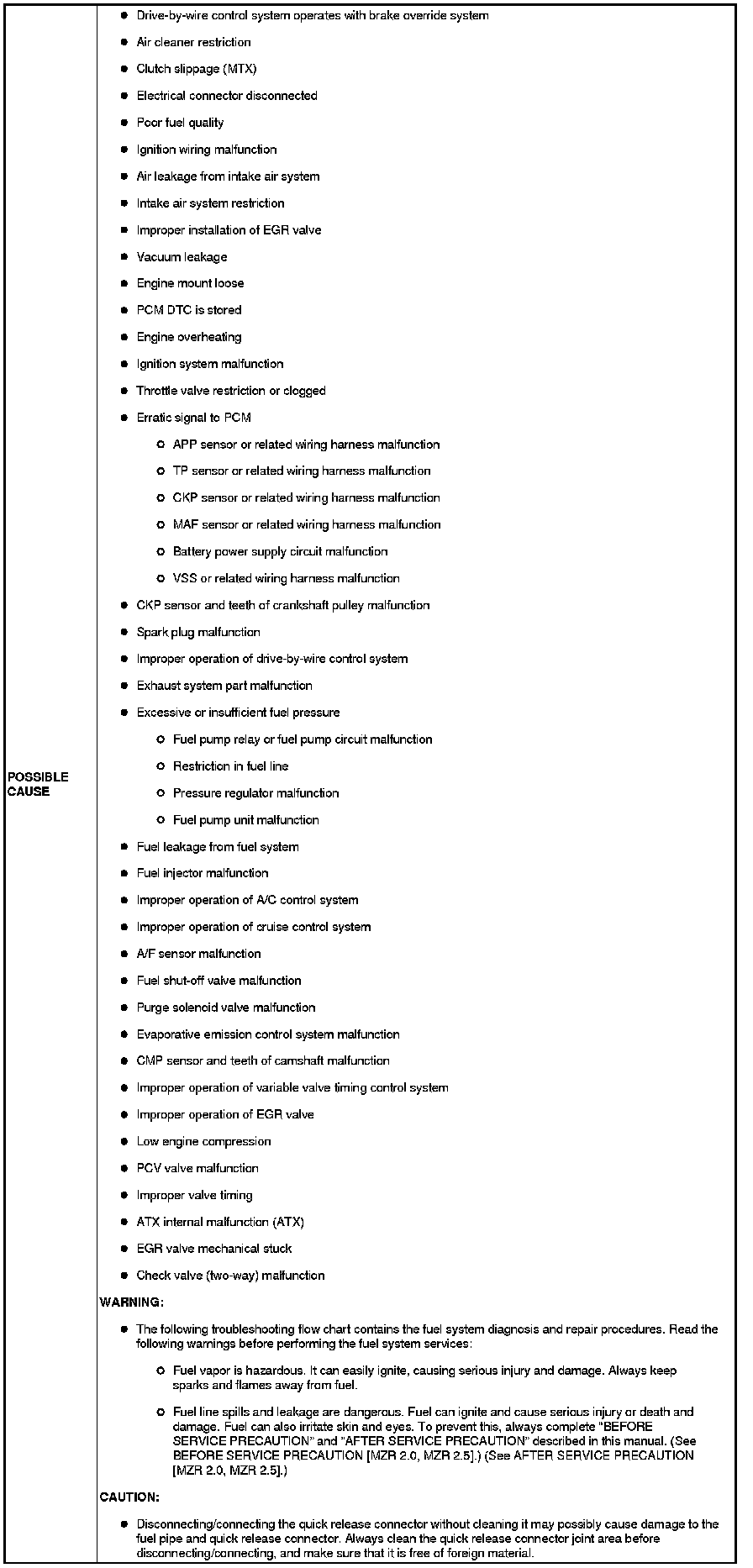

Diagnostic procedure
