No. 1 Melting Of Main Or Other Fuses
No. 1 Melting Of Main Or Other Fuses

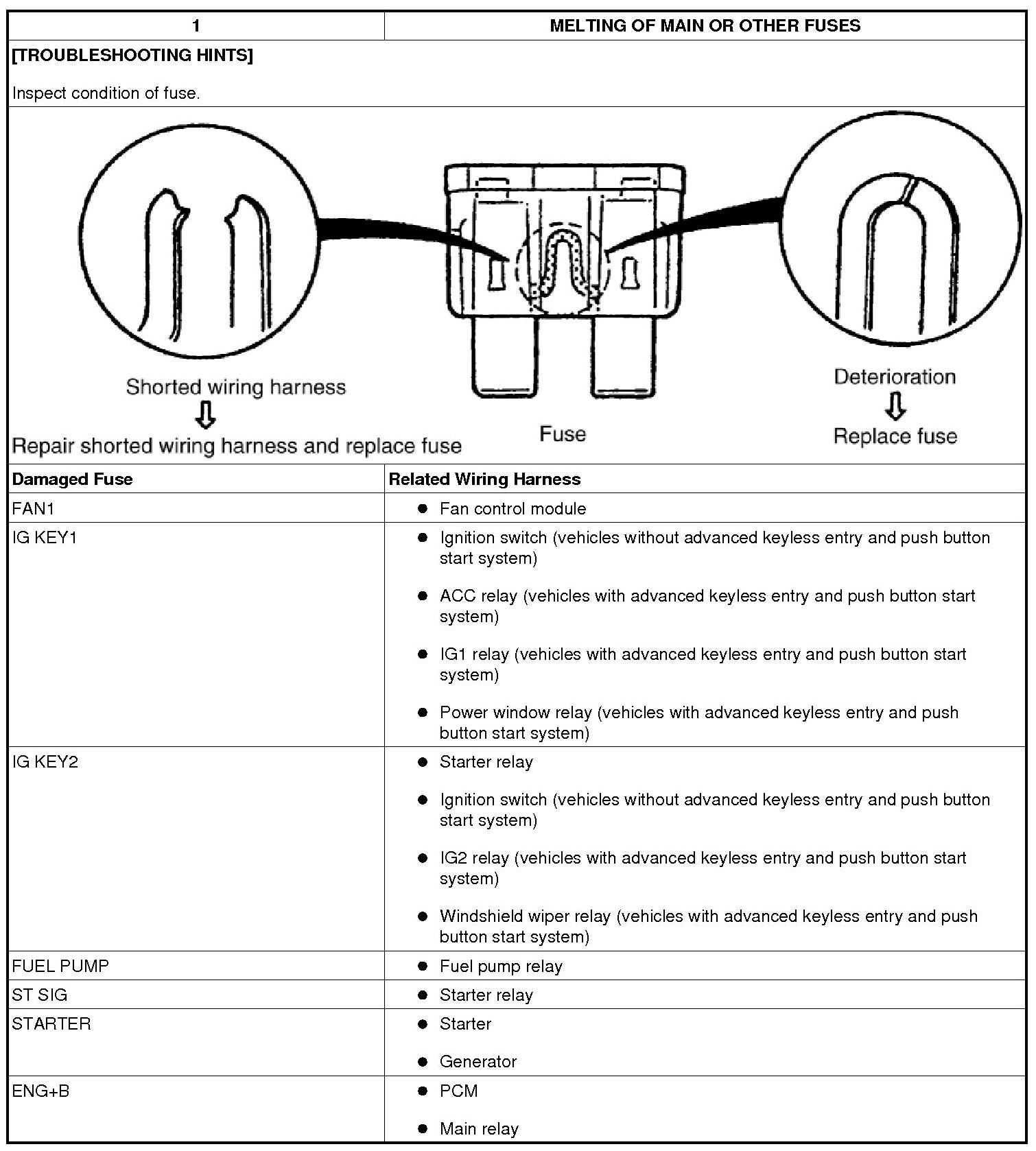

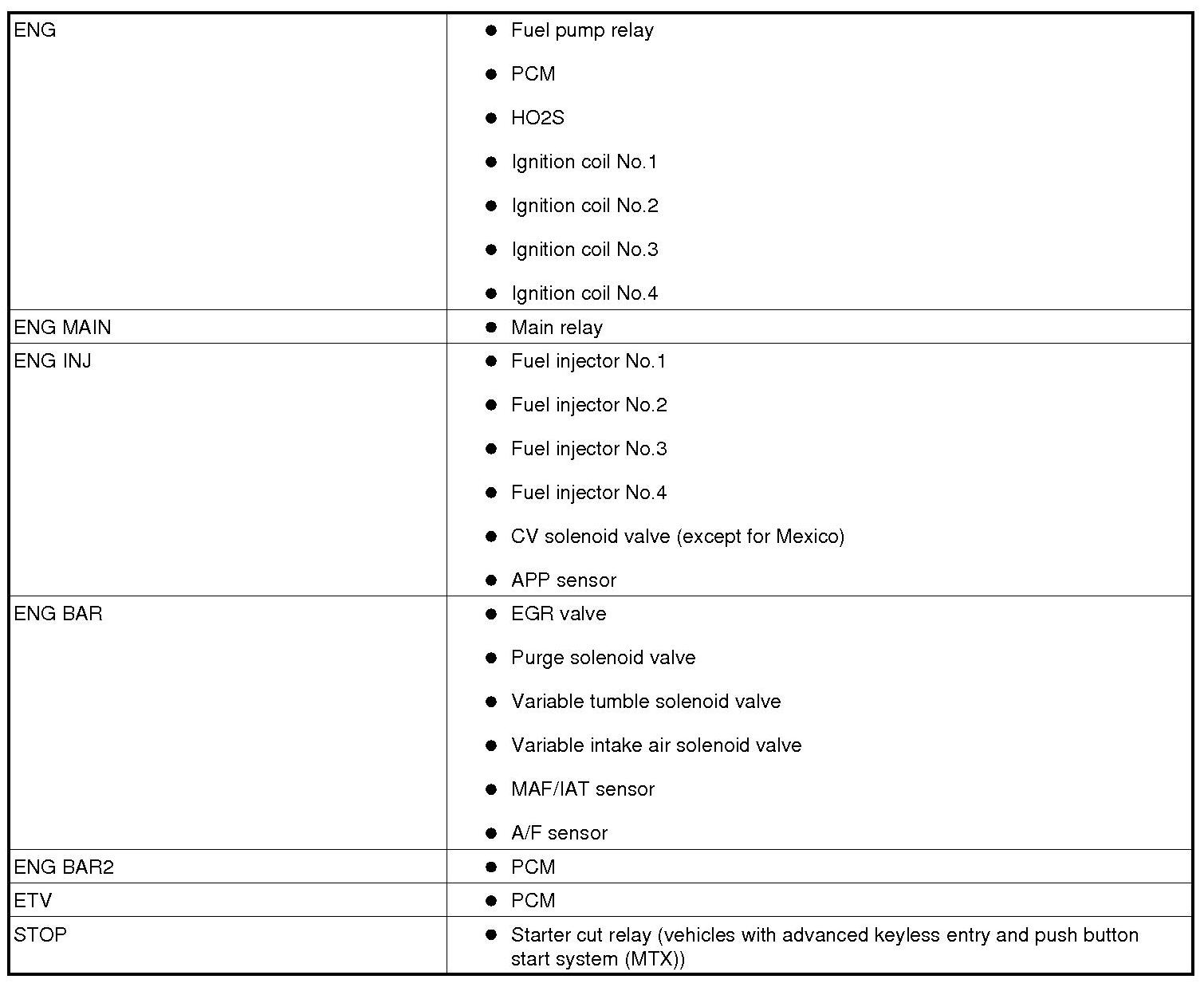

NO.1 MELTING OF MAIN OR OTHER FUSES [MZR 2.0, MZR 2.5]
