Drive Belt Tensioner: Testing and Inspection

DRIVE BELT AUTO TENSIONER INSPECTION [MZR 2.0, MZR 2.5]

MZR 2.0

1. Remove the generator drive belt with the A/C drive belt still installed and set it out of the way. Service and Repair

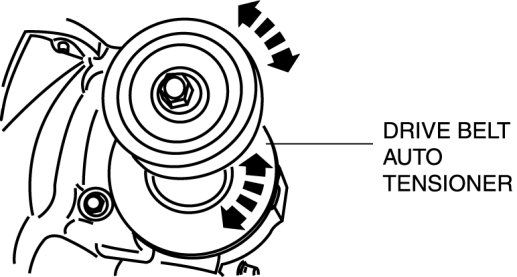

2. Verify that the drive belt auto tensioner moves smoothly in the operational direction.






- If it does not move smoothly, replace the drive belt auto tensioner. Procedures

3. Turn the drive belt auto tensioner pulley by hand and verify that it rotates smoothly.

- If it does not move smoothly, replace the drive belt auto tensioner. Procedures

4. Install the generator drive belt. Service and Repair

MZR 2.5

1. Remove the drive belt. Service and Repair

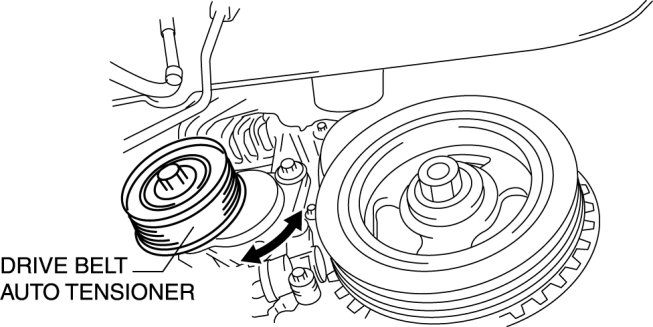

2. Verify that the drive belt auto tensioner moves smoothly in the operational direction.






- Replace the drive belt auto tensioner if necessary. Procedures

3. Rotate the drive belt auto tensioner pulley by hand and verify that it rotates smoothly.

- Replace the drive belt auto tensioner if necessary. Procedures

4. Install the drive belt. Service and Repair
