Diagram 0140-1k

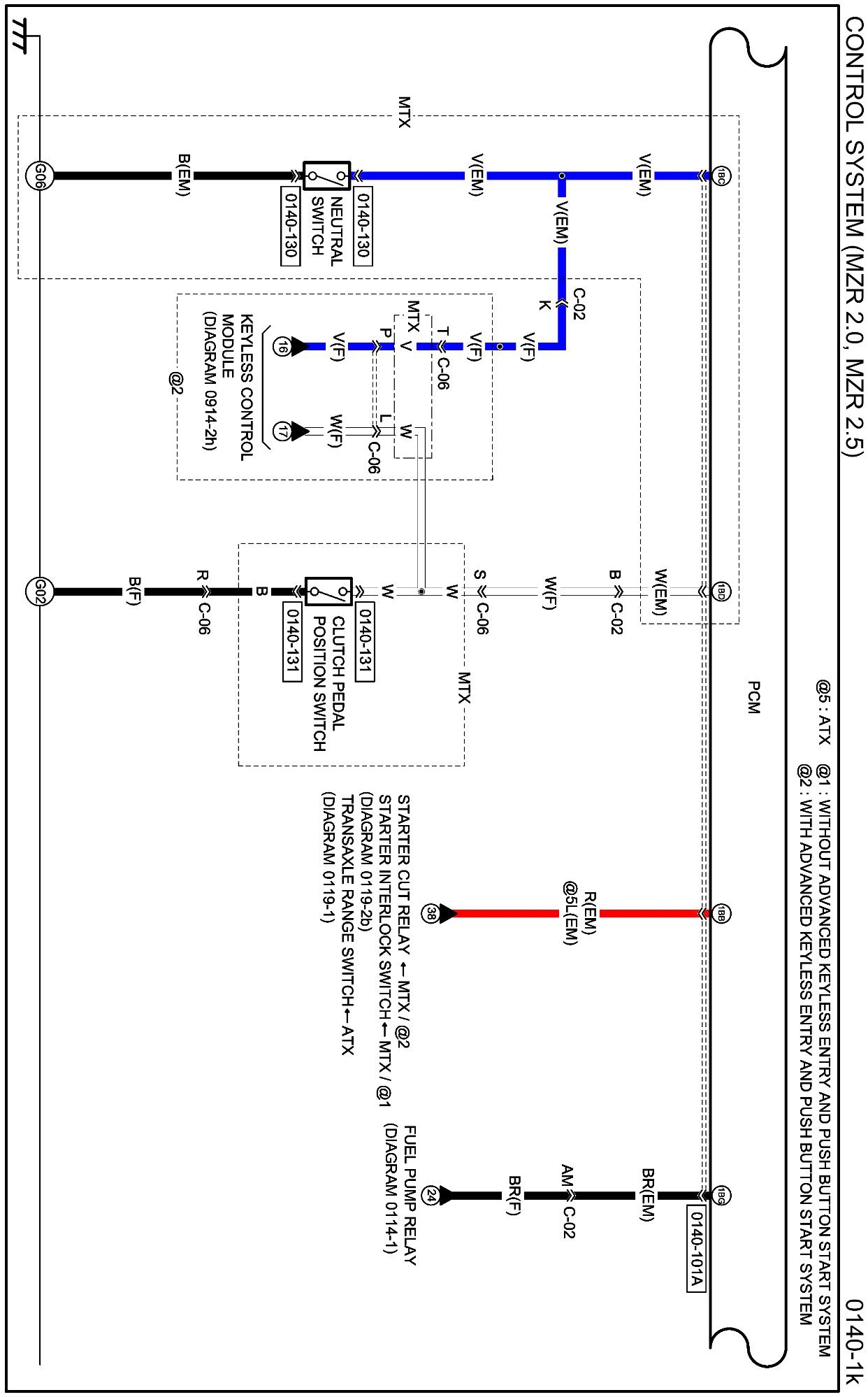

Diagram 0140-1k:

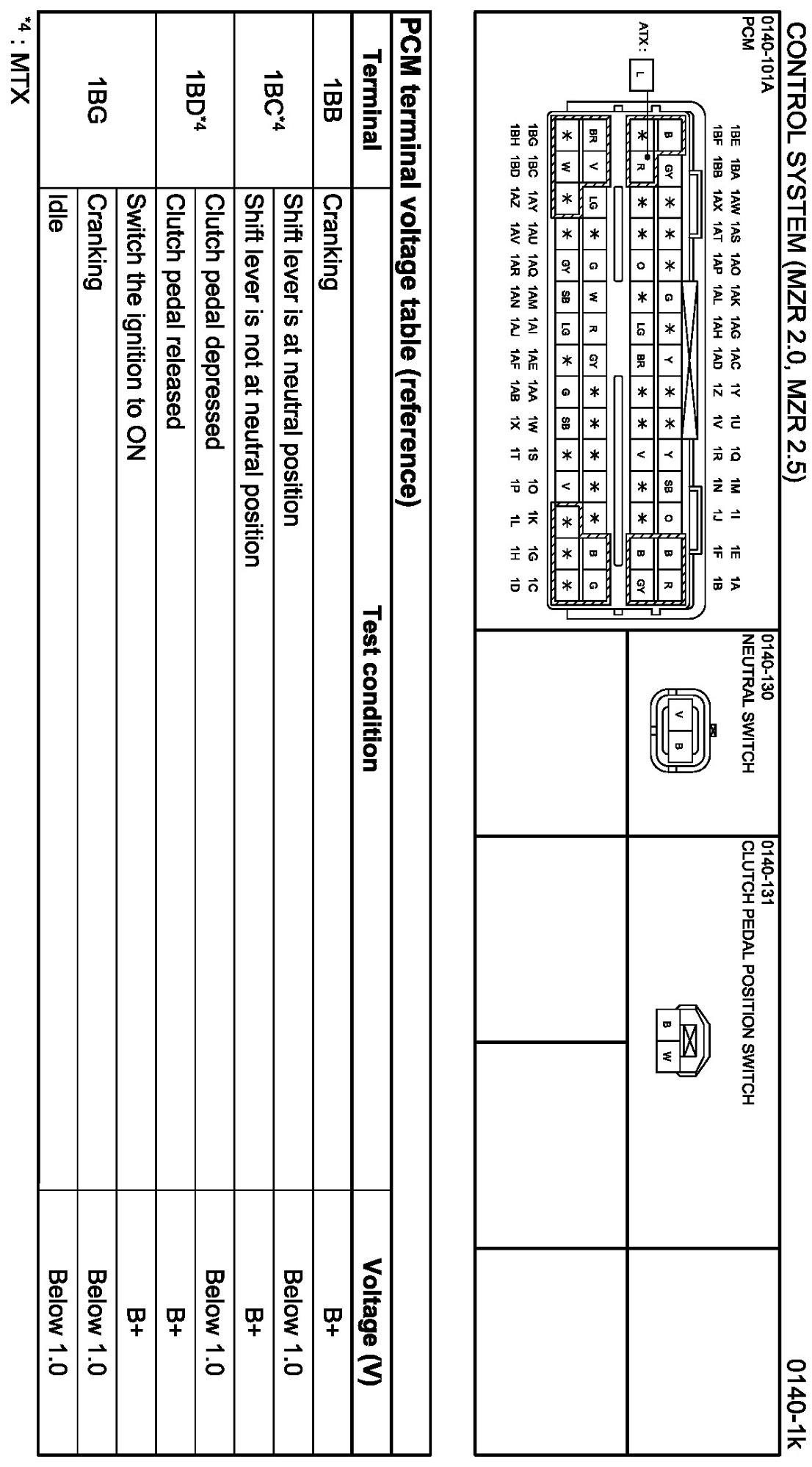

Connectors 0140-1k:

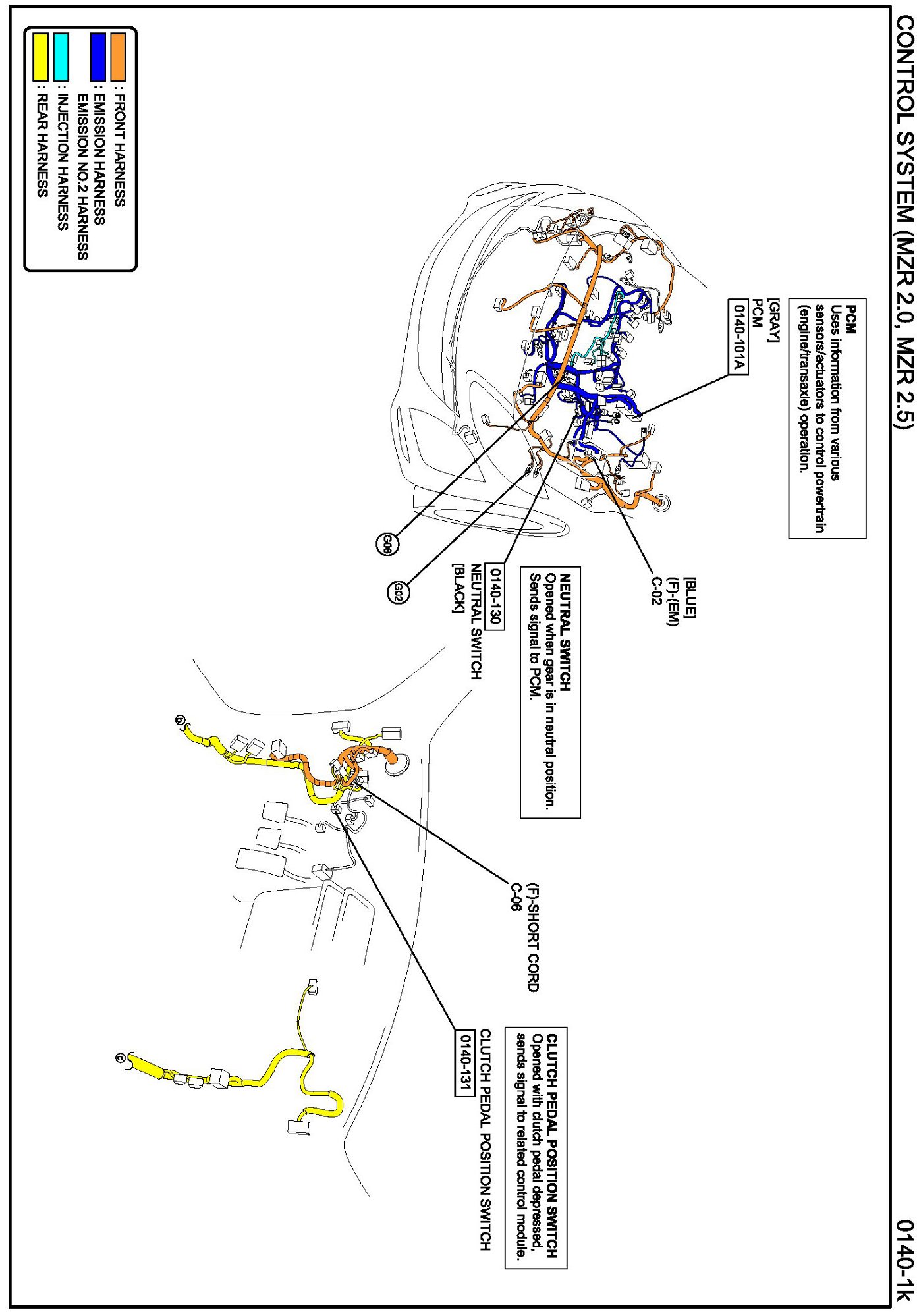

Routing View 0140-1k:

Next Diagram Diagram 0140-1l

Previous Diagram Diagram 0140-1j


Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
