Home >> Mazda >> 2012 >> 3 L4-2.0L (MZR) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Diagram Name >> Diagram 0940-b (BCM (Body Control Module))

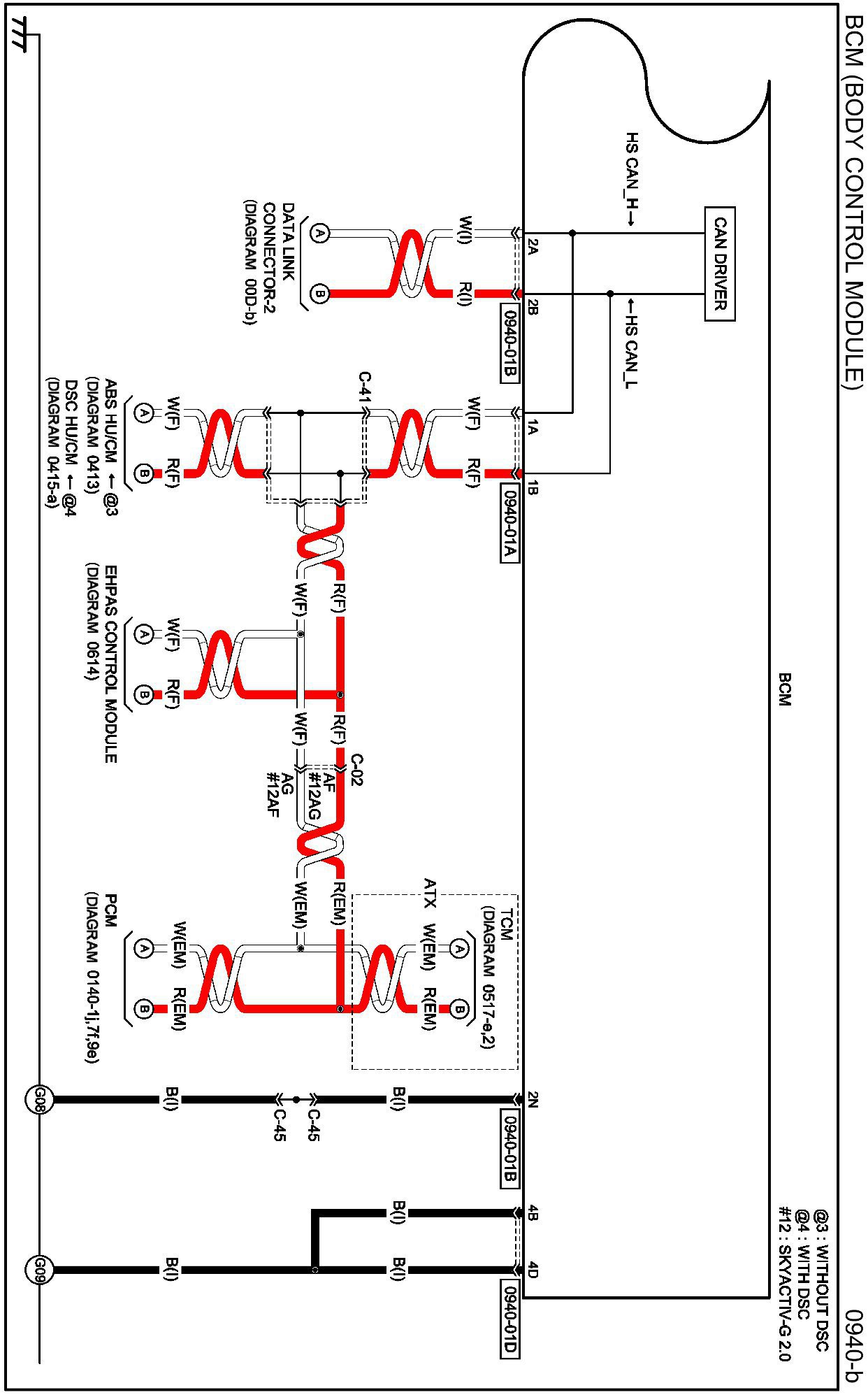

Diagram 0940-b (BCM (Body Control Module))

Diagram 0940-b:
