Home >> Mazda >> 2012 >> 3 L4-2.0L (MZR) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Diagram Name >> Diagram 0922-1e (Instrument Cluster)

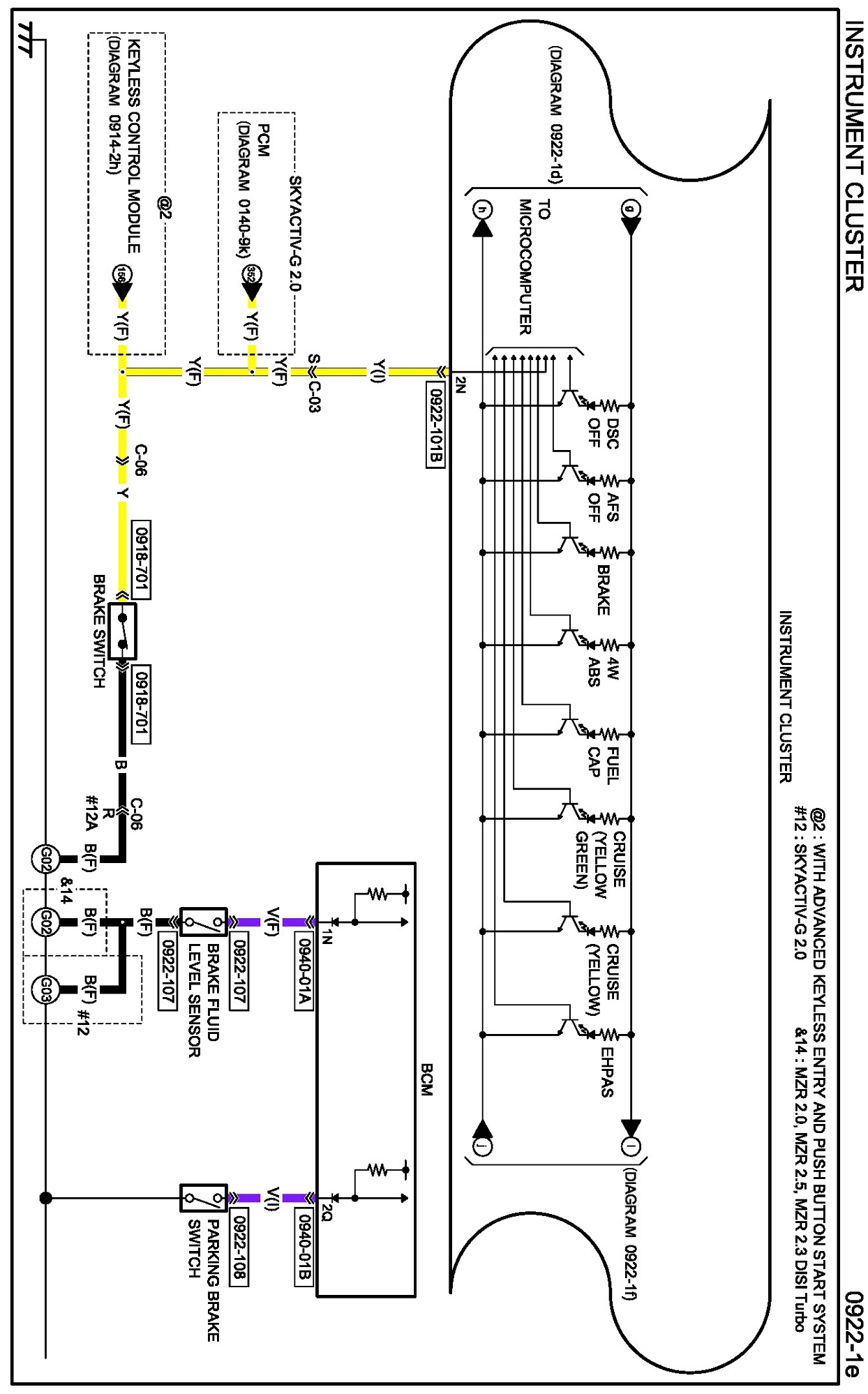

Diagram 0922-1e (Instrument Cluster)

Diagram 0922-1e:
