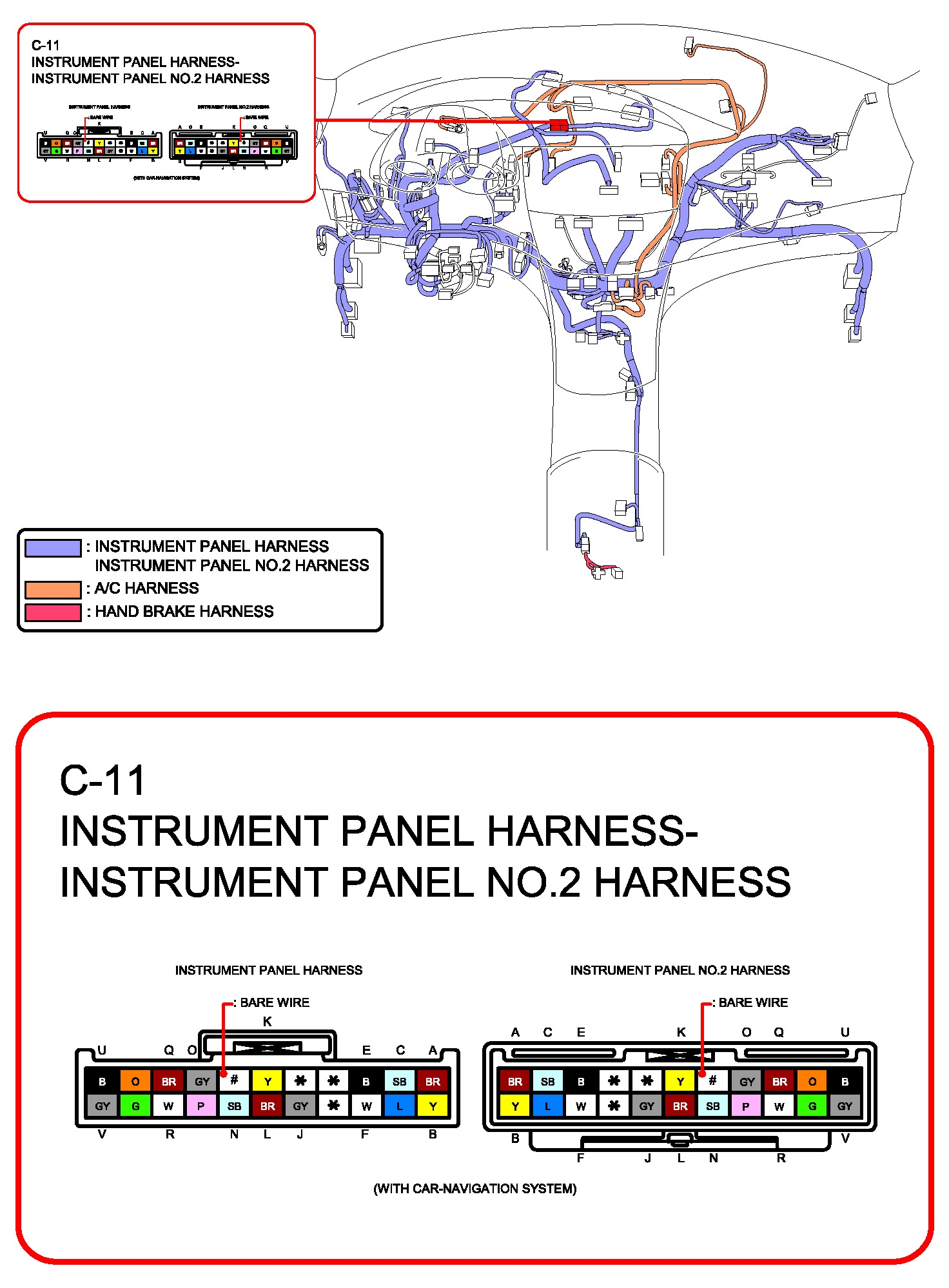

C-11 (Instrument Panel Harness-Instrument Panel No.2 Harness)
C-11 (Instrument Panel Harness-Instrument Panel No.2 Harness)
