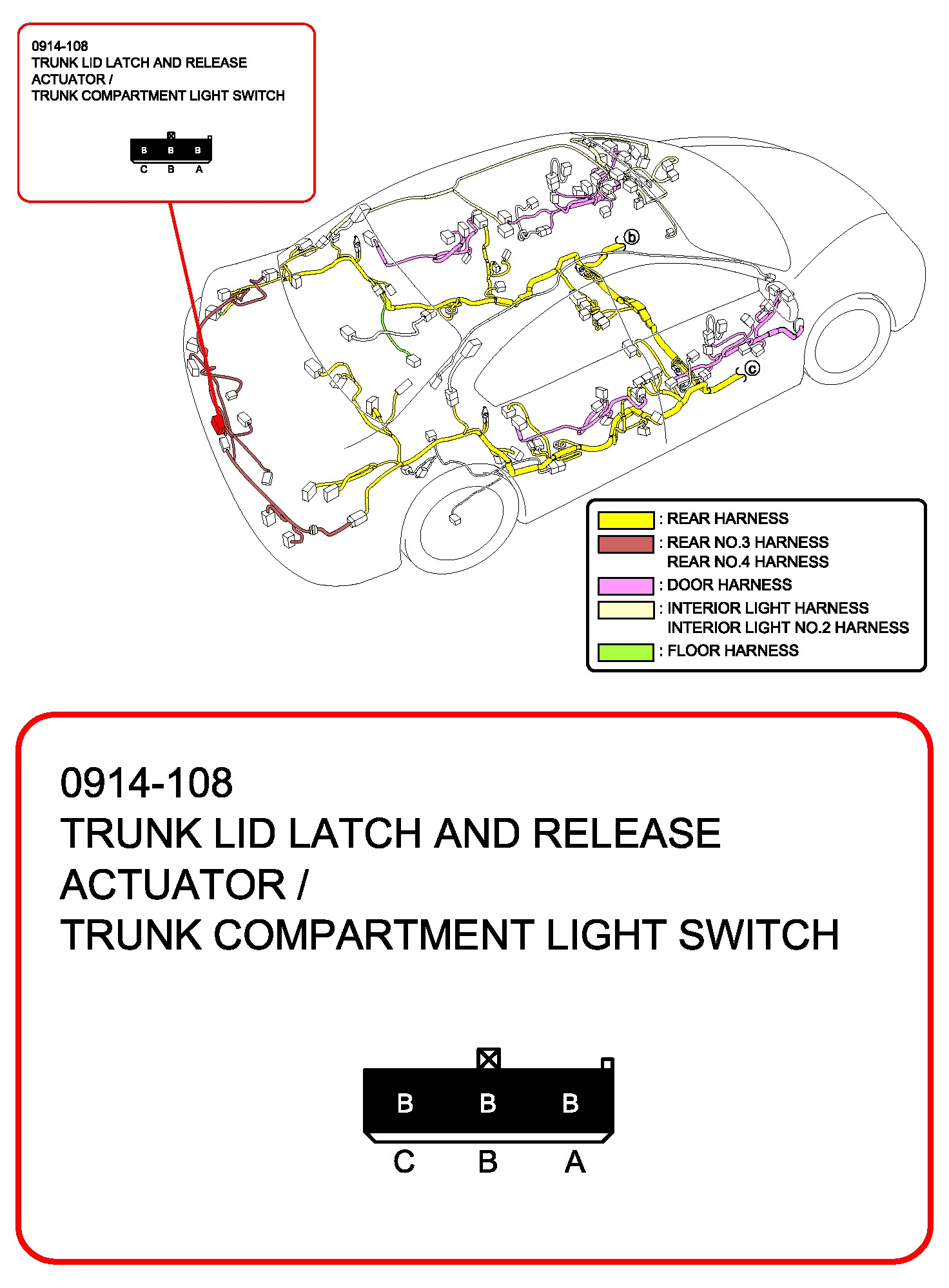

Home >> Mazda >> 2012 >> 3 L4-2.0L (MZR) >> Repair and Diagnosis >> Diagrams >> Components >> Trunk Lid Latch And Release Actuator/Trunk Compartment Light Switch >> Door Lock System (Without Advanced Keyless Entry And Push Button Start System, TPMS)

Door Lock System (Without Advanced Keyless Entry And Push Button Start System, TPMS)
