Home >> Mazda >> 2012 >> 3 L4-2.0L (MZR) >> Repair and Diagnosis >> Diagrams >> Components >> Heated Outer Mirror RH/Power Outer Mirror RH/Side Turn Light RH/BSM Indicator Light RH

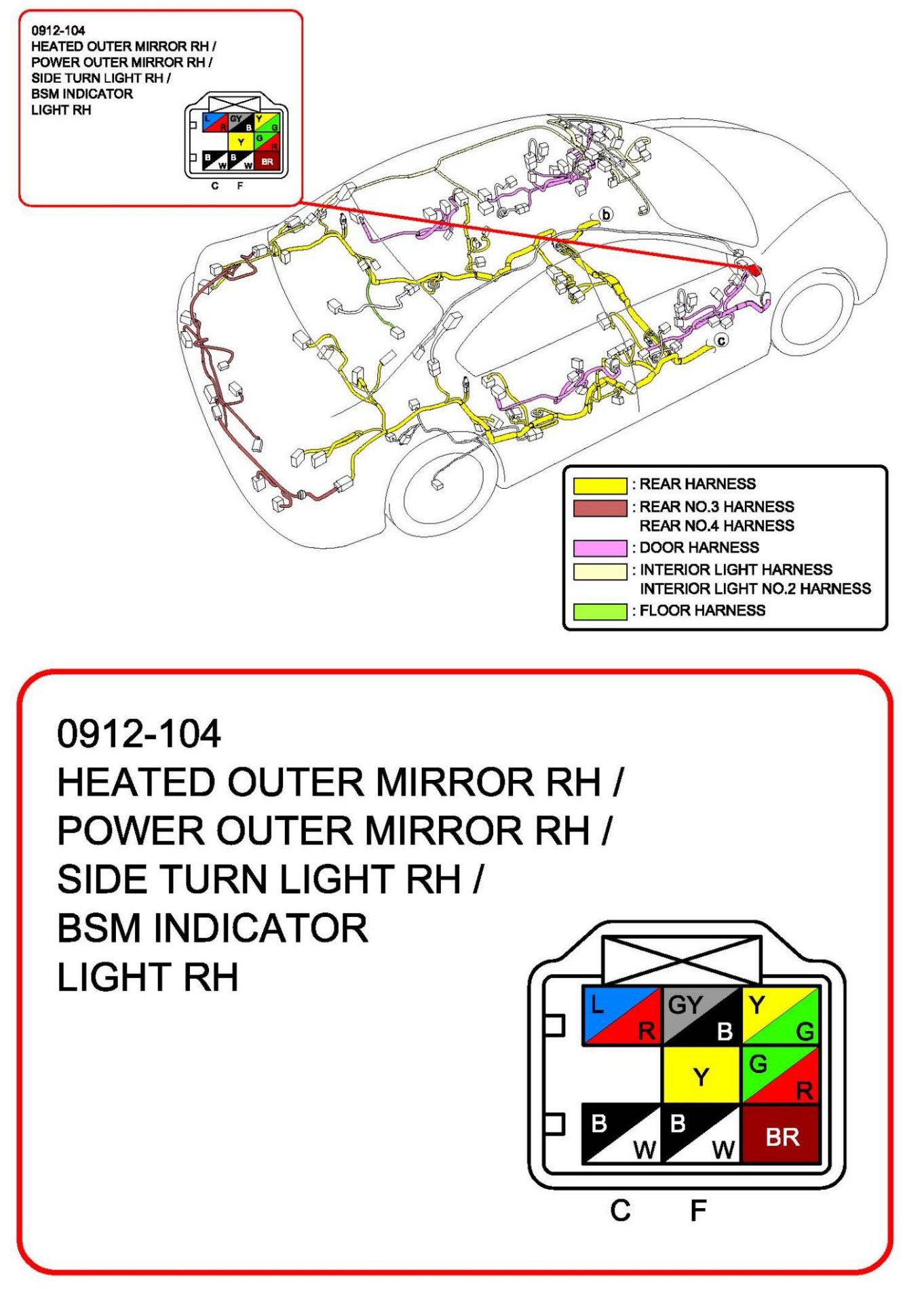

Heated Outer Mirror RH/Power Outer Mirror RH/Side Turn Light RH/BSM Indicator Light RH
