Home >> Mazda >> 2012 >> 3 L4-2.0L (MZR) >> Repair and Diagnosis >> Diagrams >> Components >> Heated Outer Mirror LH/Power Outer Mirror LH/Side Turn Light LH/BSM Indicator Light LH

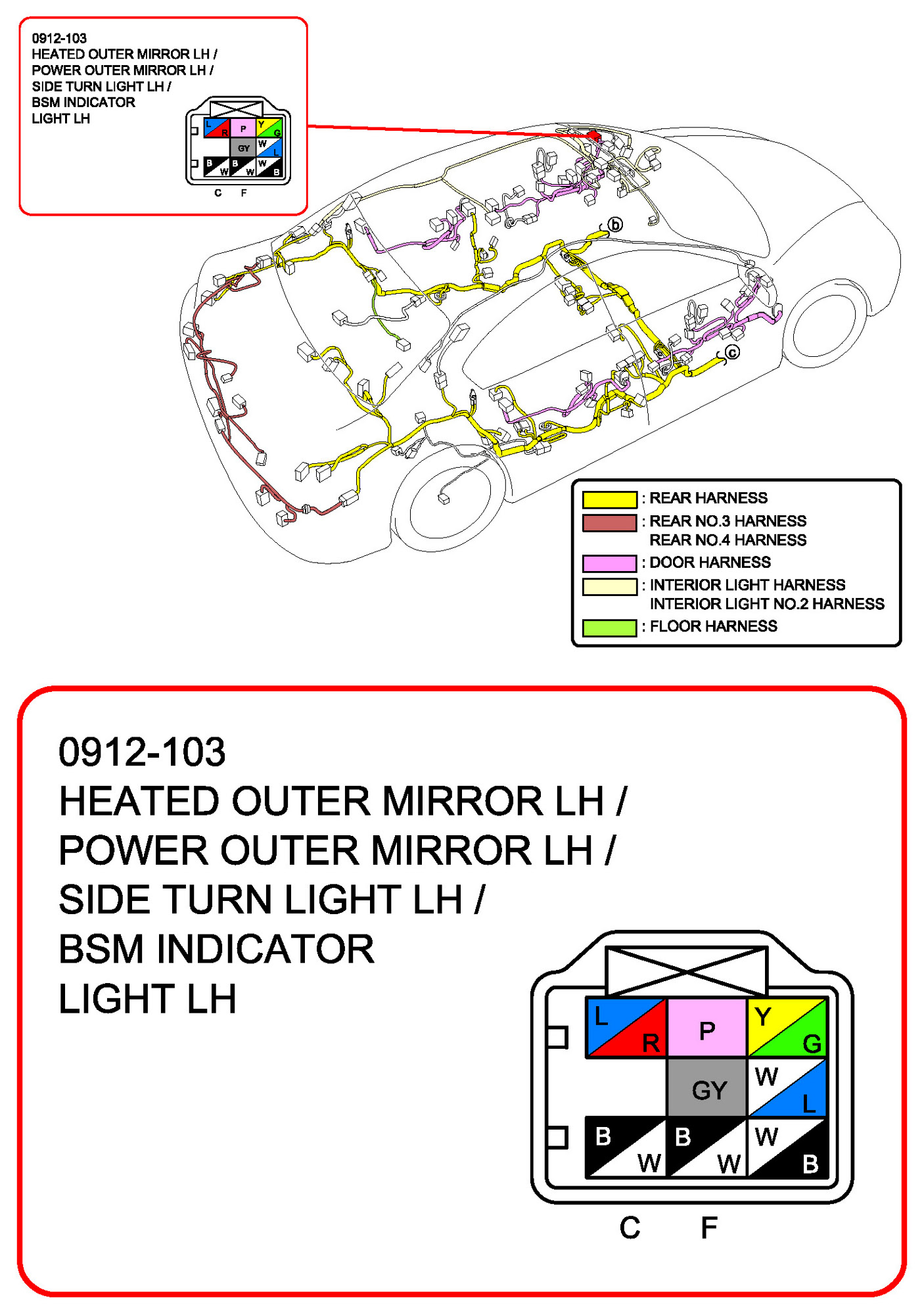

Heated Outer Mirror LH/Power Outer Mirror LH/Side Turn Light LH/BSM Indicator Light LH
