Parking Brake Cable: Service and Repair

PARKING BRAKE CABLE REMOVAL/INSTALLATION

1. Remove the following parts:
a. Upper panel Upper Panel Removal/Installation

b. Shift knob (MTX) Manual Transaxle Shift Mechanism Removal/Installation [G35M-R] Manual Transaxle Shift Mechanism Removal/Installation [G66M-R]

c. Selector lever knob (ATX) Automatic Transaxle Shift Mechanism Removal/Installation

d. Shift panel Shift Panel Removal/Installation

e. Side wall Side Wall Removal/Installation

f. Console Console Removal/Installation

2. Remove the under cover. Service and Repair

3. Remove the tunnel member (rear). (MZR 2.0, MZR 2.5, MZR 2.3 DISI Turbo) Service and Repair Service and Repair

4. Remove the brace bar. (SKYACTIV-G 2.0) Service and Repair

5. Remove the TWC. (MZR 2.0, MZR 2.5, SKYACTIV-G 2.0) Service and Repair Service and Repair

6. Remove the presilencer. (MZR 2.3 DISI Turbo) Service and Repair

7. Remove the insulator (middle No.1) and the insulator (middle No.2). Service and Repair Service and Repair Service and Repair

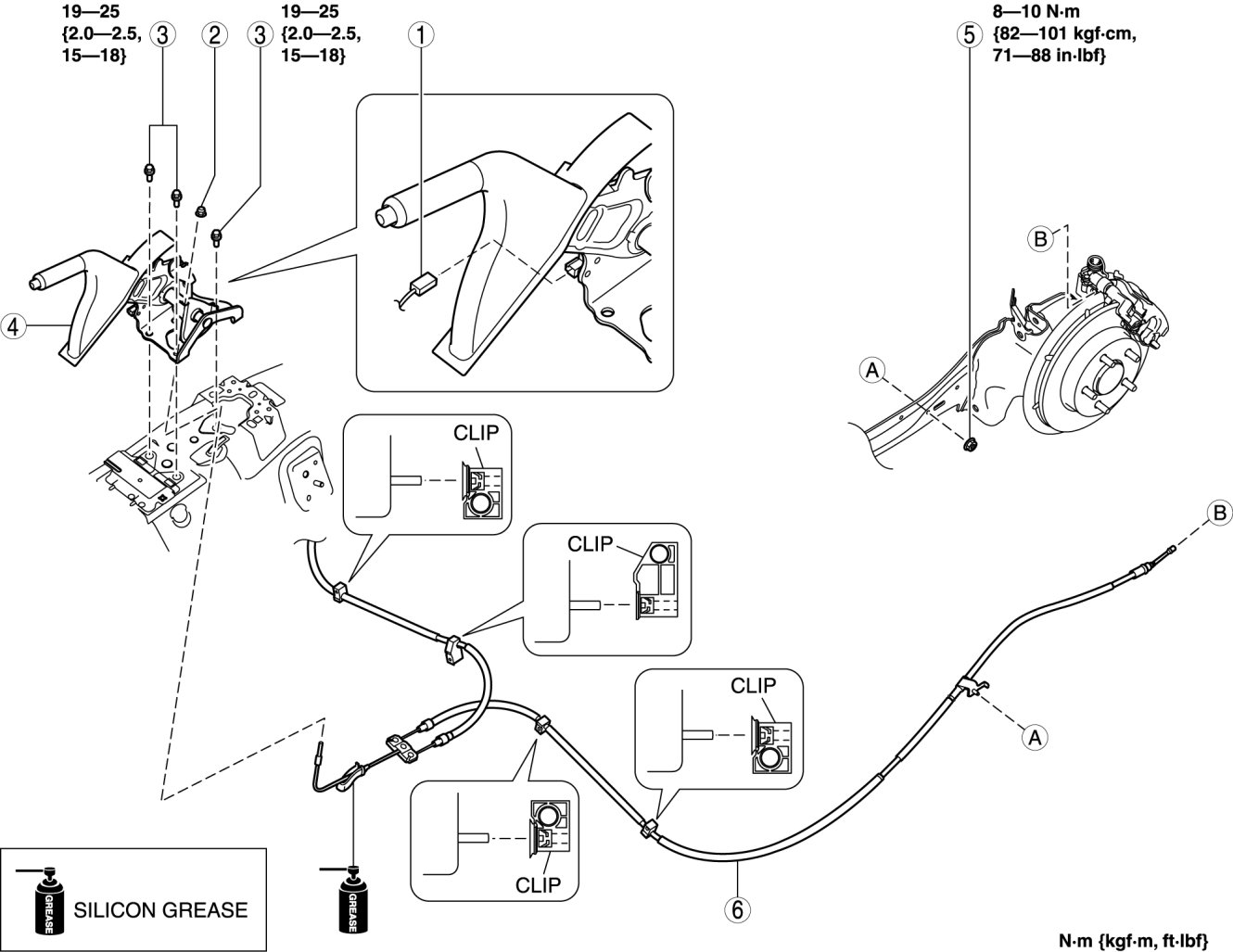

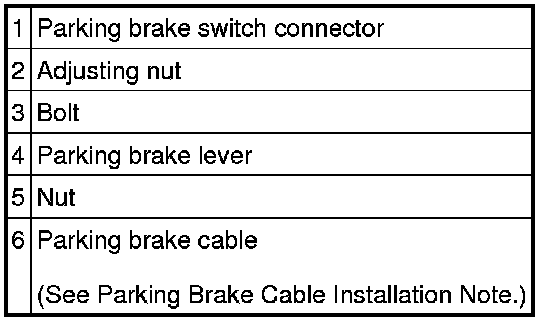

8. Remove in the order indicated in the table.

9. Install in the reverse order of removal.

10. After installation, inspect the parking brake stroke and adjust if necessary. Testing and Inspection









Parking Brake Cable Installation Note

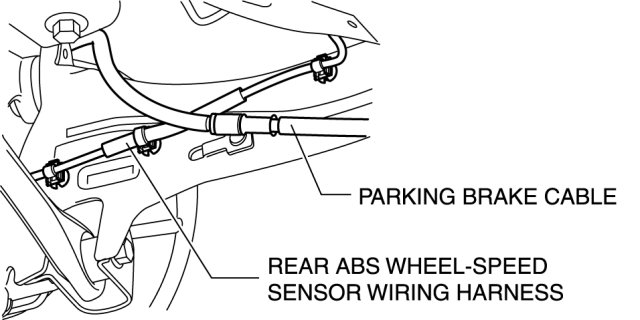

1. Pass the parking brake cable inside the rear ABS wheel-speed sensor wiring harness as shown in the figure.






2. Install the rear parking brake cable.

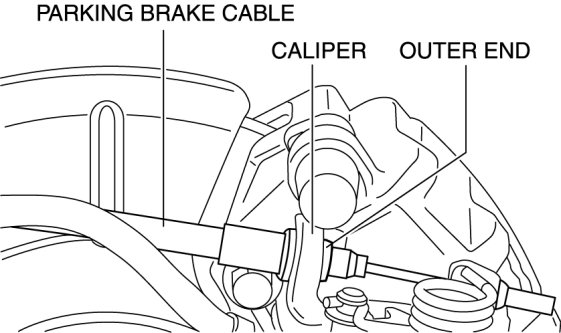

3. Verify that the end of the parking brake cable outer end is out of the caliper as shown in the figure.
