ABS HU/CM Inspection

ABS HU/CM INSPECTION

1. Disconnect the ABS HU/CM connector. ABS HU/CM Removal/Installation

2. Connect the negative battery cable. Removal and Replacement

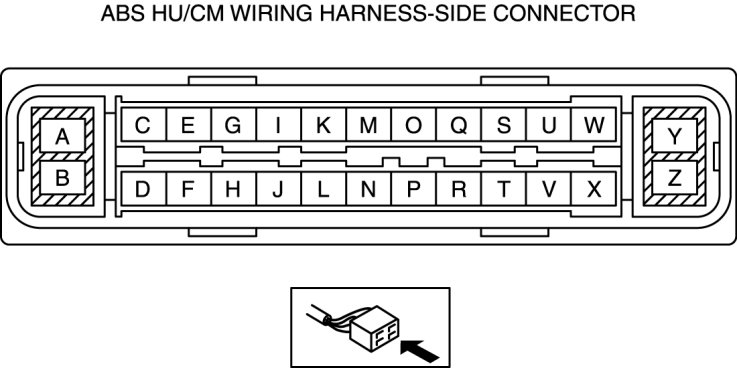

3. Attach the tester lead to the ABS HU/CM wiring harness-side connector and inspect the voltage, continuity, or resistance according to the standard (reference value) in the table below.

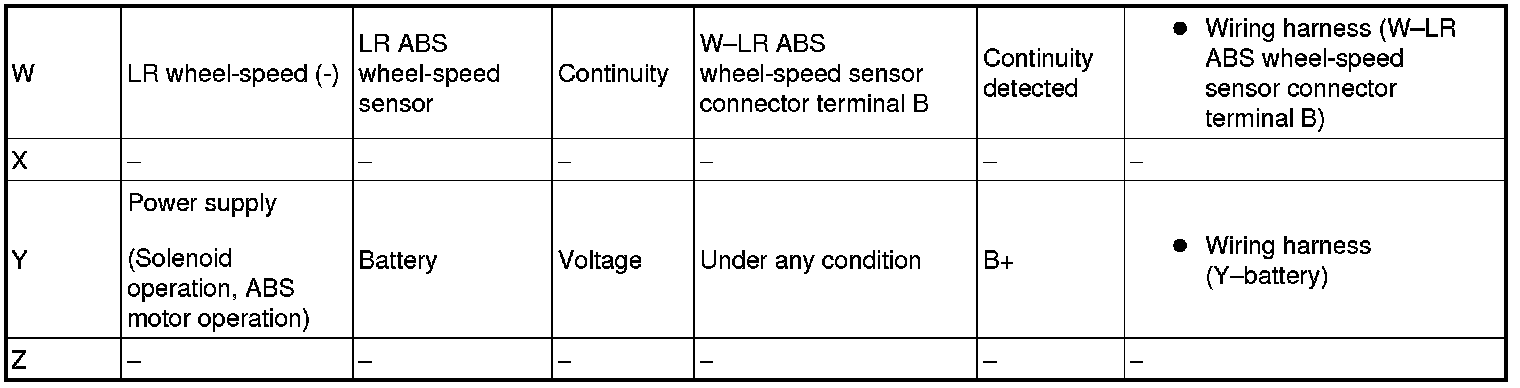

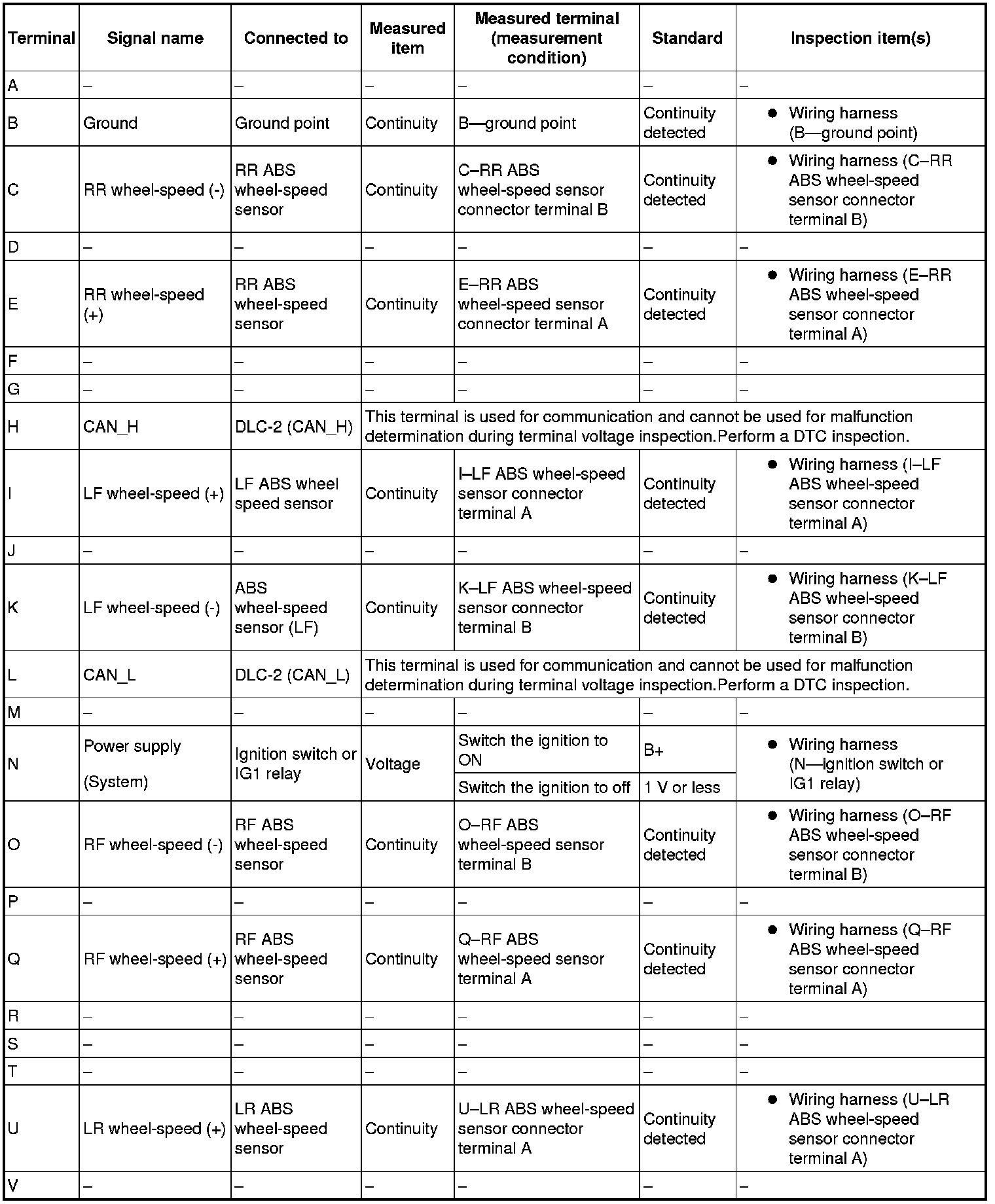

Standard (reference)
