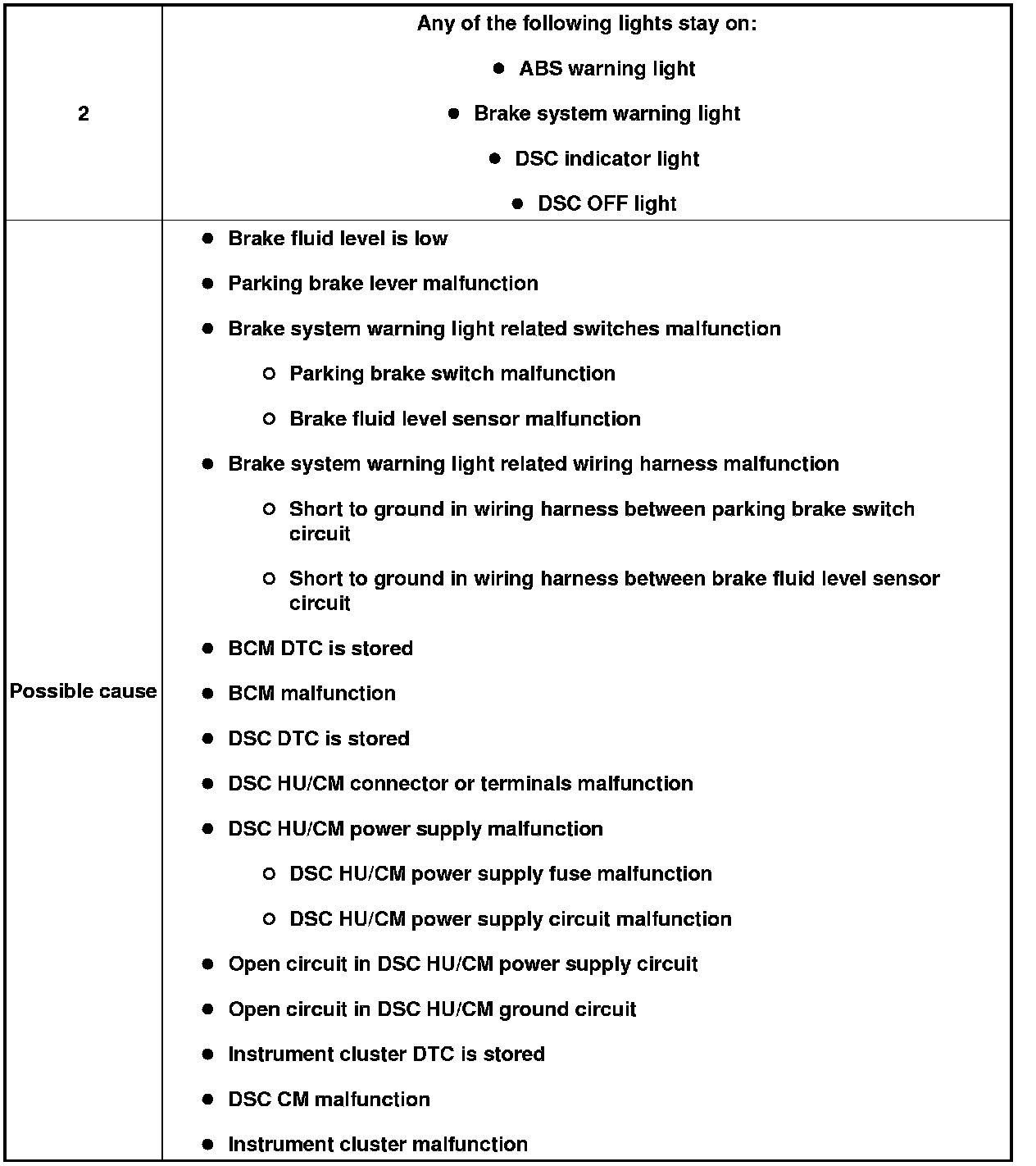

No. 2 Any Of The Following Lights Stay ON: (ABS Warning Light, Brake Warning Light, DSC Indicator Light And/Or DSC OFF Light)

NO.2 ANY OF THE FOLLOWING LIGHTS STAY ON: (ABS WARNING LIGHT, BRAKE SYSTEM WARNING LIGHT, DSC INDICATOR LIGHT AND/OR DSC OFF LIGHT) [DYNAMIC STABILITY CONTROL (DSC)]

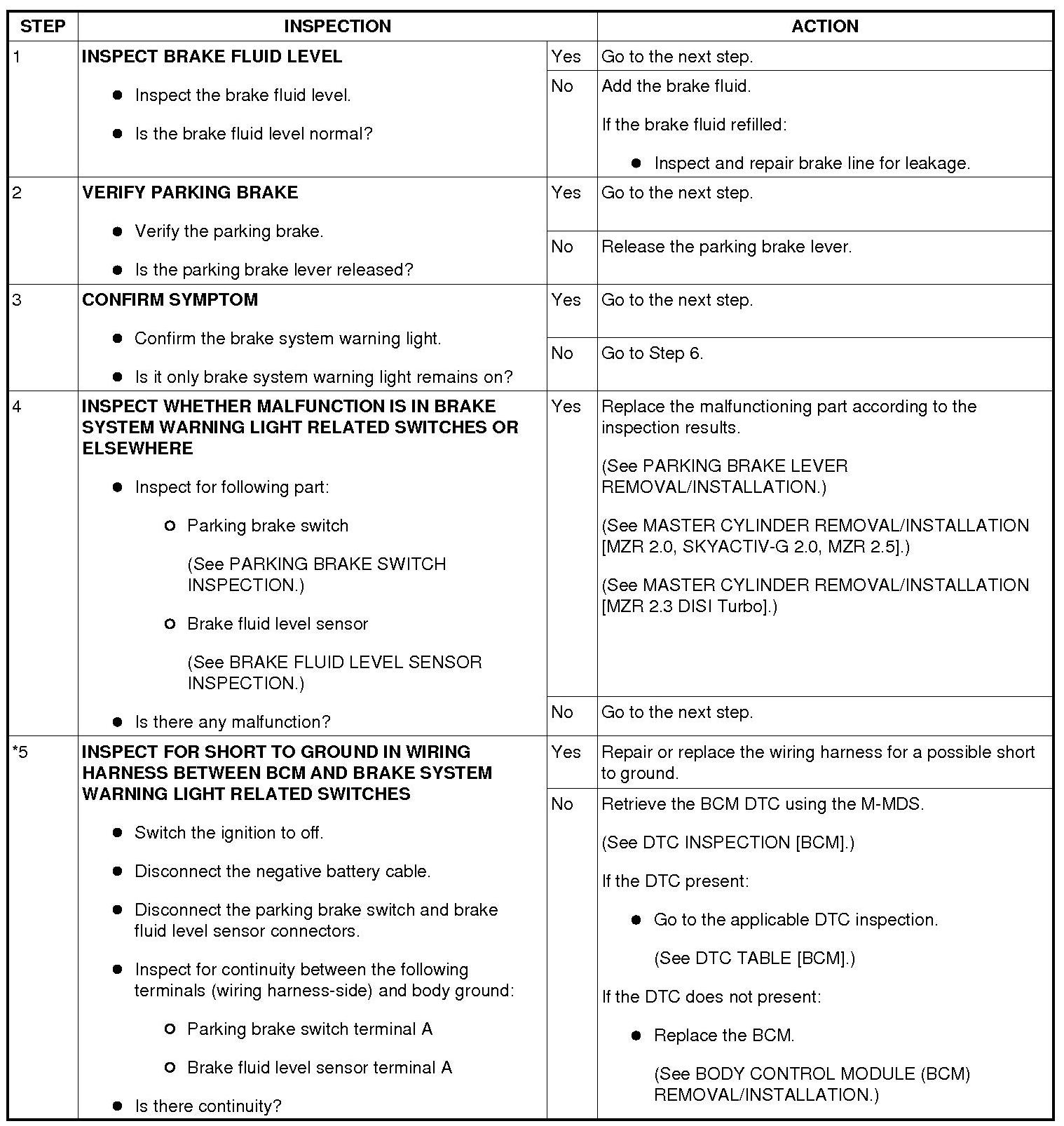

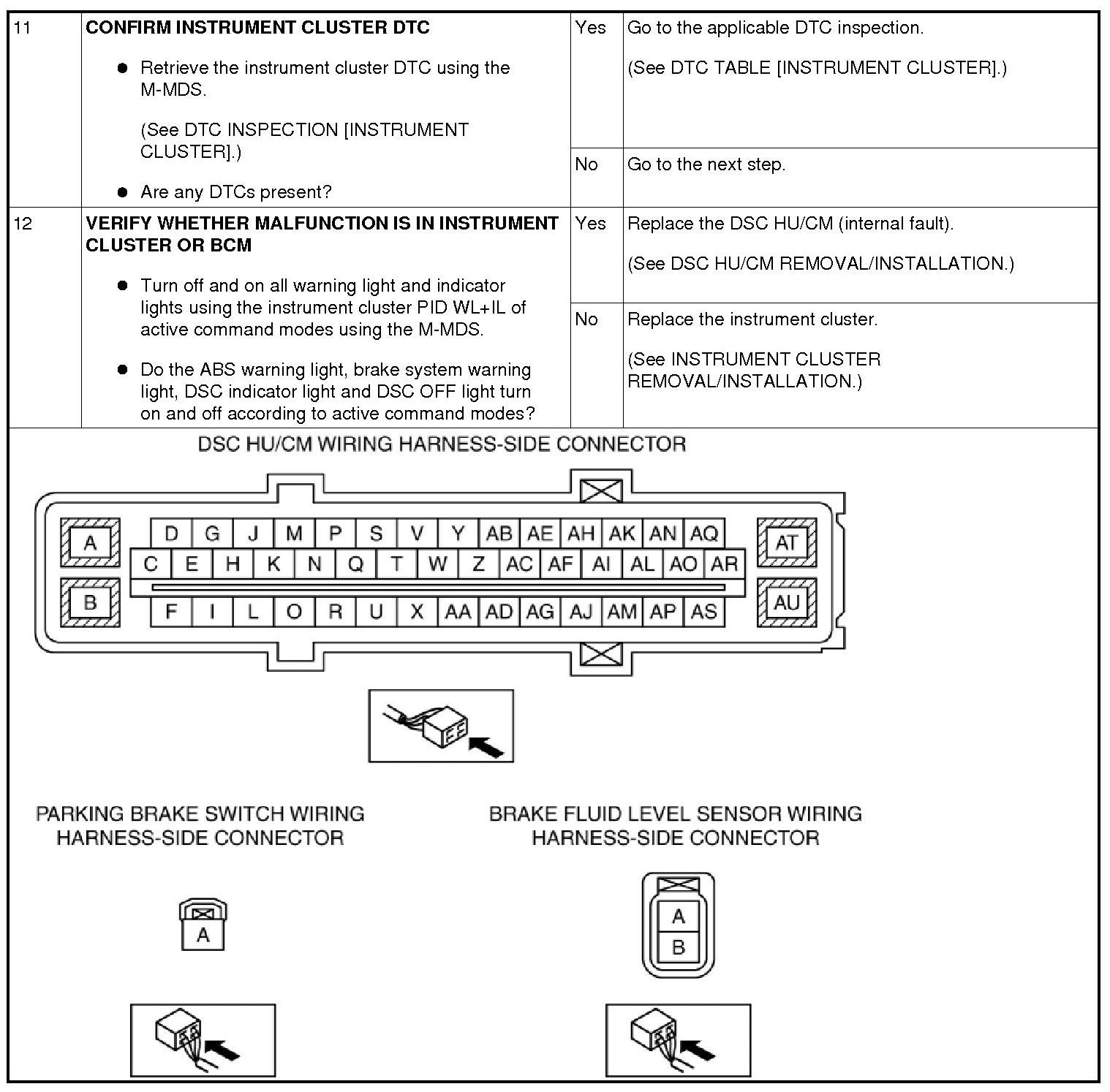

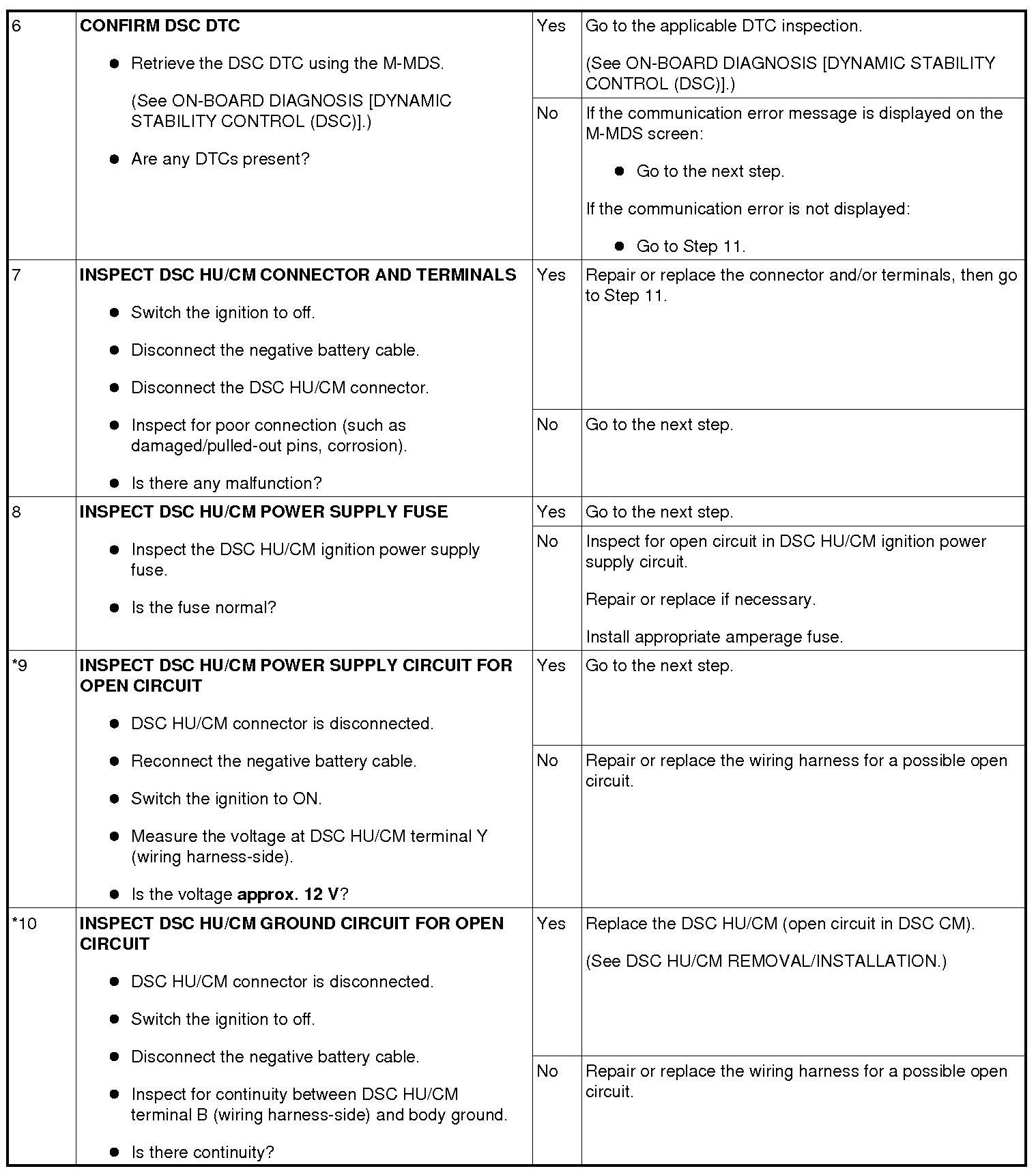

Diagnostic procedure













- When performing an asterisked (*) troubleshooting inspection, shake the wiring harness and connectors while doing the inspection to discover whether poor contact points are the cause of any intermittent malfunctions. If there is a problem, check to make sure connectors, terminals and wiring harness are connected correctly and undamaged.
