No. 1 Any Warning / Indicator Lights Do Not Illuminate When Ignition Switch Turned To ON Position

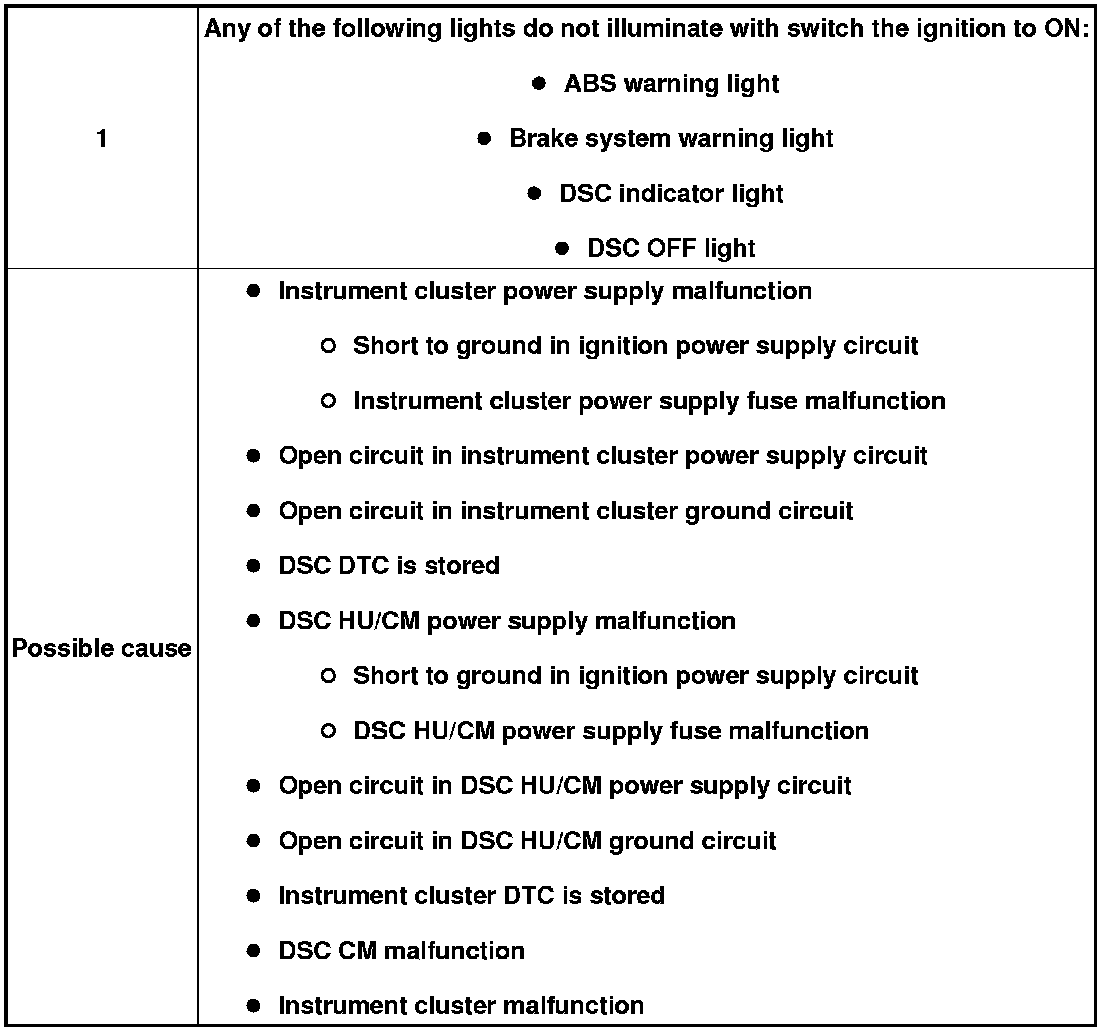

NO.1 ANY OF THE FOLLOWING LIGHTS DO NOT ILLUMINATE WITH SWITCH THE IGNITION TO ON: (ABS WARNING LIGHT, BRAKE SYSTEM WARNING LIGHT, DSC INDICATOR LIGHT AND/OR DSC OFF LIGHT) [DYNAMIC STABILITY CONTROL (DSC)]

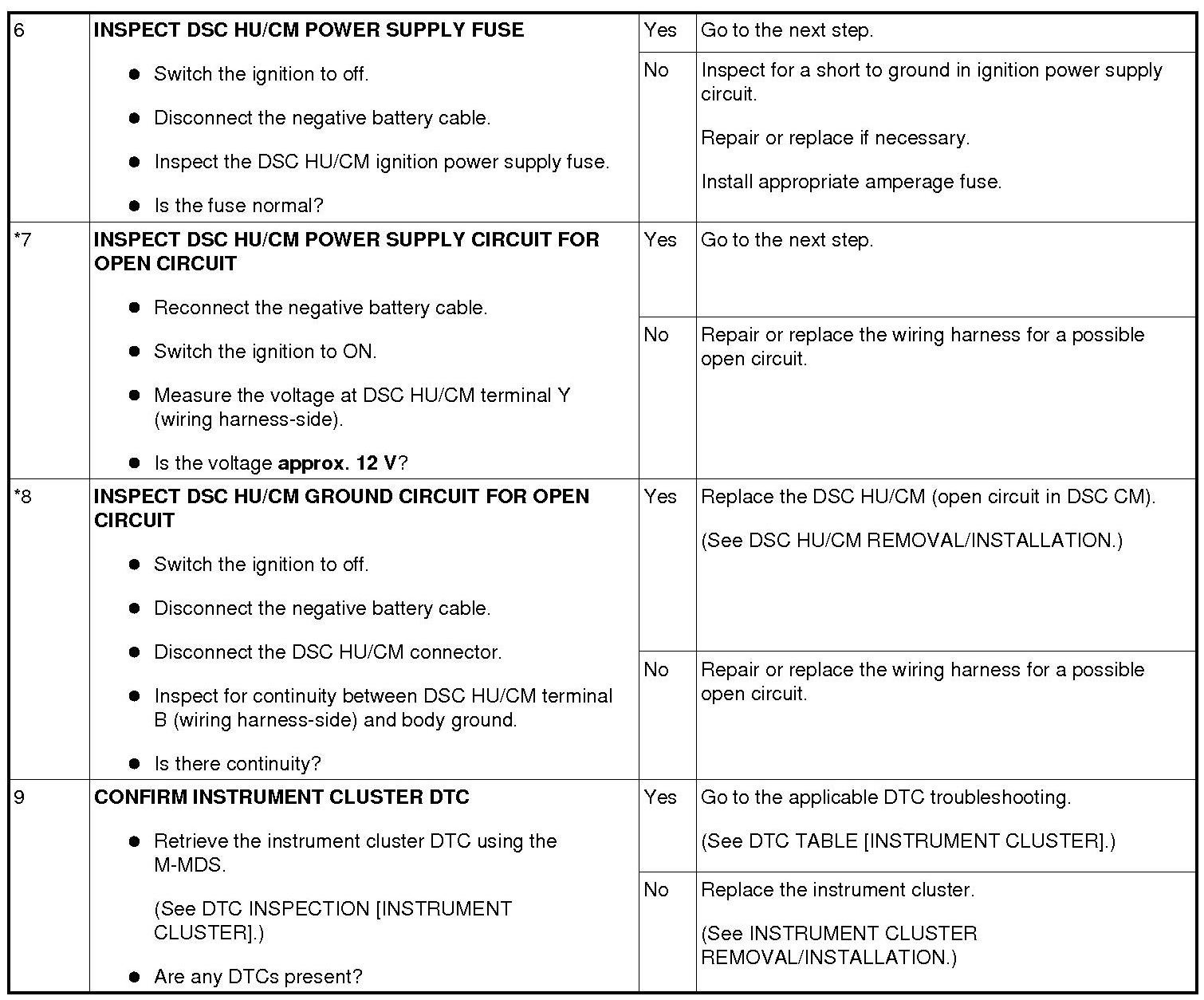

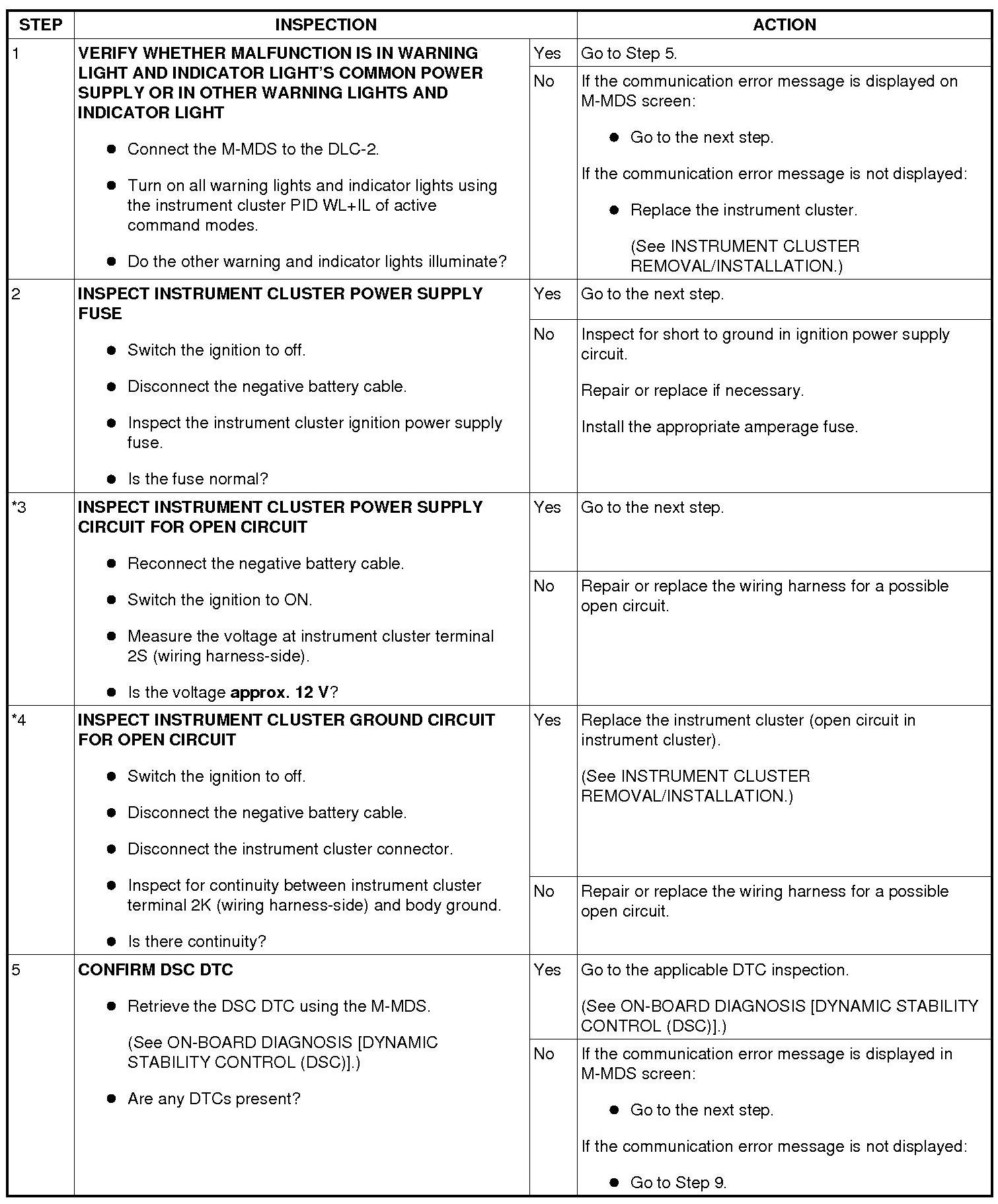

Diagnostic procedure













- When performing an asterisked (*) troubleshooting inspection, shake the wiring harness and connectors while doing the inspection to discover whether poor contact points are the cause of any intermittent malfunctions. If there is a problem, check to make sure connectors, terminals and wiring harness are connected correctly and undamaged.
