Home >> Mazda >> 2012 >> 3 L4-2.0L (MZR) >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> ABS >> System Wiring Diagram

System Wiring Diagram

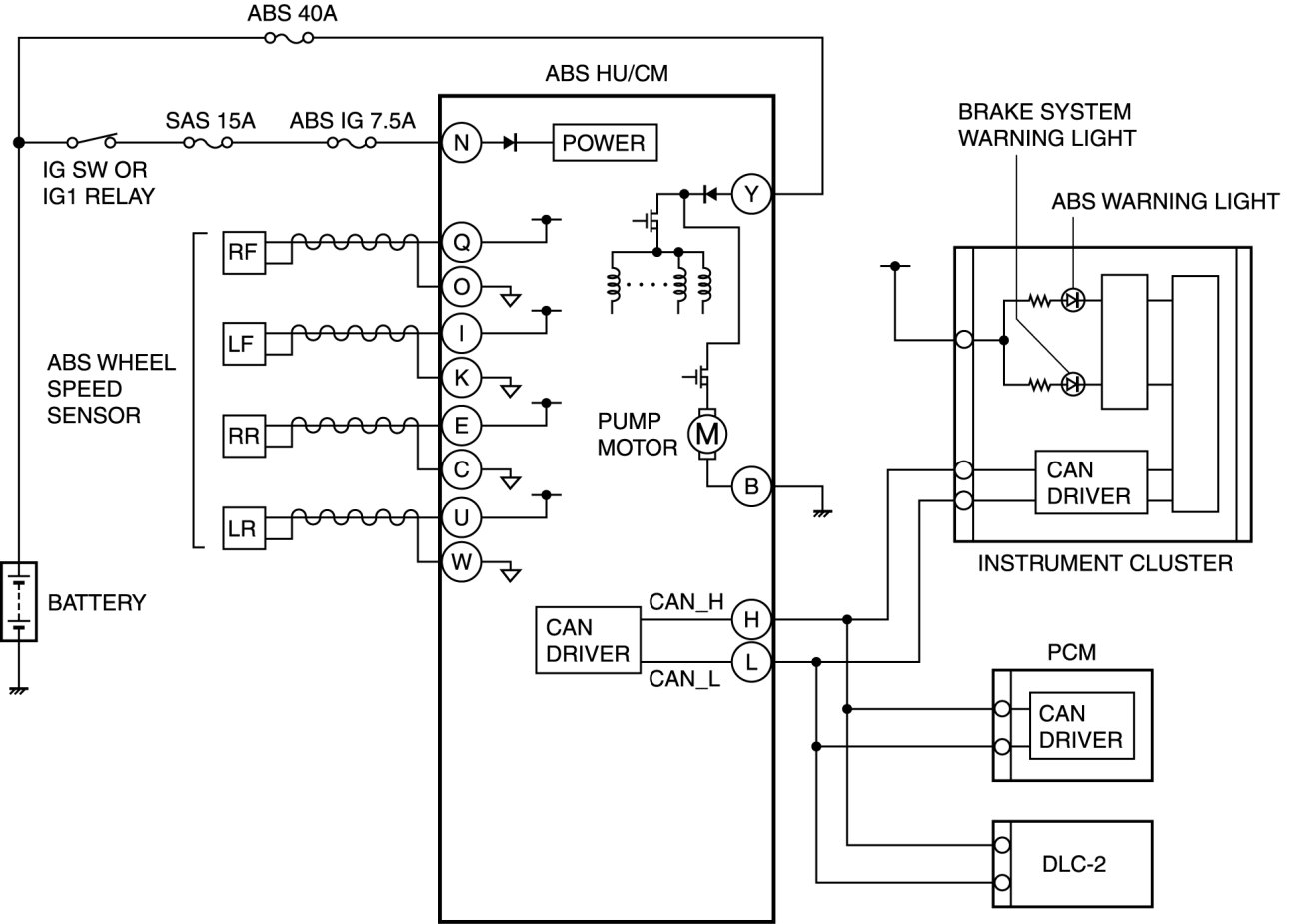

SYSTEM WIRING DIAGRAM [ABS]
