Home >> Mazda >> 2012 >> 3 L4-2.0L (MZR) >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> ABS >> Symptom Troubleshooting - ABS

Symptom Troubleshooting - ABS

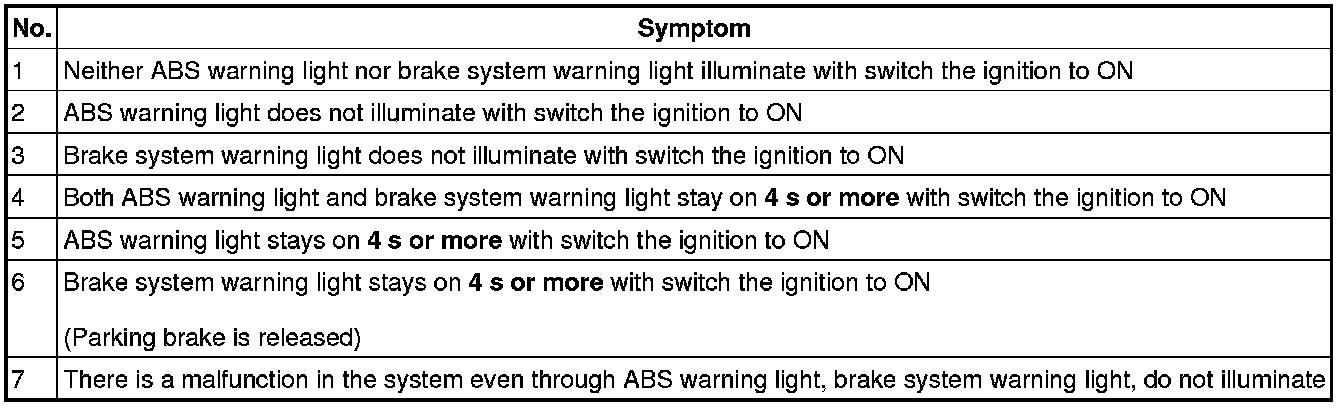

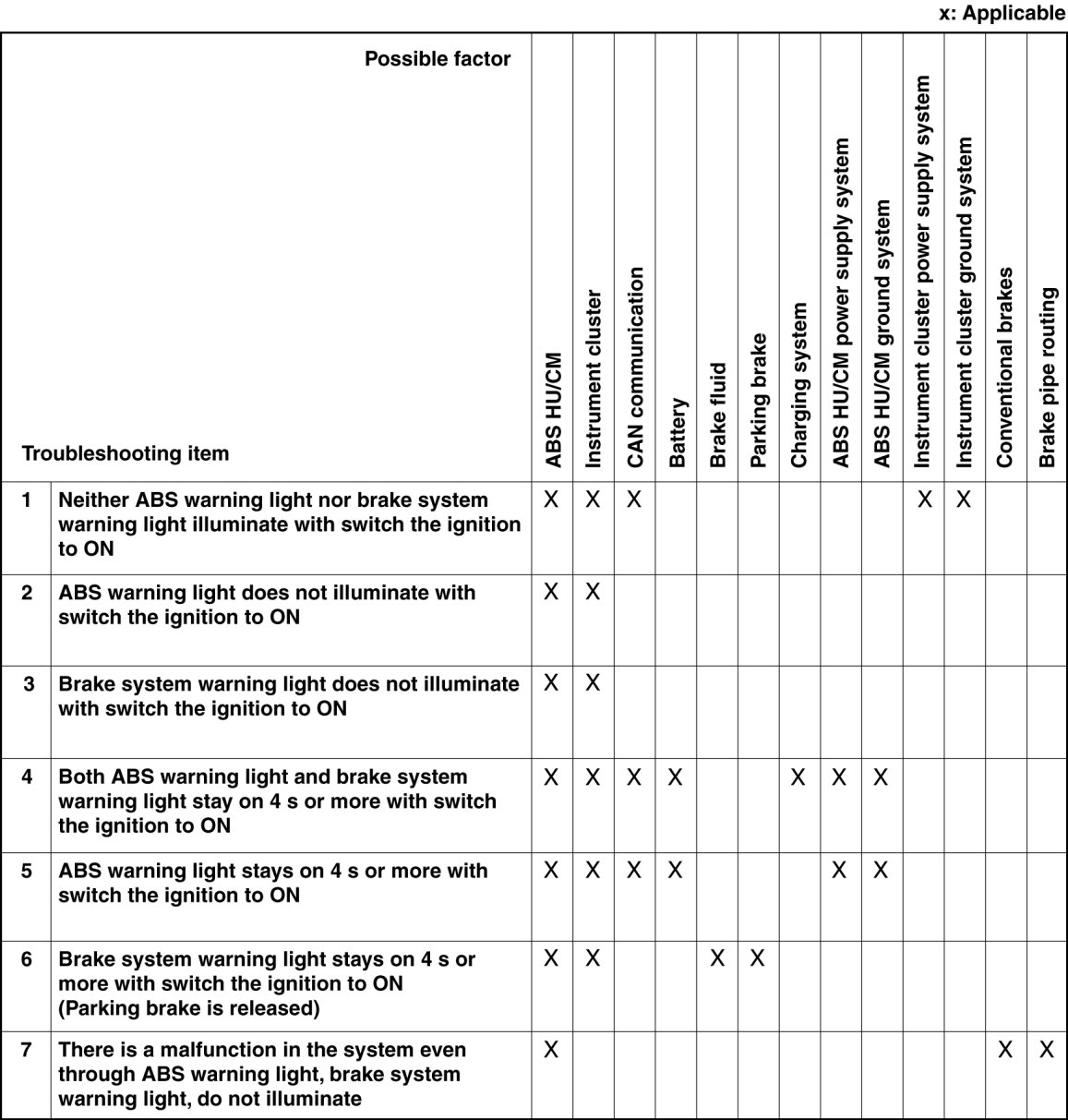

SYMPTOM TROUBLESHOOTING [ABS]

- Verify the symptoms, and perform troubleshooting according to the appropriate number.
