No. 7 There Is Malfunction In The System Even Though ABS Warning And Brake Warning Lights, Do Not Illuminate

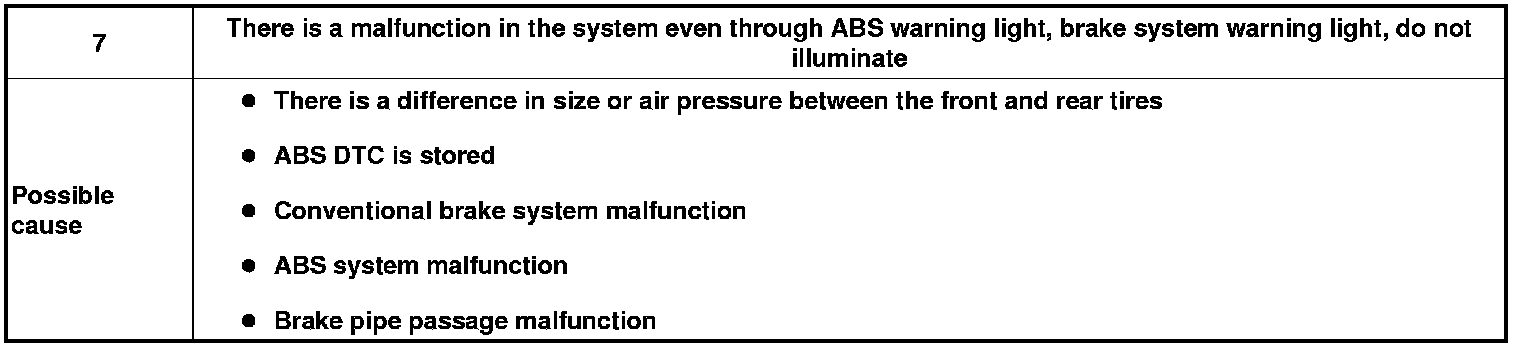

NO.7 THERE IS MALFUNCTION IN THE SYSTEM EVEN THOUGH ABS WARNING LIGHT, BRAKE SYSTEM WARNING LIGHT, DO NOT ILLUMINATE [ABS]

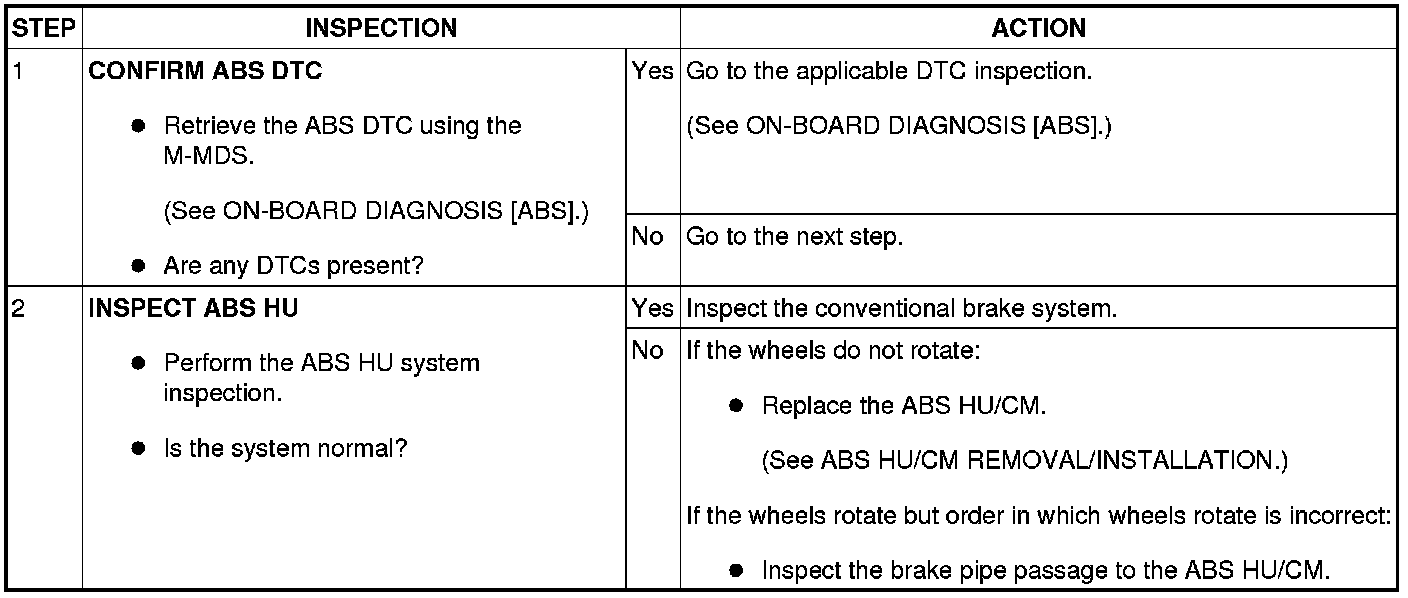

Diagnostic procedure
