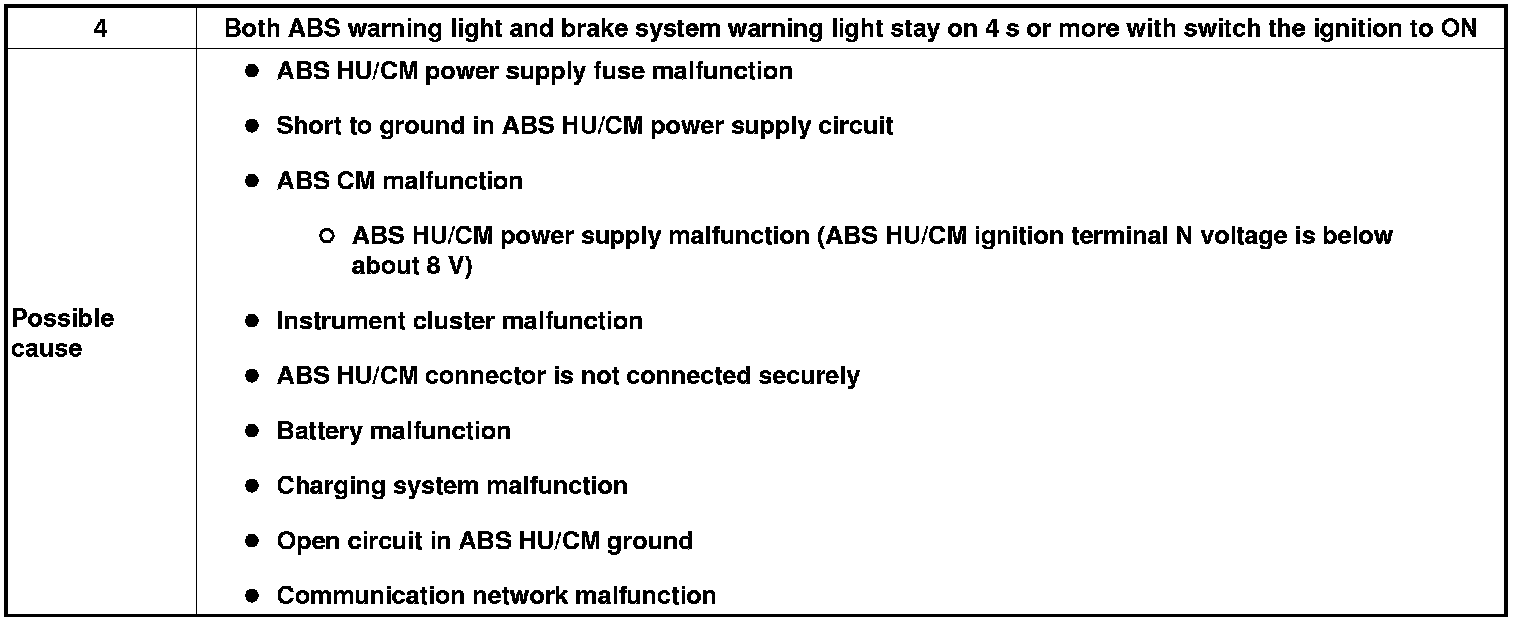

No. 4 Both ABS Warning Light And Brake System Warning Light Stay ON 4 S Or More With Switch The Ignition To ON

NO.4 BOTH ABS WARNING LIGHT AND BRAKE SYSTEM WARNING LIGHT STAY ON 4 S OR MORE WITH SWITCH THE IGNITION TO ON [ABS]

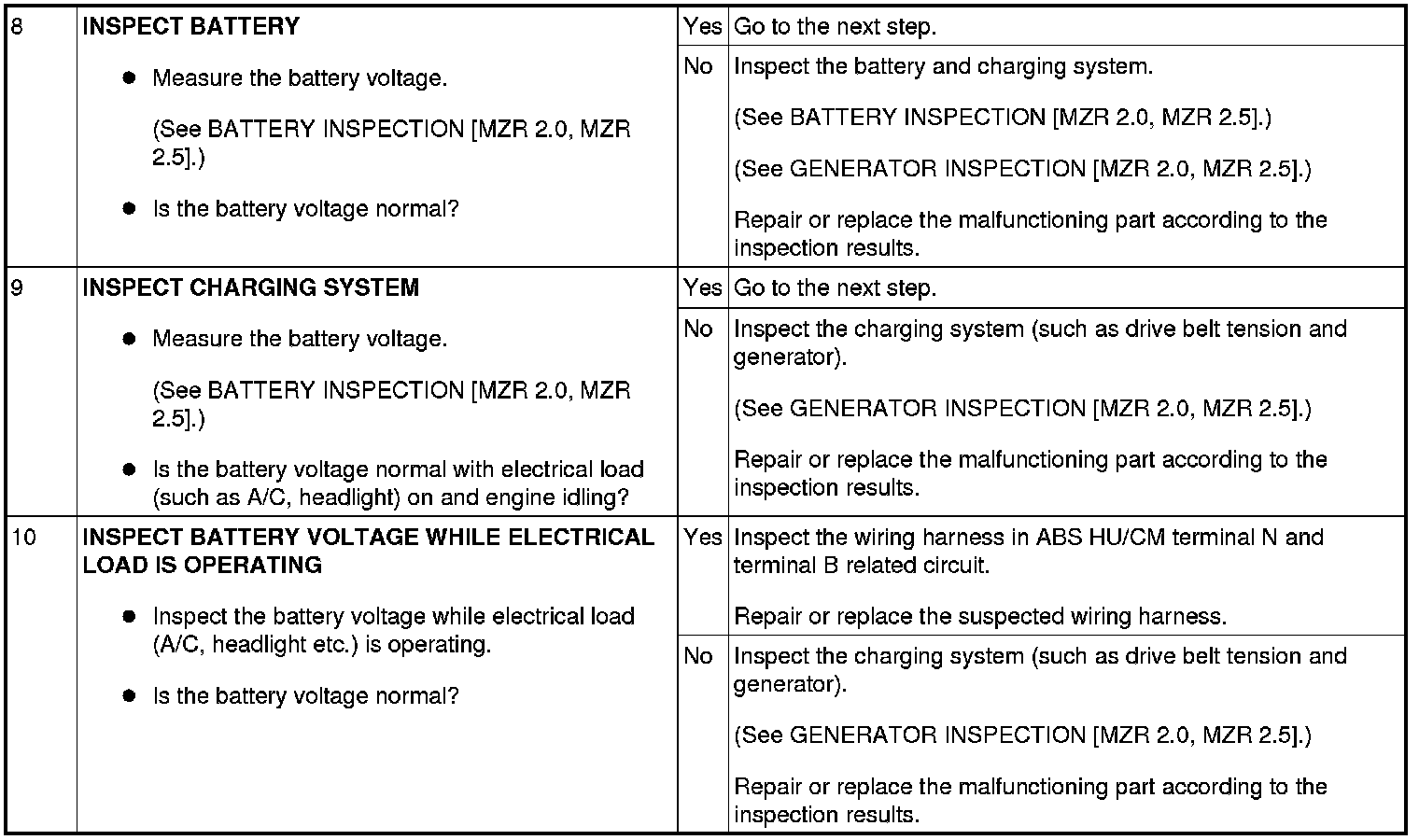

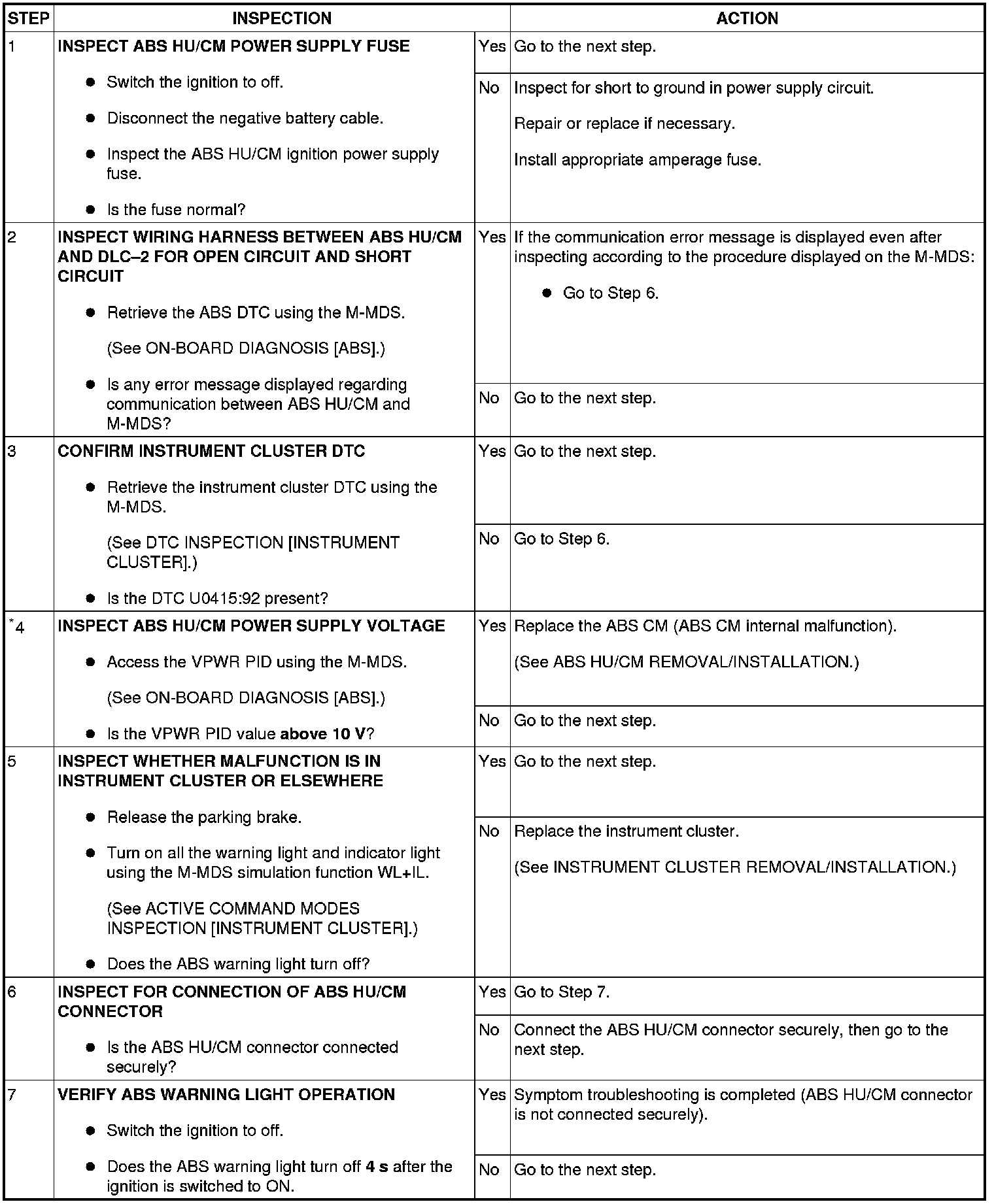

Diagnostic procedure









- When performing an asterisked (*) troubleshooting inspection, slightly shake the wiring harness and connectors while performing the inspection to discover whether poor contact points are the cause of any intermittent malfunction. If there is a problem, verify that the connectors, terminals and wiring harness are connected correctly and undamaged.
