No. 3 Brake System Warning Light Does Not Illuminate With Switch The Ignition To ON

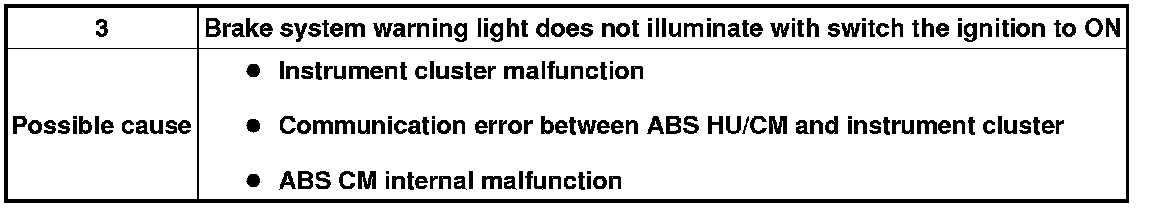

NO.3 BRAKE SYSTEM WARNING LIGHT DOES NOT ILLUMINATE WITH SWITCH THE IGNITION TO ON [ABS]

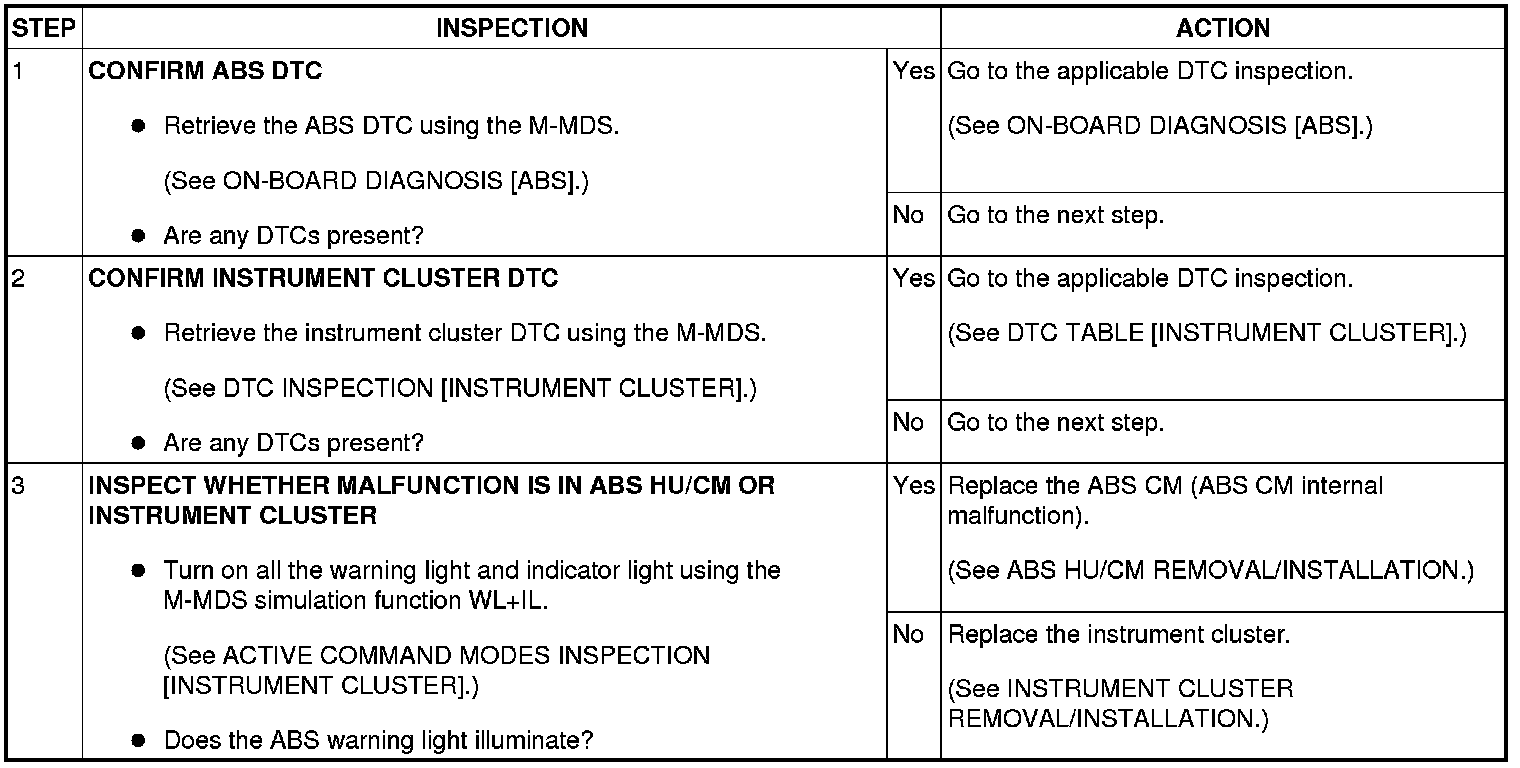

Diagnostic procedure
