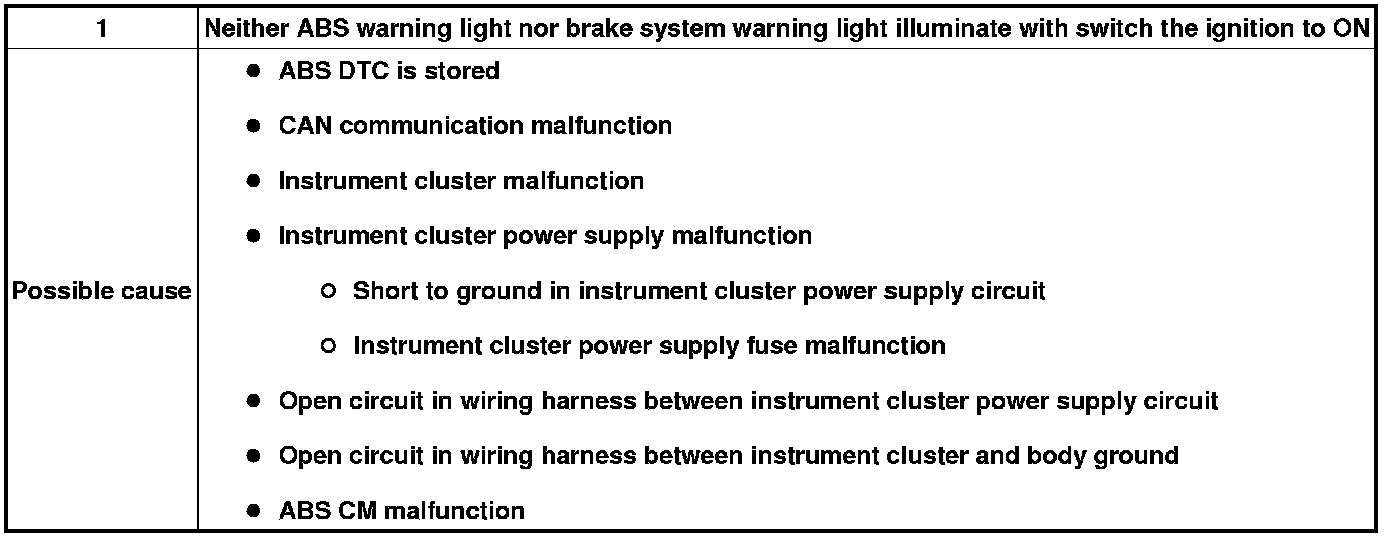

No. 1 Neither ABS Warning Light Nor Brake System Warning Light Illuminate With Switch The Ignition To ON

NO.1 NEITHER ABS WARNING LIGHT NOR BRAKE SYSTEM WARNING LIGHT ILLUMINATE WITH SWITCH THE IGNITION TO ON [ABS]

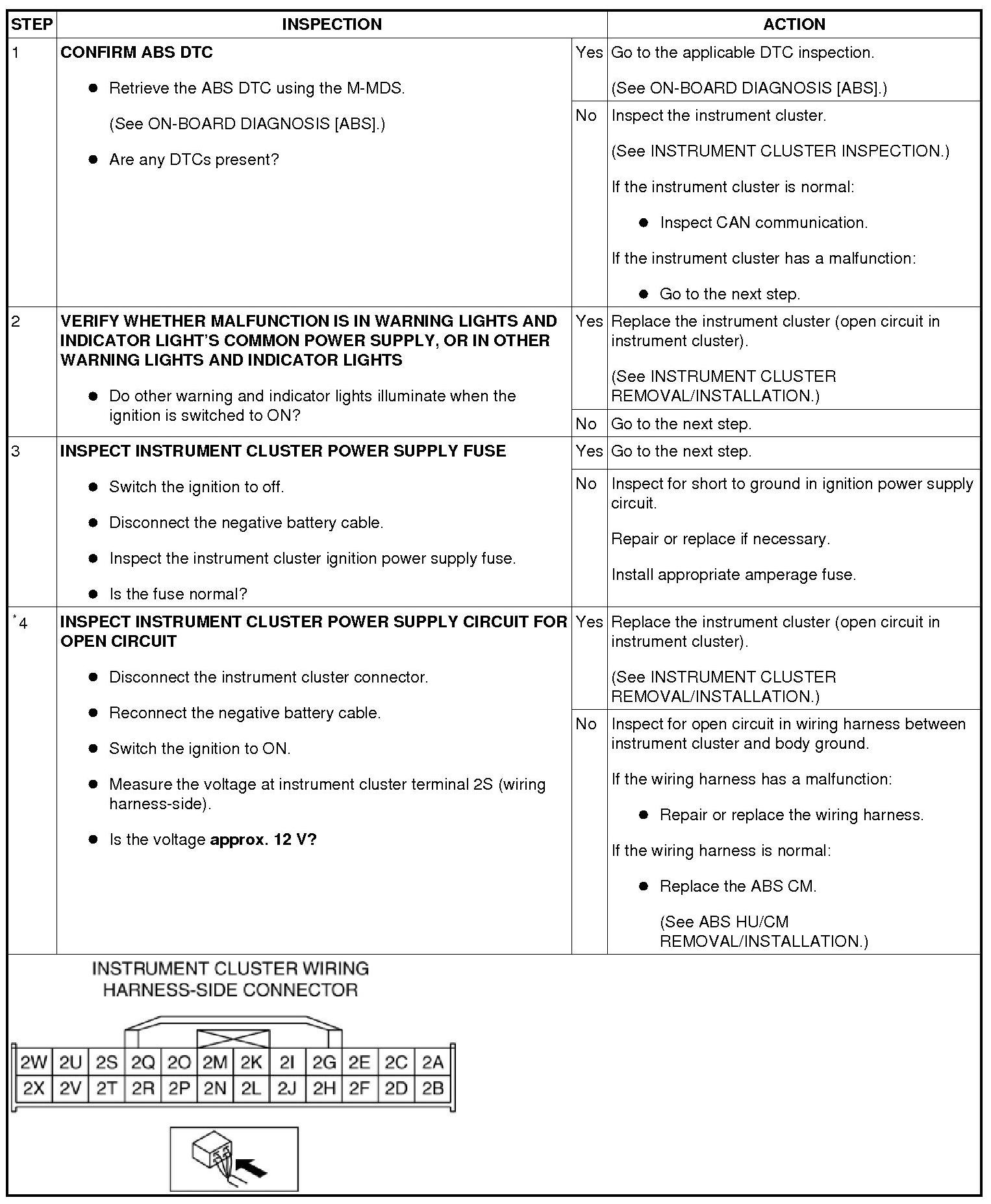

Diagnostic procedure





- When performing an asterisked (*) troubleshooting inspection, slightly shake the wiring harness and connectors while performing the inspection to discover whether poor contact points are the cause of any intermittent malfunction. If there is a problem, verify that the connectors, terminals and wiring harness are connected correctly and undamaged.
